Linear XT-4H User Manual

Xt-1h xt-2h xt-4h, Tended range portable transmitters, Operation instructions

background image

XT-1H
XT-2H
XT-4H

X

TENDED RANGE

PORTABLE
TRANSMITTERS

For Use With Linear’s
XR Series Xtended
Range Receivers

Operation
Instructions

(760) 438-7000 • FAX (760) 438-7043

USA & Canada (800) 421-1587 & (800) 392-0123

Toll Free FAX (800) 468-1340

1.

PRODUCT DESCRIPTION

Linear’s Xtended Range FM transmitters and receivers are designed
for use in various wireless remote control applications. When
activated, the XT-H portable transmitters will send a 2 watt, 27.255
MHz, digital encoded, FSK modulated, signal to their companion
receiver. The receiver will verify the digital code, activate its output,
and trigger the remote device.
These transmitters are available in three models. The Model XT-1H
is a one-button, single channel transmitter. The Model XT-4H is a
four-button, four channel transmitter. The Model XT-2H is a
two-button transmitter with two operating modes. In standard mode,
the XT-2H is a three channel device, pressing the left button sends
channel one; the right button sends channel two; both buttons send
channel three. In lockout mode, the XT-2H will only send a signal (on
the channel selected) when both buttons are pressed. Each
transmission is limited to a maximum of 30 seconds duration.
The XT-H portable transmitters are powered by two 9-volt alkaline
batteries in series, supplying 18 volts. During transmissions, the red
operation indicator will light (visible through a window next to the
antenna). If the transmitter’s battery voltage is low, the indicator will
blink during transmissions. The XT-H transmitters have battery
supervision capabilities. If the combined battery voltage drops below
12 volts, a low battery message will be included with any signal
transmitted, causing the receiver’s low battery output to activate. The
test button next to the indicator sends a test transmission when
pressed.
Two 8-position switches set the unit’s system code. This code must
be matched in the transmitter’s companion receiver. There are
65,536 different system codes possible. The 4-position option switch
selects the transmitter’s channel (XT-1H & XT-2H in lockout mode
only) and the receiver’s bank (for the XR-16 receiver only).
Each model transmitter is provided with a 6-inch “rubber duck”
antenna and a removable belt clip.

2.

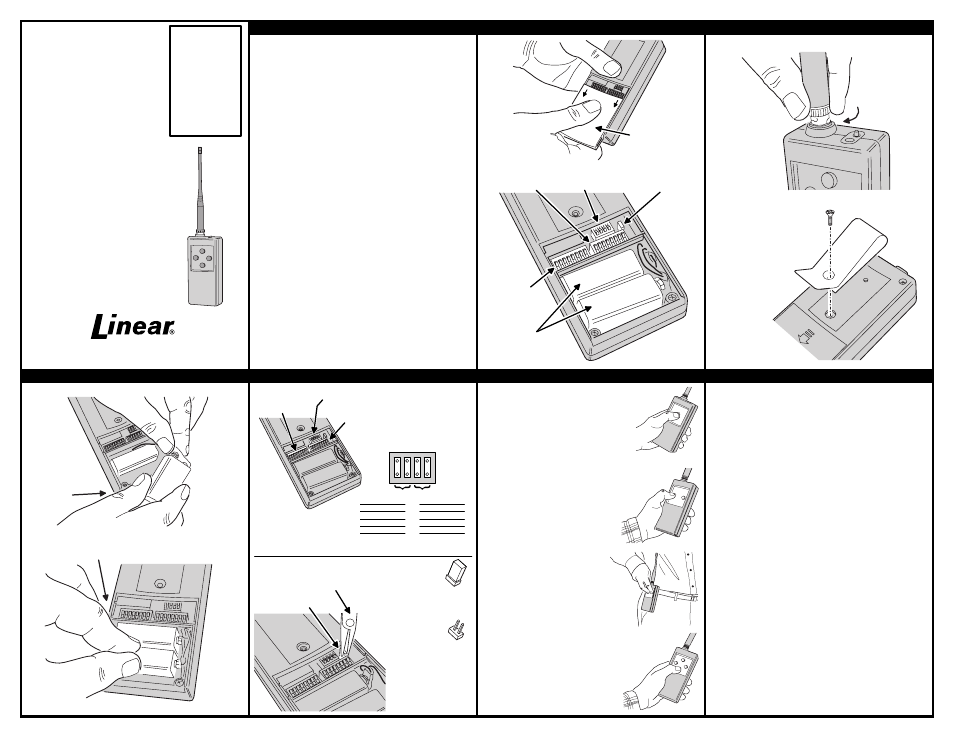

COMPONENT LOCATIONS

3.

INSTALL ANTENNA & BELT CLIP

4.

CONNECT BATTERIES

5.

SET SWITCHES

6.

TEST SYSTEM

LINEAR LIMITED WARRANTY

This Linear product is warranted against defects in material and workmanship
for twelve (12) months. The Warranty Expiration Date is labeled on the product.
This warranty extends only to wholesale customers
who buy direct from Linear or
through Linear’s normal distribution channels. Linear does not warrant this product
to consumers.
Consumers should inquire from their selling dealer as to the nature of
the dealer’s warranty, if any. There are no obligations or liabilities on the part of
Linear Corporation for consequential damages arising out of or in connection
with use or performance of this product or other indirect damages with respect
to loss of property, revenue, or profit, or cost of removal, installation, or
reinstallation.
All implied warranties, including implied warranties for merchantability
and implied warranties for fitness, are valid only until Warranty Expiration Date as
labeled on the product. This Linear Corporation Warranty is in lieu of all other
warranties express or implied.
All products returned for warranty service require a Return Product Authorization
Number (RPA#). Contact Linear Technical Services at 1-800-421-1587 for an RPA#
and other important details.

IMPORTANT !!!

Linear radio controls provide a reliable communications link and fill an important need
in portable wireless signaling. However, there are some limitations which must be
observed.
WARNING: THIS PRODUCT IS NOT TO BE USED IN LIFE SAFETY

APPLICATIONS. FCC Rules allow unlicensed high-power transmissions at
or near the operating frequency of this product which may interfere with,
or even disable, normal operation of this radio device.

For U.S. installations only: The radios are required to comply with FCC Rules

and Regulations as Part 95 Radio Control devices. As such, they have limited
transmitter power and therefore limited range.

A receiver cannot respond to more than one transmitted signal at a time and

may be blocked by radio signals that occur on or near their operating
frequencies, regardless of code settings.

Changes or modifications to the device may void FCC compliance.

Infrequently used radio links should be tested regularly to protect against

undetected interference or fault.

A general knowledge of radio and its vagaries should be gained prior to acting as

a wholesale distributor or dealer, and these facts should be communicated to the
ultimate users.

Copyright © 1997 Linear Corporation

215424 A

XT-4H

WARNING: THIS

PRODUCT SHOULD NOT

BE USED IN LIFE

SAFETY APPLICATIONS.

FCC Rules allow

unlicensed high-power

transmissions at or near

the operating frequency

of this product which
may interfere with, or

even disable, normal

operation of this radio

device.

SLIDE BATTERY
DOOR DOWN TO
EXPOSE BATTERY
COMPARTMENT

SYSTEM

SWITCH "A"

SYSTEM

SWITCH "B"

OPTION
SWITCH

MODE

JUMPER

9-VOLT

ALKALINE

BATTERIES

CONNECT
ANTENNA TO
TRANSMITTER

TWIST TO LOCK
CONNECTOR

IF REQUIRED,
ATTACH THE METAL
BELT CLIP TO THE
REAR OF THE UNIT
WITH THE SCREW
SUPPLIED

CONNECT THE TWO
9-VOLT ALKALINE
BATTERIES

TUCK BATTERIES
INTO BATTERY COMPARTMENT

SYSTEM CODE

SWITCH "A"

SYSTEM CODE

SWITCH "B"

OPTION
SWITCH

MODE JUMPER

SET SYSTEM CODE
SWITCHES "A" & "B"
TO MATCH SYSTEM
CODE SWITCHES "A" & "B"
IN THE RECEIVER

1

2

3

4

OPTION SWITCH

BANK

CHANNEL

SET OPTION SWITCH
TO SELECT RECEIVER'S
BANK AND CHANNEL (DON'T
SET CHANNEL ON XT-4H OR XT-2H IN STANDARD MODE, THE
FRONT BUTTONS CONTROL THE TRANSMITTER'S CHANNEL)

ON OFF

OFF OFF

OFF ON

ON

ON

3

4

2

1

3
4

CH#

ON OFF

OFF OFF

OFF ON

ON

ON

1

2

2

1

3
4

BANK#

MODEL XT-2H ONLY

MODE JUMPER CAN BE REMOVED TO
SELECT TWO-BUTTON LOCKOUT MODE

JUMPER ON

JUMPER OFF

"STANDARD" MODE
LEFT BUTTON = CH1
RIGHT BUTTON = CH2
BOTH BUTTONS = CH3

"LOCKOUT" MODE
LEFT BUTTON = NO SIGNAL
RIGHT BUTTON = NO SIGNAL
BOTH BUTTONS = CHANNEL
SET ON OPTION SWITCH

APPLY PROPER
BUTTON LABEL
TO MATCH MODE
CHOSEN

NEEDLENOSE
PLIERS

BEFORE TESTING,
REPLACE BATTERY DOOR

MODEL XT-1H

PRESS BUTTON, VERIFY THAT
THE PROGRAMMED CHANNEL
IN THE RECEIVER ACTIVATES.

MODEL XT-2H
(IN STANDARD MODE)

MODEL XT-2H
(IN LOCKOUT MODE)

MODEL XT-4H

PRESS LEFT BUTTON, RIGHT
BUTTON, THEN BOTH BUTTONS.
VERIFY THAT RECEIVER CHANNELS
1, 2 AND 3 ACTIVATE.

PRESS BOTH TRANSMITTER BUTTONS,
VERIFY THAT THE PROGRAMMED
CHANNEL IN THE RECEIVER ACTIVATES.
PRESS EITHER BUTTON, VERIFY THAT
NO SIGNAL IS SENT.

PRESS EACH TRANSMITTER BUTTON,
VERIFY THAT THE CORRECT CHANNEL
IN THE RECEIVER ACTIVATES
FOR EACH BUTTON.
