EXTERNAL
EQ
UIPMENT
SETUP
20
EXTERNAL EQUIPMENT SETUP
RS-232C IN
(SERVICE ONLY)
A
(R
RGB(PC) IN
SERVICE
ONLY
HDMI/DVI IN
HDMI-DTV OUTPUT

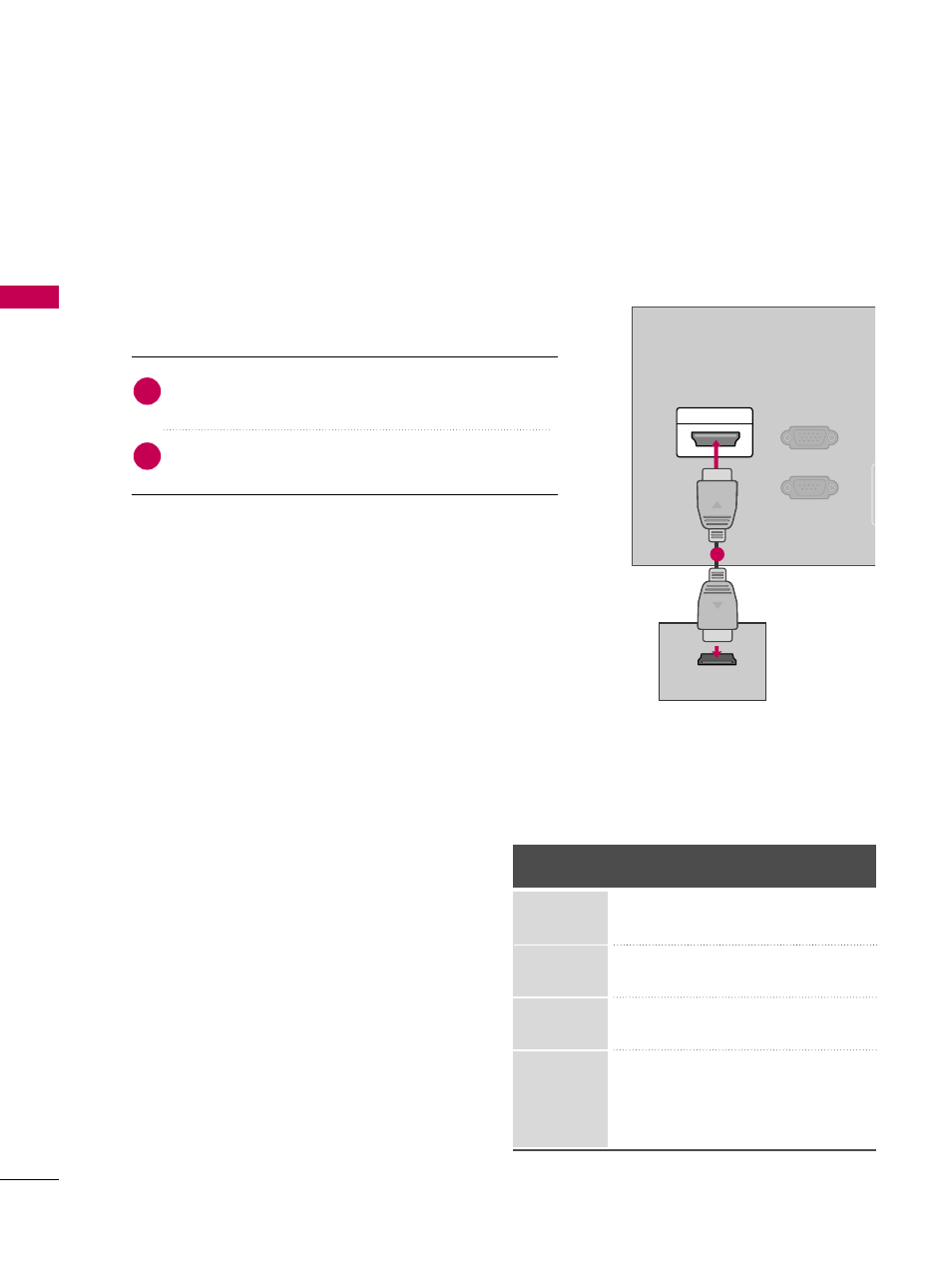

HDMI Connection
Connect the digital set-top box to H HD DM MII//D DV VII IIN N
jack on the TV.
No separate audio connection is necessary.
HDMI supports both audio and video.
1. How to connect
2. How to use
■ Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
■ Select the H HD DM MII input source on the TV using the IIN NPPU UT T
button on the remote control.
2
1
1
HDMI-DTV
Horizontal Vertical
Frequency(KHz) Frequency(Hz)
31.47 59.94
31.50 60.00
44.96 59.94
45.00 60.00
33.72 59.94
33.75 60.00
27.00 24.00
33.75 30.00
67.43 59.94
67.50 60.00
Resolution
720x480p
1280x720p
1920x1080i
1920x1080p
