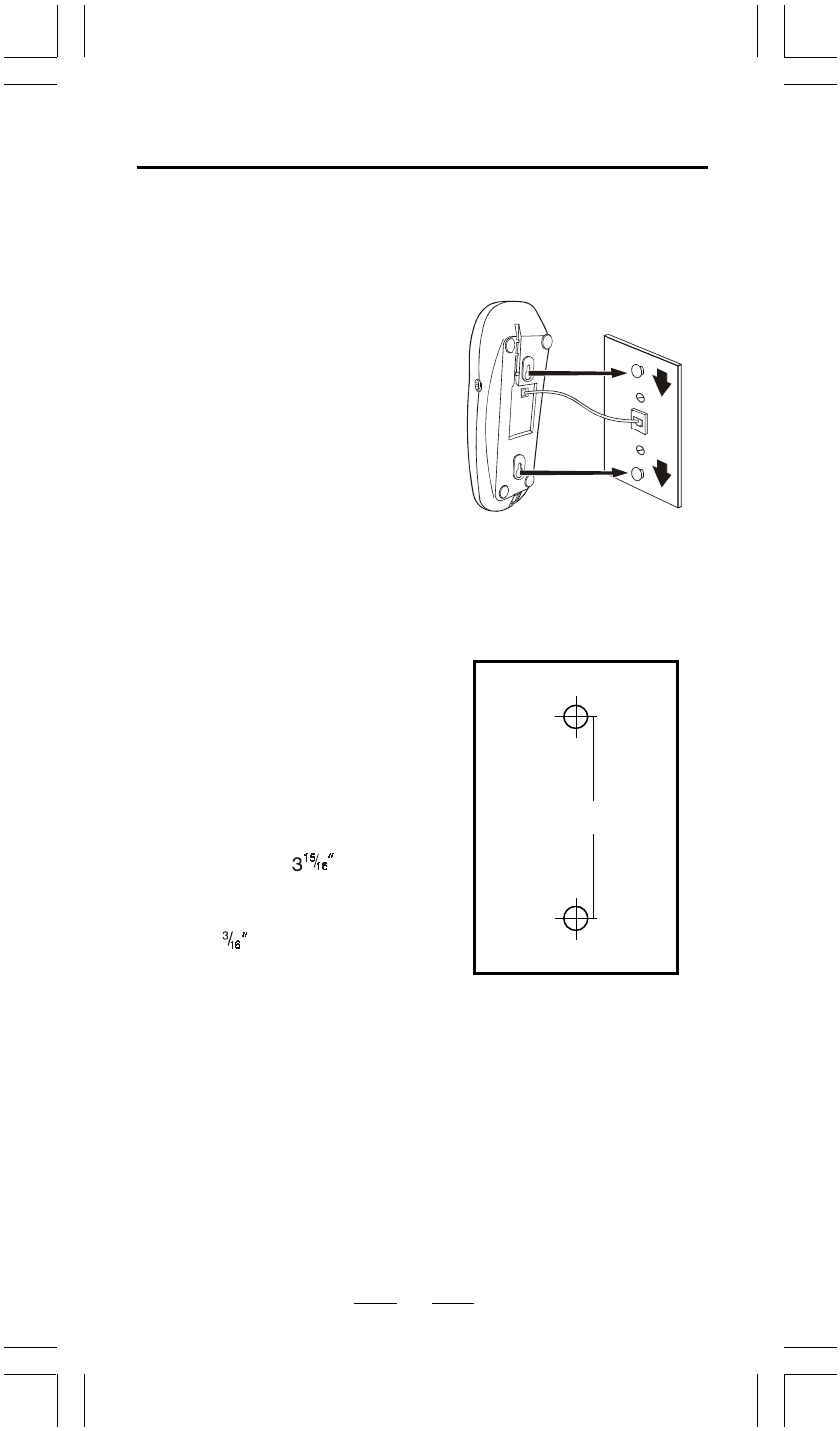

WALL MOUNTING
IMPORTANT
Before mounting the phone onto the wall, select a wall area with
sufficient strength. If mounting on the wallboard or in an area of
questionable strength, locate a stud for maximum support of your
telephone.
4. Connect the straight long cord to the phone and jack.
5. Place the TELEPHONE BASE on the 2 mounting screws and
gently push down to lock into place.
13
This phone can be mounted on a wall phone plate. If you do not
have a modular wall phone plate installed, please consult with your
phone company or installer to get one, or see the following for
installation without a wall plate.
WALL MOUNTING WITHOUT A MODULAR
WALL PHONE PLATE
Make sure
the space
between
holes is
Drill one hole
Drill one hole
100 mm
Follow these instructions to mount
the phone on the wall without a
wall plate:
1. Locate a wall stud. If it is
possible to utilize a wall stud
for mounting, dry wall expanders
or a similar type fastener is
recommended. Consult your
local hardware store for details.
2. Drill 2 holes (100 mm)
apart.
3. Put a screw into each hole and
leave (5mm) of the head
exposed to mount the phone
(screws are not included).
1. Use the SHORT STRAIGHT
WALL CORD, and plug one end
into the rear of the phone.
2. Plug the other end into the
WALL JACK.
3. Put the phone over the WALL
PLATE, make sure both posts fit
into slots on the back of the
phone. Then slide down to lock
the phone into the WALL
PLATE.
