eak Pilates – Deluxe & Reformer Models
Parts Manual
6

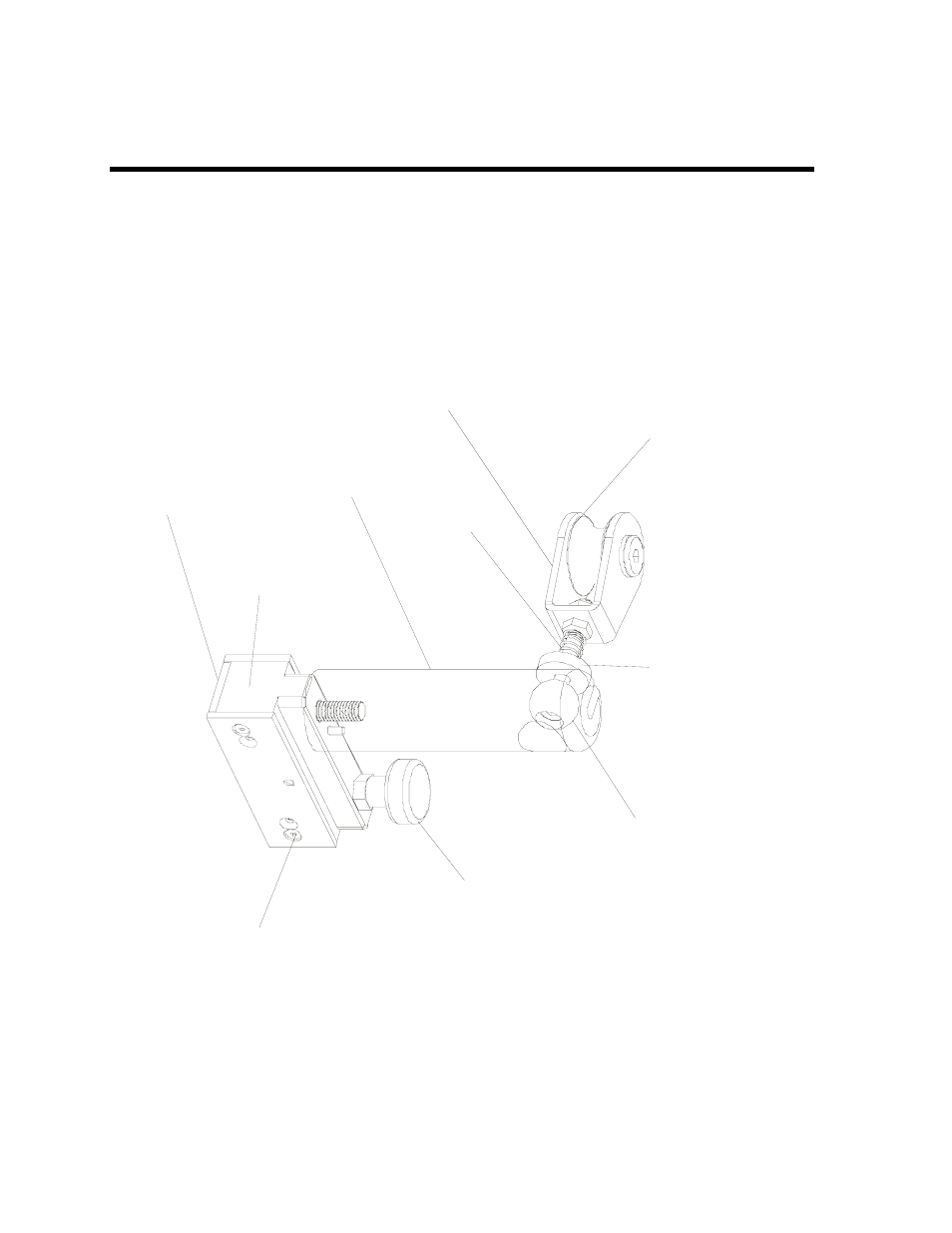

SWIVEL PULLEY ASSEMBLY
Nylon Sleeve
804-113
Axle Screw-F
804-118
Axle Screw-M
804-119
Flat Washer(2) M8
8.4 ID X 16 OD
804-116
Plastic Washer(2)
.375 ID X .56 OD
804-117
Swivel Handle
804-109
Locknut M6
804-111
Jam Nut M6
804-120
M6 X 50 LSHCS
804-123
White Teflon
Washer
804-114
Flat Head
Set Screw(7)
M3X6 Long
804-106
Pole Set
Handle Block
804-101
Pole Set Handle
804-102
Back Slide Bearing
804-103
Quick Release
Pull-Pin
804-121
Pulley Bracket Yoke
804-112
Spring
804-115
