eak Pilates – Deluxe & Reformer Models
Parts Manual
8

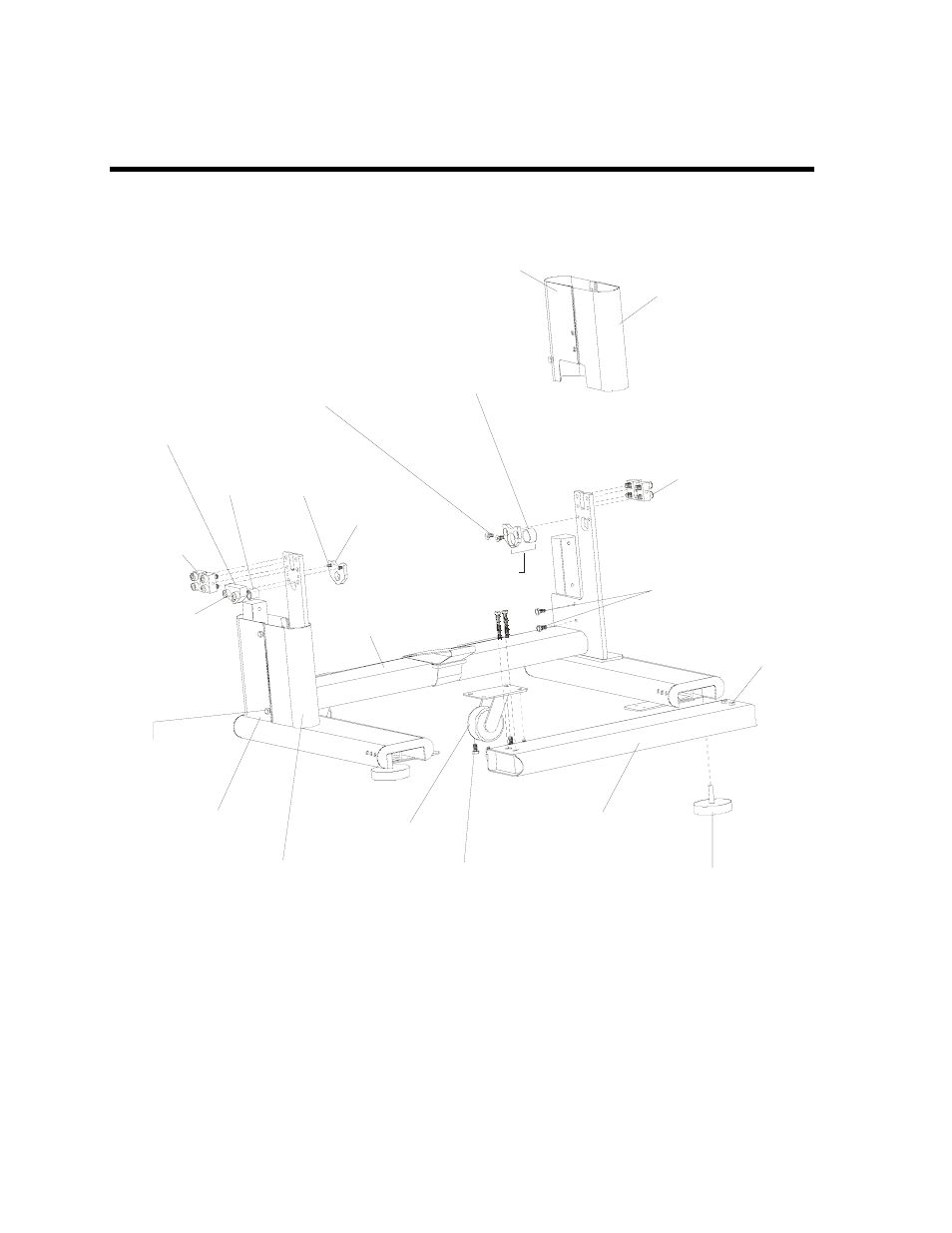

HEAD END FRAME COMPONENTS
Flat Head
Cap Screw(2)
M4X12
802-024
Bushing Plate
802-099-1
Locating
Lock Block(2)
802-115
Bushing Block
802-098
Bearing
802-026
Hex Head
Cap Screw(4)
801-071
Should Head
Cap Screw(8)
802-020
Caster(2)
802-014
Hex Head
Cap Screw(8)
802-025
Main Support
Weldment
802-100
Inside Left
Cover
802-010
Outside Left
Cover
802-011
Outside Right
Cover
802-005
Inside Right
Cover
802-006
Weldment
802-300
Leveler(2)
802-003
Hex Head
Cap Screw(4)
802-021
Shoulder Head
Cap Screw(2)
M8X20
802-023
Hex Head
Cap Screw(6)
M6X8
802-020
Bearing
802-027
Flat Head
Cap Screw(2)
M6X12
802-089
Bearing Assy
802-090
