eak Pilates – Deluxe & Reformer Models
Parts Manual

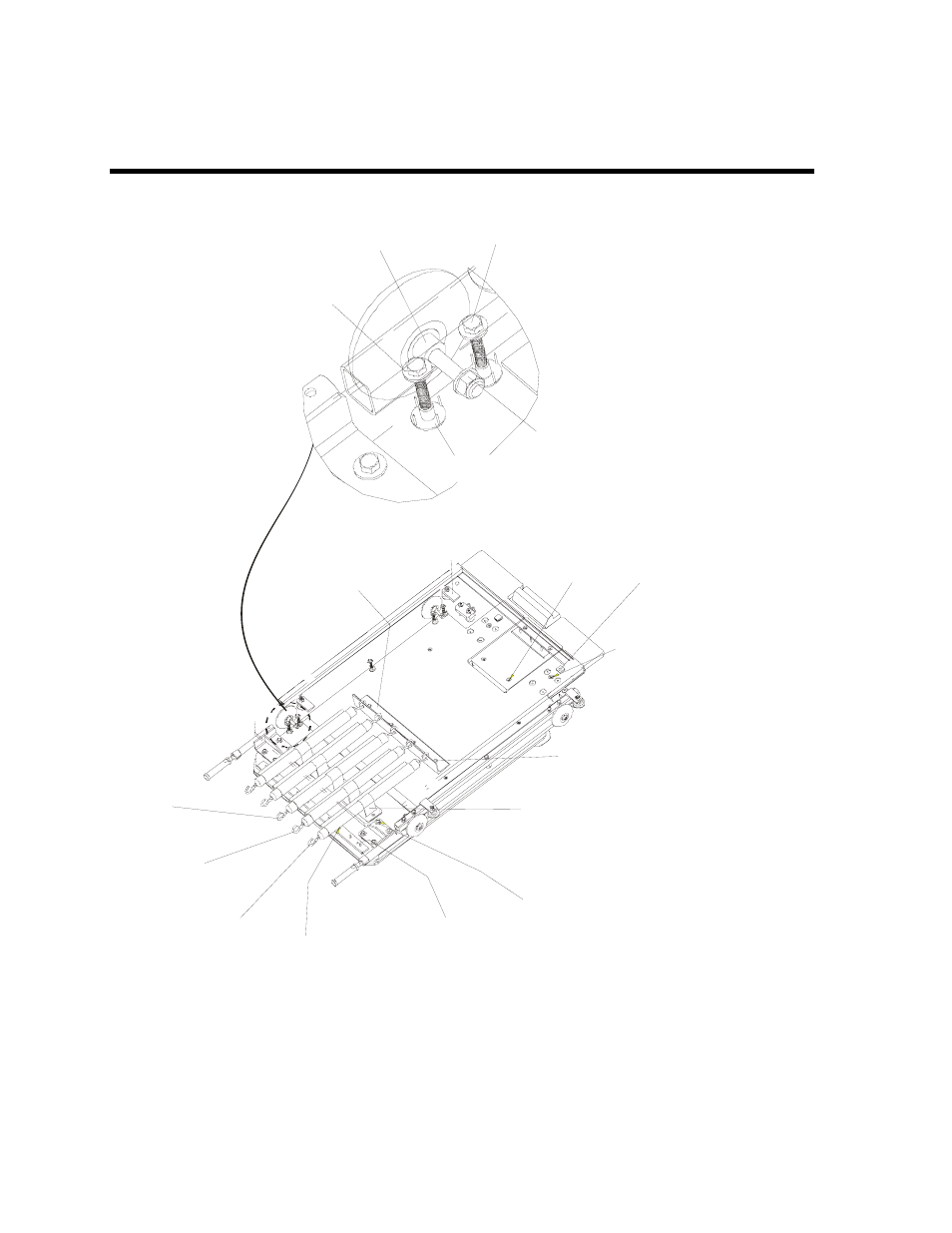

CARRIAGE ASSEMBLY – BOTTOM VIEW

Hex Head

Cap Screw(10)

M6X40
805-036

Unthreaded

Spacer(4)

805-025

M8 Washer(10)

803-504

M8 Locknut(8)

805-012

M8 Washer(2)
805-042

M6 T-Nut(30)

805-023

Flat Head Phillips

Screw(20)

6X1-1/2 in Long
805-011

Double Hook

Spring

805-026-1

Double Hook

Spring 805-026-2

Double Hook

Spring 805-026-3

M6 Washer(8)

805-055

Hex Head Cap
Screw((8) M6X20

805-056

Spring Strap Assembly

840-050

Screw
805-019

Board Hinge

805-002

Hex Head

Cap Screw(4)

M6X20
805-032

Flat Head

Phillips Screw(2)

M8X40
805-034

Velcro Loop(2)

805-043

Velcro Hook(2)
803-008

Flat Head

Phillips Screw(6)

M5X25
805-047

Carriage Weldment

Frame 805-200

Carriage Angle

Spring Mount

805-007
