15
LITTLE
WONDER
BLOWER
15
LITTLE
WONDER
BLOWER
ITEM PART NO. DESCRIPTION QTY ITEM PART NO. DESCRIPTION QTY

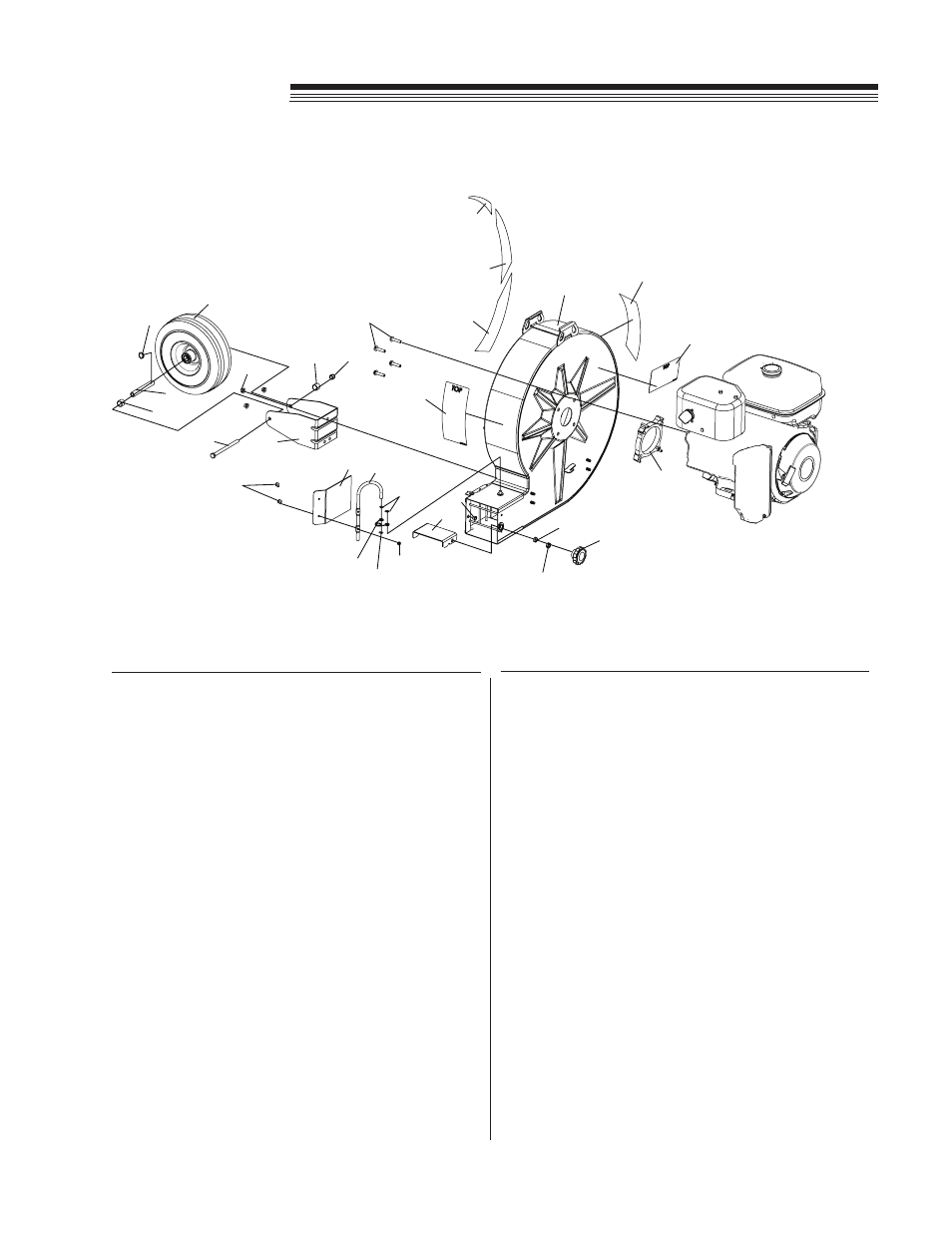

FIGURE 3
HOUSING ASSEMBLY
18
15 20
5
1
19
20
16 17
12
13
14
8
4
7
8
6
11
27
28
29
3
25
26
23
24
9
2
21
22
1 64141-6 NUT 5/16-18 3
2 4166329 S-HOUSING LG BLOWER 1
(USED ON 91270 MODEL)
4166328 S-HOUSING SM BLOWER
(USED ON 9160 & 9170 MODELS)
3 4166187 LABEL-BLOWER SIDE 1
4 4165975 LABEL-WARNING/DANGER 1
5 910517 BLT-WLF 5/16-24 X 1-3/8 4
6 64151-31 LOCKNUT-10-32 2
7 910130 SPRING-DEFLECTOR 1
8 8-18 RING-RETAINING 3
9 4165977 LABEL-READ MANUAL 1
10* 4166188 LABEL-LB160H 9160 MODEL 1
4166189 LABEL-LB170 9170 MODEL
4166474 LABEL-LB270SC 91270 MODEL
11 4166476.17 DEFLECTOR-SIDE 1
(USED ON 91270 MODEL)
4166009.17 DEFLECTOR-SIDE SM
(USED ON 9160 & 9170 MODELS)
12 64197-008 BLT-TDFM 10-32X1/2 2
13 910123.10 DEFLECTOR-INT 1
(USED ON 91270 MODEL)
910106.10 DEFLECTOR-INT, SM
(USED ON 9160 & 9170)
14 910132 HANDLE-DEFLECTOR 1
15 64229-03 NUT-NYLON LOCK 3/8-16 1
16 64123-252 BLT-HEX 3/8-16 X 5-1/2 1
17 4165178.7 BRKT-FRT WHL 1
18 4164205 WHEEL-PNEUMATIC 1
19 900404 SLEEVE-WHEEL 1
20 900405 SPACER-FRT WHL BRKT 2
21 4164204-01 BRG-PNEUMATIC WHL 2
22 38304-06 BEARING-FL PLASTIC .31 ID 1
23 4166181 SPACER-ENG HOUSING 1
(USED ON 91270 MODEL)
24 910131 KNOB-SM BLOWER 1
(USED ON 9160 & 9170 MODELS)
4166654 KNOB-LG BLOWER
(USED ON 91270 MODEL)
25 64002-04 LOCKWASHER EXT. 5/16 1
(USED ON 9160 & 9170 MODELS)
26 4166324 BEARING-SLEEVE 1
(USED ON 91270 MODEL)
27 4166184 LABEL-SCROLL UPPER 1
28 4166185 LABEL-SCROLL MIDDLE 1
29 4166186 LABEL-SCROLL LOWER 1
*NOT ILLUSTRATED
