Little wonder blower, Intake guard assy, Figure 1 – Little Wonder OPTIMAX 91270-03-01 User Manual
Page 13
13
LITTLE
WONDER
BLOWER
13
LITTLE
WONDER
BLOWER
ITEM
PART
NO.
DESCRIPTION
QTY
1
4166183
LABEL-INTAKE GUARD
1
2
4165218.7
ASSY-INTAKE GUARD
1
3
64123-54
BLT-HEX 5/16-18 X .75
4
4
64268-02
NUT-FL NYLON LOCK 5/16-18
6
5
64229-02
NUT 5/16-18
4
6
4165926.10
INTAKE PANEL-CENTER
1
7
64123-253
BLT-HEX 7/16-20 x 1-3/4 GR8
1
(USED ON 91270 MODELS)
64123-254
BLT-HEX 5/16-24 x 1-3/4 GR8
(USED ON 9160 AND 9170 MODELS)
8
4166730
WLDMT-FAN 7 BLADE 2.75
1
(USED ON 91270 MODELS)
4166729
WLDMT-FAN, 7BL 1.50
(USED ON 9160 AND 9170 MODELS)
9
64164-13
KEY 1/4 X 2 SQ
1
10
4163424
PLUG-FAN 3/8 X 1
1
(USED ON 91270 MODELS)
4165139
PLUG-FAN HUB 5/16 X 3/4
(USED ON 9160 AND 9170 MODELS)
11
4165169
SPACER-FAN .53
1
(USED ON 91270 MODELS)

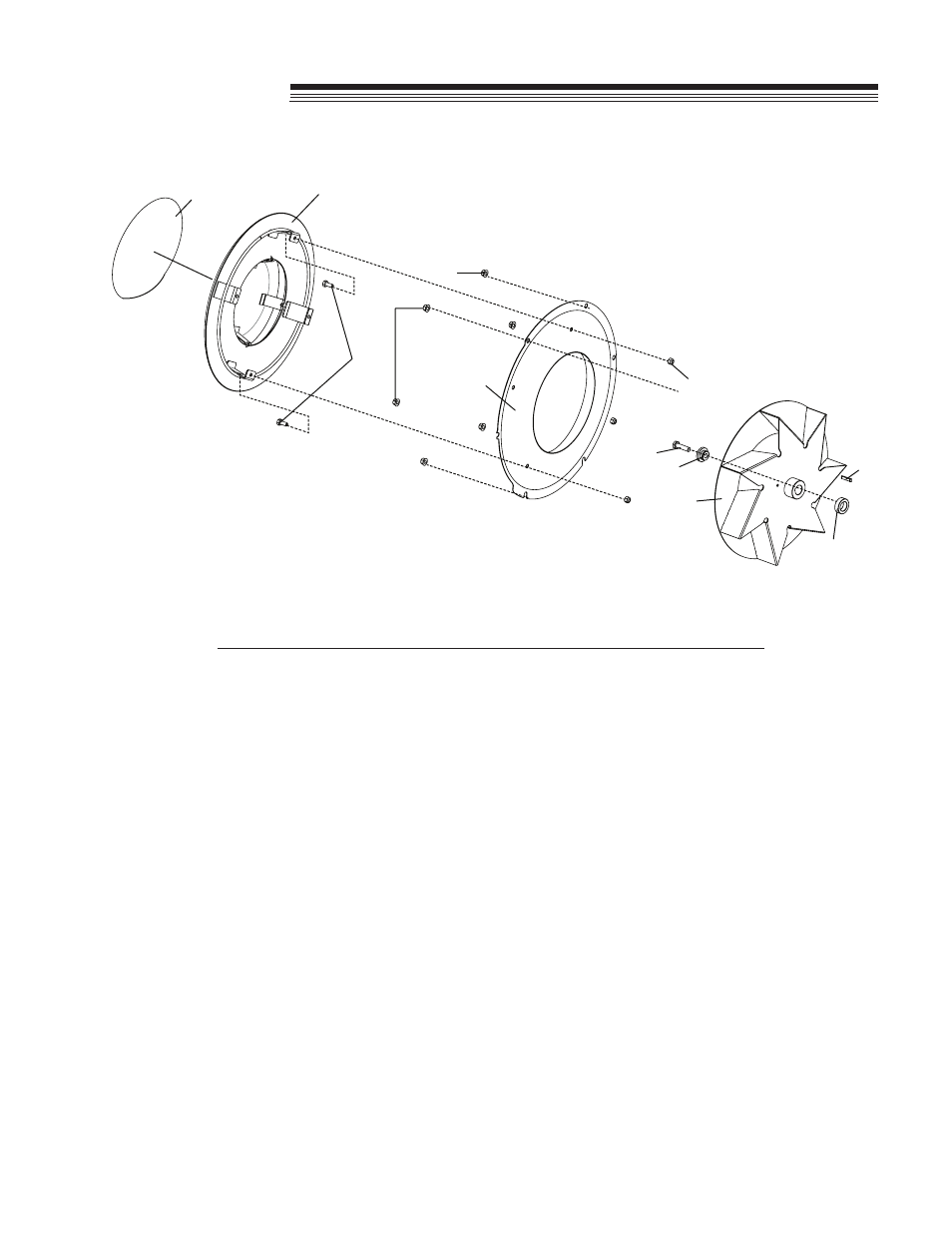

FIGURE 1
INTAKE GUARD ASSY
1
2
3
5
6
8
10
7
11
4
4
9
