Page 77
LN-15
F-39
F-39
TROUBLESHOOTING AND REPAIR
COVER AND SPINDLE MOUNT
REMOVAL AND REPLACEMENT PROCEDURE (Continued)
REPLACEMENT PROCEDURE
1. Replace all leads to switches and
solenoid.
2. Maneuver assembly into case.
3. Connect gas hose to conductor block.
4. Replace five mounting screws.
5. Replace bolt into top of case.
6. Replace the electrode cable into the
cord grip. Replace and tighten the nut.

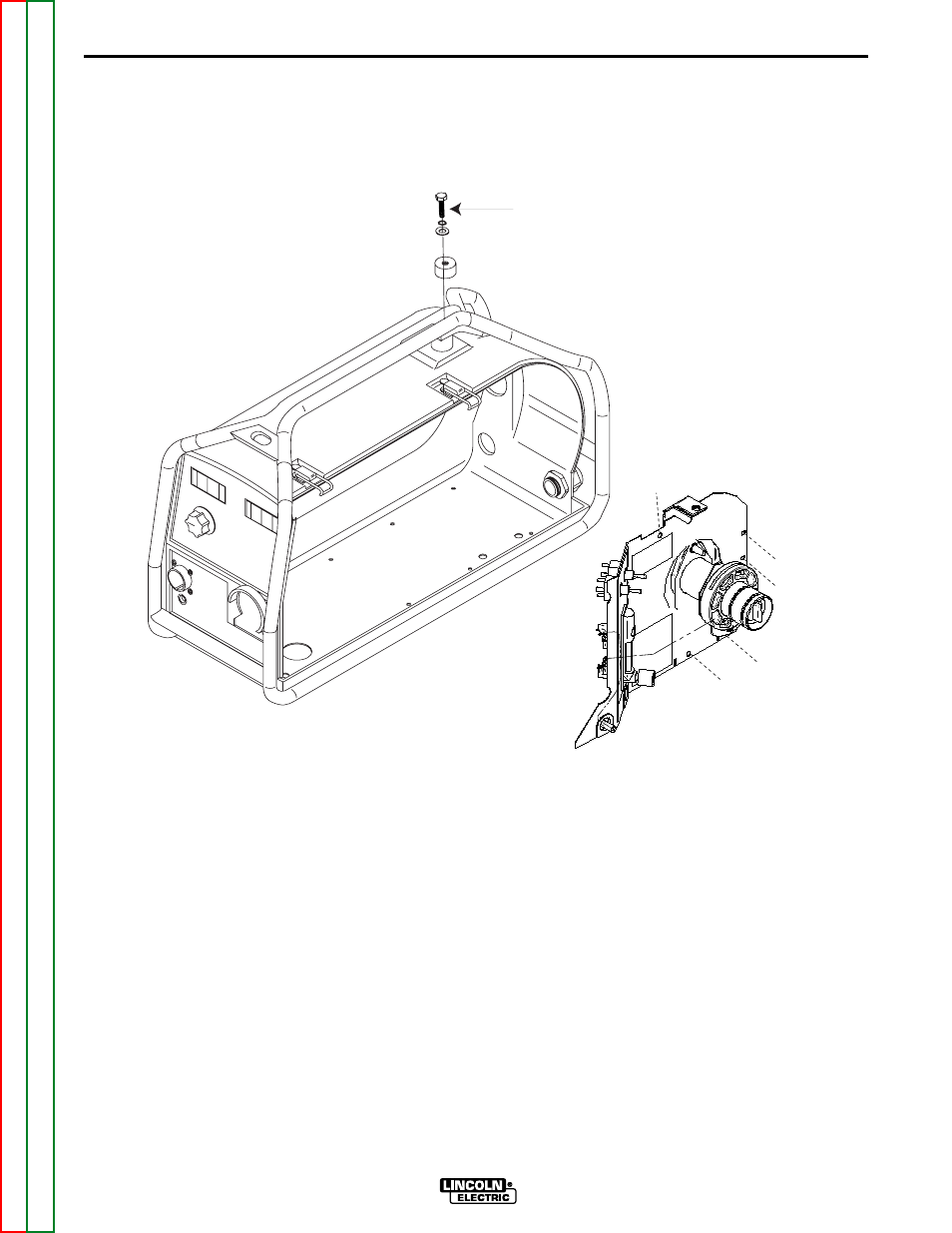

Figure F.15 - COVER AND SPINDLE MOUNT SCREW LOCATION
1/2" Bolt
Screw
Screw
Screw
Screw
Screw
