EXTERNAL EQUIPMENT SETUP

VCR SETUP

Antenna Connection

■

To avoid picture noise (interference), leave an adequate distance between the VCR and TV. If the 4:3
picture format is used; the fixed images on the sides of the screen may remain visible on the screen. This
phenomenon is common to all TVs and is not covered by warranty.

S-VIDEO

VIDEO

OUTPUT

SWITCH

ANT IN

ANT OUT

ANTENNA IN

M.P.I.

( )

Wall Jack

Antenna

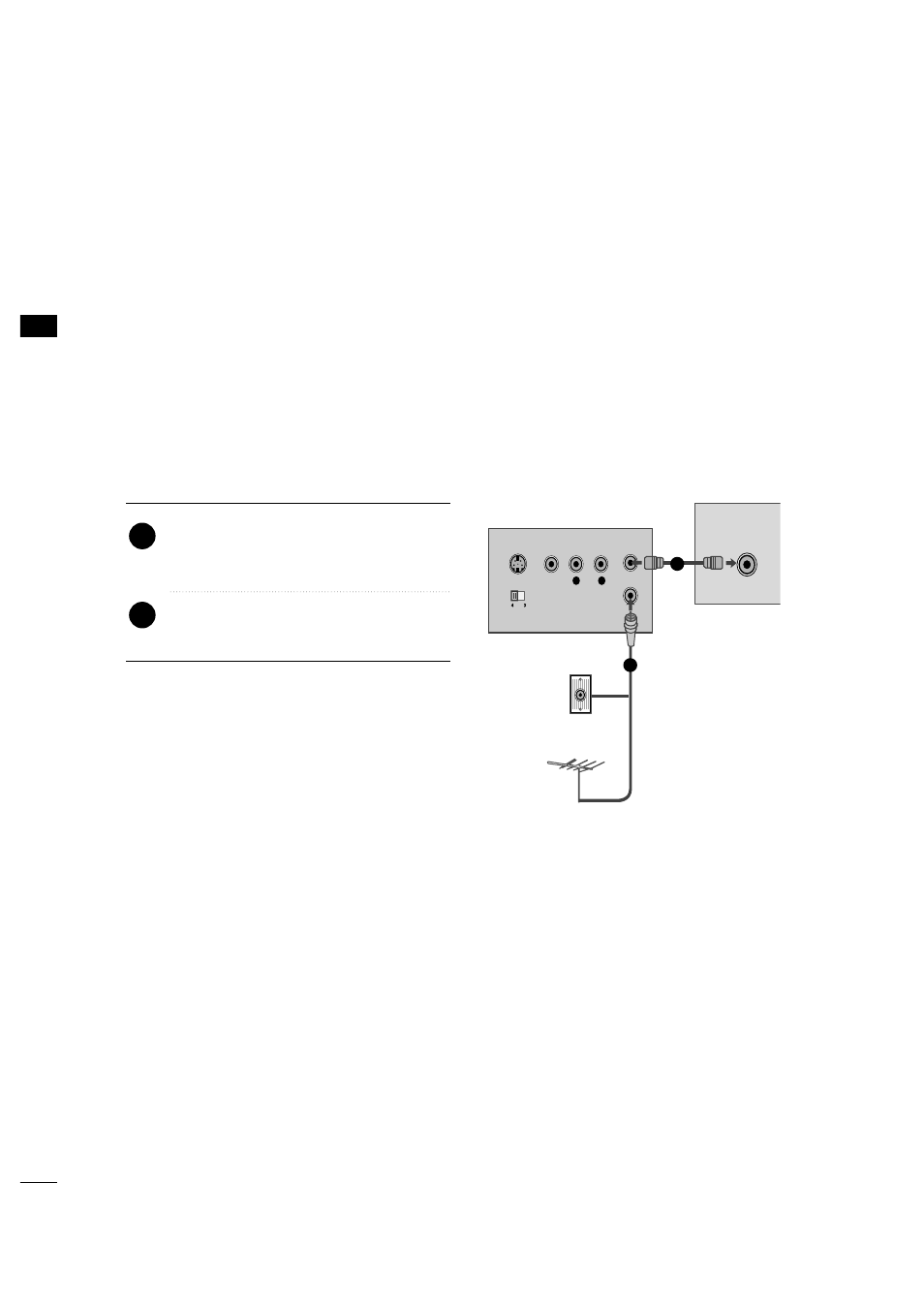

Connect the RF antenna out socket of the
VCR to the A

A IIN

N socket on the

TV.

Connect the antenna cable to the RF
antenna in socket of the VCR.

1. How to connect

2. How to use

■

Set VCR output switch to 3 or 4 and then
tune TV to the same channel number.

■

Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner’s
manual.)
