Connections and Pinouts

UDS10/UDS100 User Guide

Ethernet Connector Pinouts

The UDS10 supports 10 Mbps half-duplex Ethernet through an RJ45 connector. The
UDS100 supports 100 Mbps half or full duplex Ethernet through an RJ45 connector.

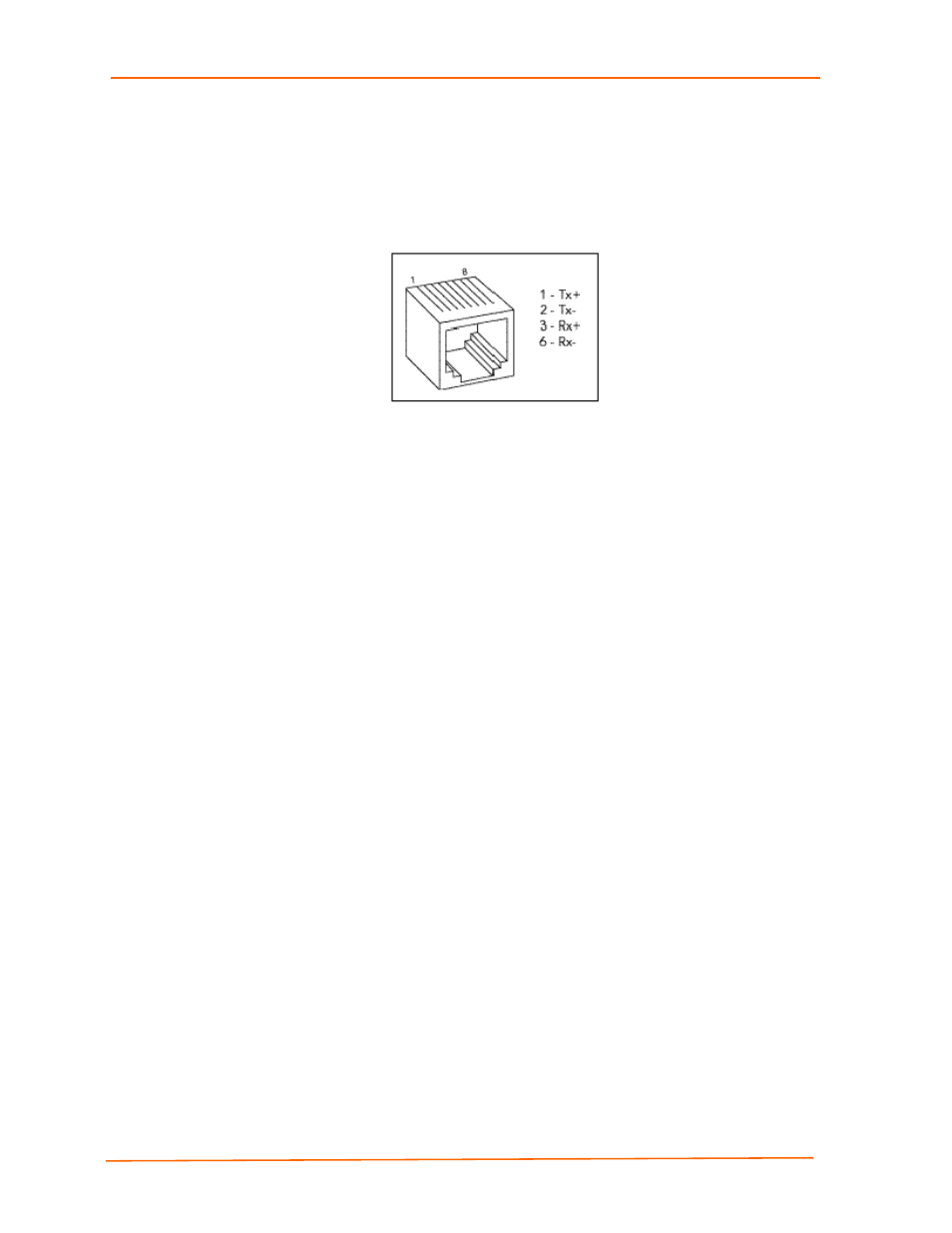

Figure 9-6. RJ45 Ethernet Connector
