This chapter describes how to get your UDS up and running in the shortest possible
time.
Installing the UDS

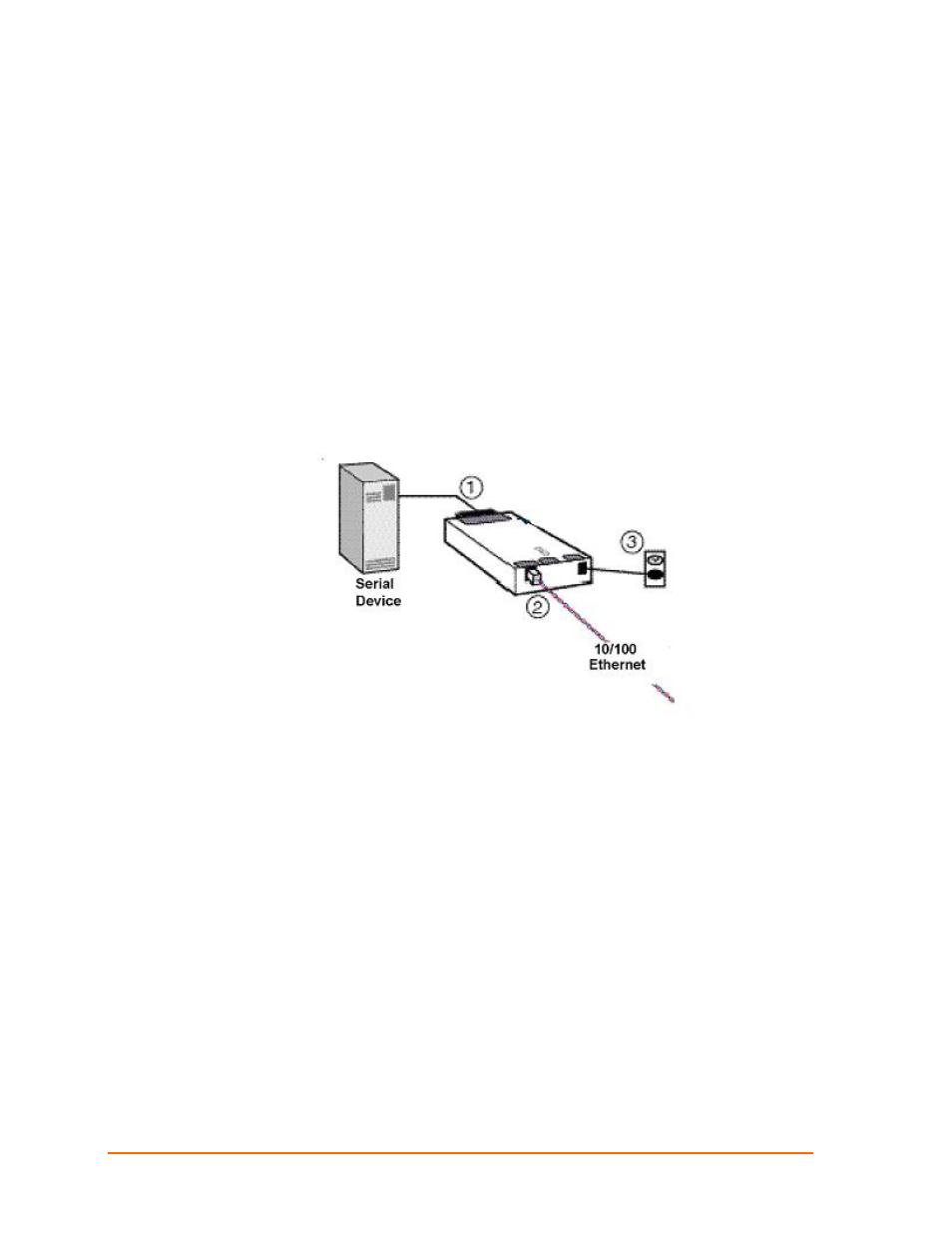

Figure 3-1. UDS Connected to Serial Device and Network
To install the unit, complete the following steps in order. Refer to the numbers in the figure
above.
1. Connect a serial device to your unit. See
for more
information about the device attachments the unit supports.
2. Connect an Ethernet cable to the RJ45 port.
3. Supply power to your unit using the power supply that was included in the
packaging.
Note:
The required input voltage is 9-30 VDC or 9-24 VAC
(1 W maximum).
4. Supply power to the serial device.
Note:
If you encounter a problem, please see
diagnostic information.
