SL-31094 Product Specification/Installation Sheet page 2 2/04 (Rev. 0)

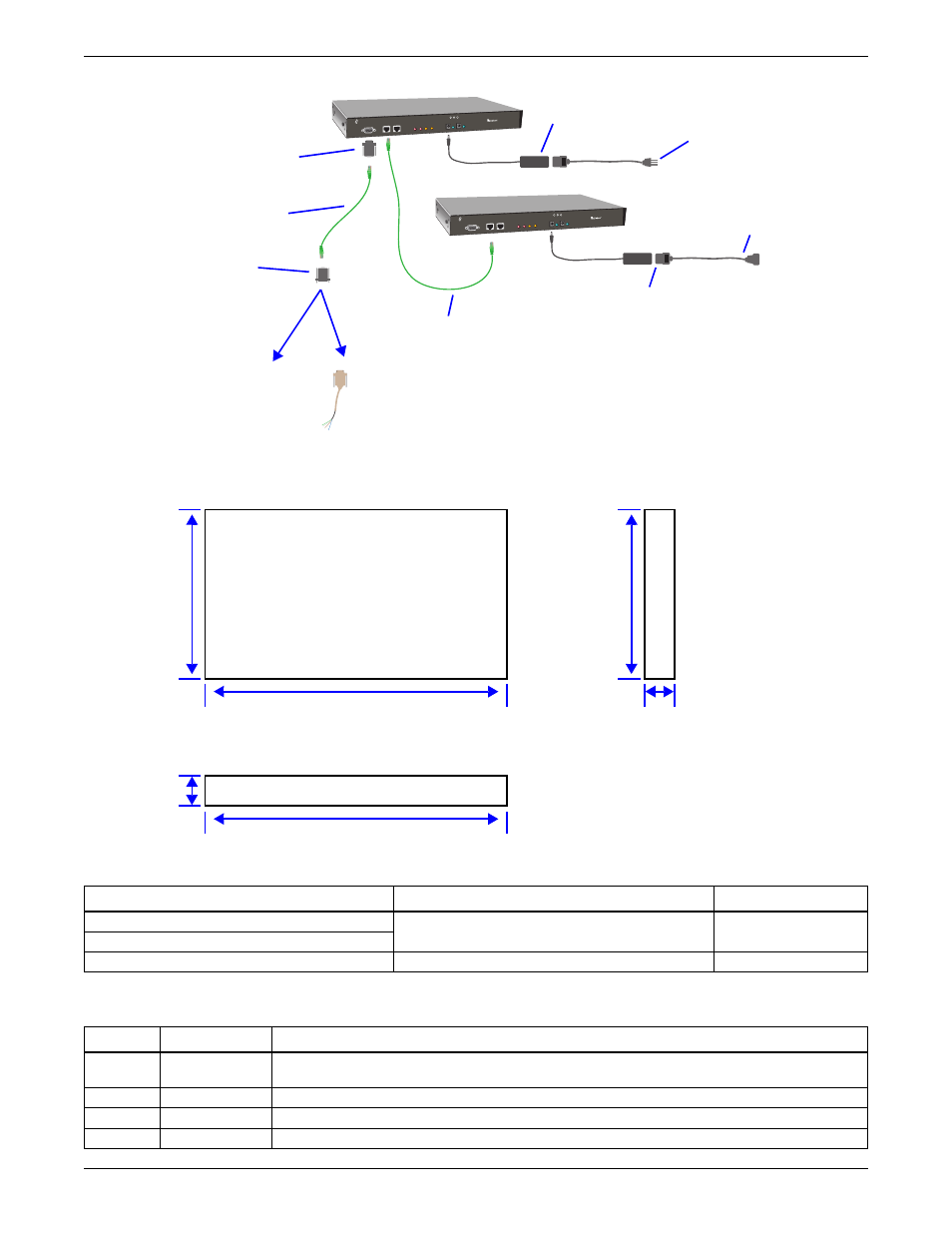

Hardware and Components
Dimensions
Wiring Specifications
Ordering Information
Connection Provided / Purchased Separately Maximum Length*
RJ45 cable to connect UPS to MultiPort
6 & 25 ft. (1.8 & 7.6m); 2 cables provided 300 ft. (91m)
RJ45 cable to connect Bridging Port
MultiLink / AS400 cable
10 ft. (3m); Purchased separately 100 ft. (31m)
* For longer cables, refer to the IntelliRack user manual.
Quantity Part # Description
INTELLIRACK
IntelliRack unit, two DB9-to-RJ45 adapters, two RJ45 cables, a universal power supply and
two line cords (120V & 230V)
IRACKUNIVPS Secondary power connection for the IntelliRack’s redundant port (requires 12VDC)
MULTIPORT4 MultiPort 4 kit with one MultiPort 4 card and one molded cable assembly with four connectors
IRACKMLADPT Liebert MultiLink Cable Adapter Kit with two DB9-to-RJ45 adapters
EMER S ON Network Power
Bridging AC Fail Low Battery Trans mit (TX) R eceive (R X)
Power Inputs:
Power
12 V DC 1.5A
R edundant Power
IntelliRack UPS OUT IN
+ —
EMER S ON Network Power
Bridging AC Fail Low Battery Trans mit (TX) R eceive (R X)
Power Inputs:
Power
12 V DC 1.5A
R edundant Power
IntelliRack UPS OUT IN
+ —
IntelliRack
RJ45 cable (2 provided)
Daisy-chain to another
IntelliRack
MP-ADP-02 adapter
(DB9-to-RJ45)
Universal power
supply
* Item purchased separately
MP-ADP-01 adapter
(DB9-to-RJ45)
Connects to UPS:
either A or B below,
depending on type
of UPS
A
(for UPS with DB9 port)
MP-ADP-01 connects
to DB9 port of UPS
RJ45 cable (2 provided)
Connect to UPS
B
(for UPS with no DB9 port)
MP-ADP-01 adapter connects to open-wire adapter
(SNS3ADPT, at left)* which connects to UPS
OR
Universal power
supply
120V or 230V
power cord
(120V shown)
120V or 230V
power cord
(230V shown)
16"
(406.4mm)
SIDE VIEW TOP VIEW
9"
(228.6mm)
1.66"
(42.2mm)
9"
(228.6mm)
1.66"
(42.2mm)
16"
(406.4mm)
FRONT VIEW
