9 Chapter 3: Getting to Know the ADSL Gateway
The Front Panel
ADSL Gateway with 4-Port Switch
The Front Panel
The Gateway's LEDs, where information about network activity is displayed, are located on the front panel.
Power Green. The Power LED lights up when the Gateway is powered on.
Ethernet (1-4) Green. The Ethernet LEDs serve two purposes. If an LED is continuously lit, the Gateway is
successfully connected to a device through that LAN port. If an LED is blinking, it is an
indication of any network activity on that port.
DSL Green. The DSL LED lights up whenever there is a successful DSL connection. The LED
blinks while establishing the ADSL connection.
Internet Green. The Internet LED lights up green when an Internet connection to the Internet
Service Provider (ISP) session is established. The Internet LED lights up red when the
connection to the ISP fails.

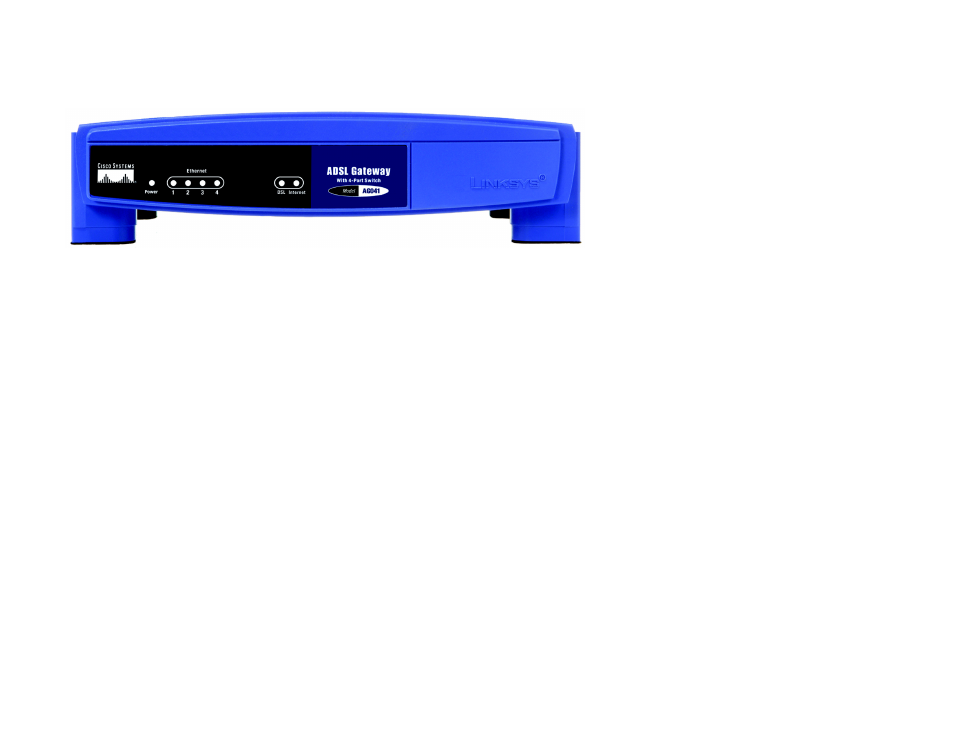

Figure 3-2: Front Panel
