8 Chapter 3: Getting to Know the ADSL Gateway
The Back Panel
ADSL Gateway with 4-Port Switch
Chapter 3: Getting to Know the ADSL Gateway
The Back Panel
The Gateway’s ports, where a network cable and DSL cable are connected, are located on the back panel. The
Gateway’s buttons are also located on the back panel.
LINE The LINE port connects to the ADSL line.
Ethernet (1-4) The Ethernet ports connect to your computer and other network devices.
Power The Power port is where you will connect the power adapter.
Reset Button There are two ways to reset the Gateway's factory defaults. Either press the Reset Button, for
approximately ten seconds, or restore the defaults from the Factory Defaults screen of the
Administration tab in the Gateway’s Web-Based Utility.
On/Off This switch is used to turn the Gateway on or off.
With these, and many other, Linksys products, your networking options are limitless. Go to the Linksys website at
www.linksys.com for more information about products that work with the Gateway.
Important: Resetting the Gateway to factory
defaults will erase all of your settings and
replace them with the factory defaults. Do not
reset the Gateway if you want to retain these
settings.

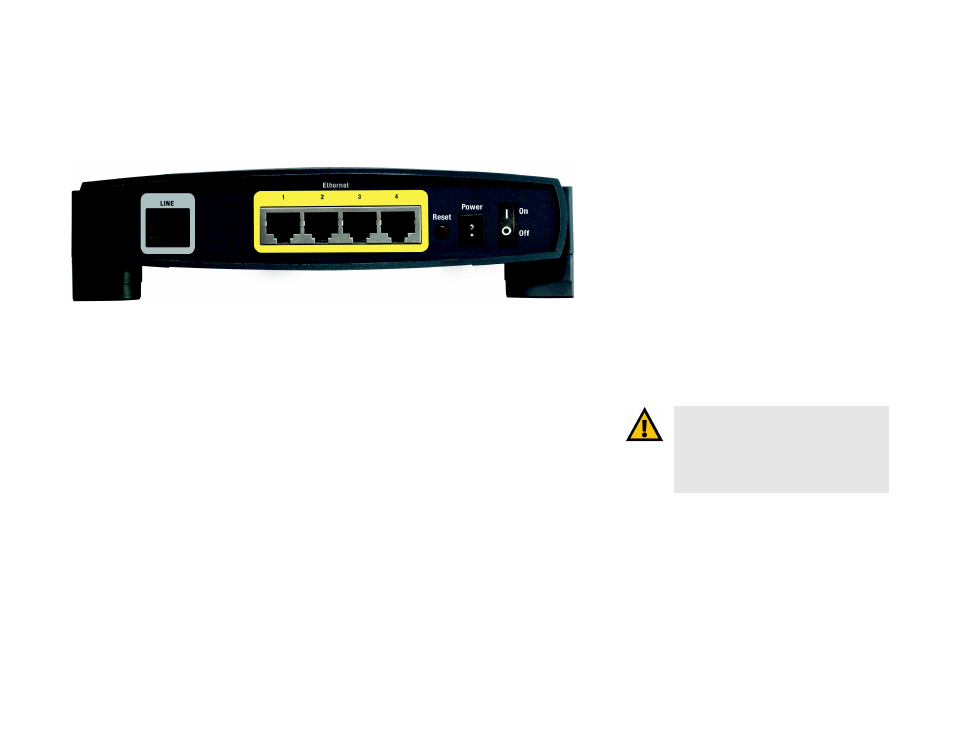

Figure 3-1: Back Panel
