Life Fitness LFADJ User Manual
Page 9
9

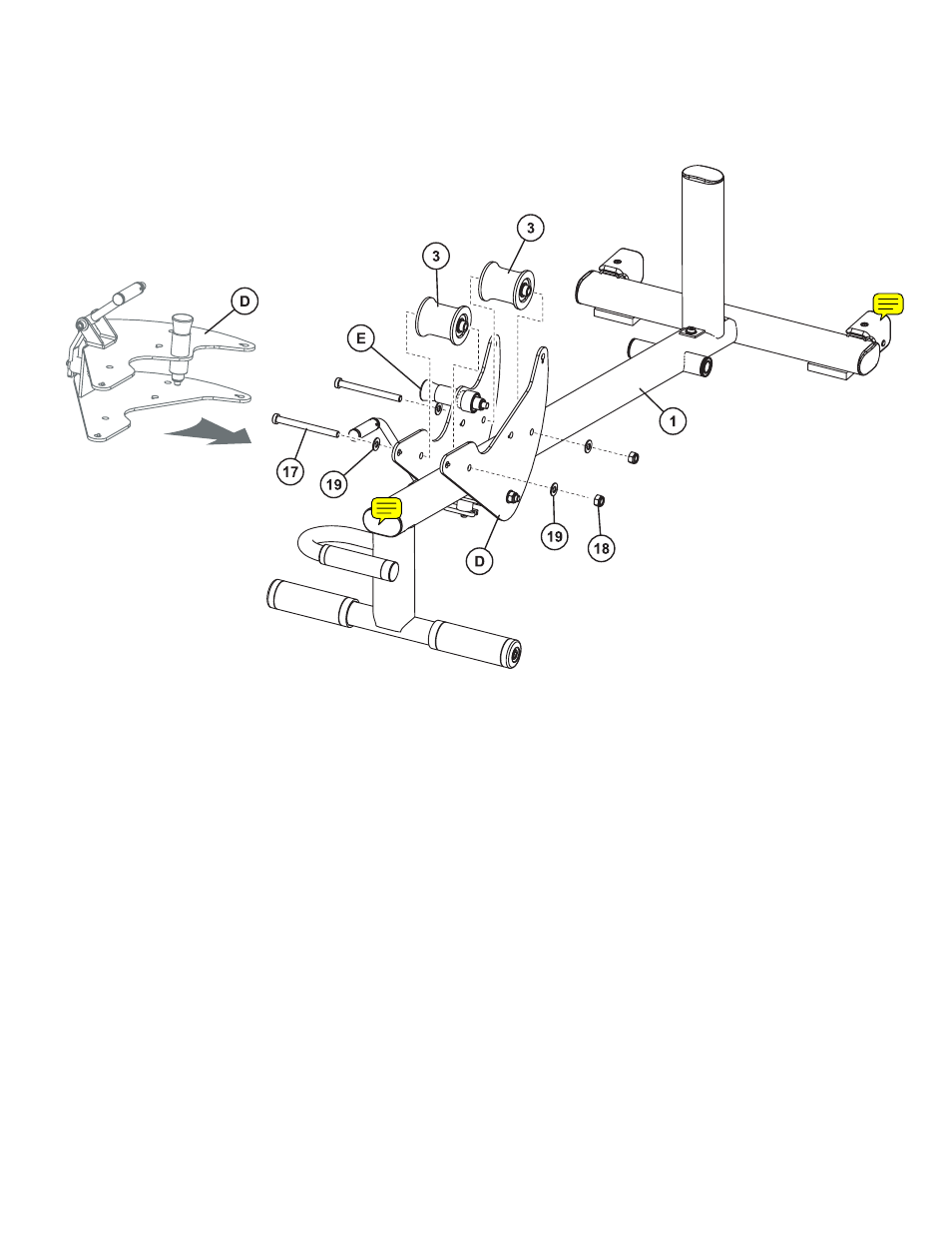

STEP 4:
WIth the ROLLER CARRIAGE ASSEMBLY (D) oriented on its side, carefully position the ROLLER CARRIAGE
ASSEMBLY (D) over the MAIN FRAME ASSEMBLY (1) and tilt into its final position as shown.
NOTE: IF NECESSARY, PULL ON THE CARRIAGE KNOB (E) TO GET THE ROLLER CARRIAGE (D) ON THE MAIN
FRAME ASSEMBLY (1).
Attach the two remaining ROLLERS (2) to the ROLLER CARRIAGE ASSEMBLY (D) using one M10 x 110mm
SCREW (17), two FLAT 3/8” WASHERS (19), and one M10 HEX NYLOCK NUT (18) each. Tighten the screws and
nuts securely.
NOTE: THE TWO ROLLERS SHOULD BE POSITIONED ABOVE THE MAIN FRAME ASSEMBLY (1).
