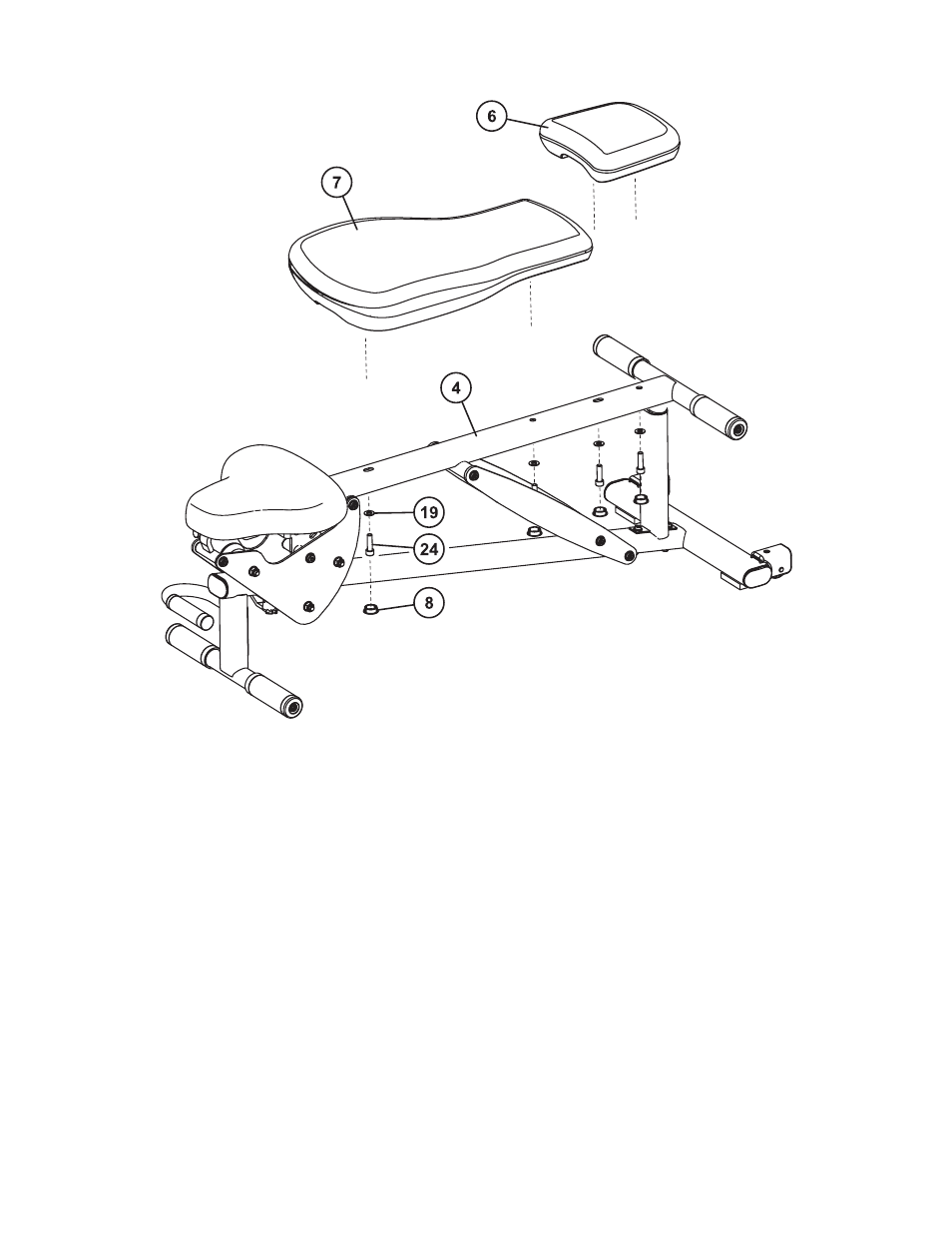

STEP 9:
Attach the BACK PAD (7) to the PAD HOLDER ASSEMBLY (4) as shown using two M10 x 35mm SCREWS (24) and
two FLAT 3/8” WASHERS (19). Tighten the screws securely. Do not overtighten the screws.
Attach the HEADREST PAD (6) to the PAD HOLDER ASSEMBLY (4) as shown using two M10 x 35mm SCREWS
(24) and two FLAT 3/8” WASHERS (19). Tighten the screws securely. Do not overtighten the screws.
Insert HOLE PLUGS (8) into the four access holes underneath the PAD HOLDER ASSEMBLY (4).
