7

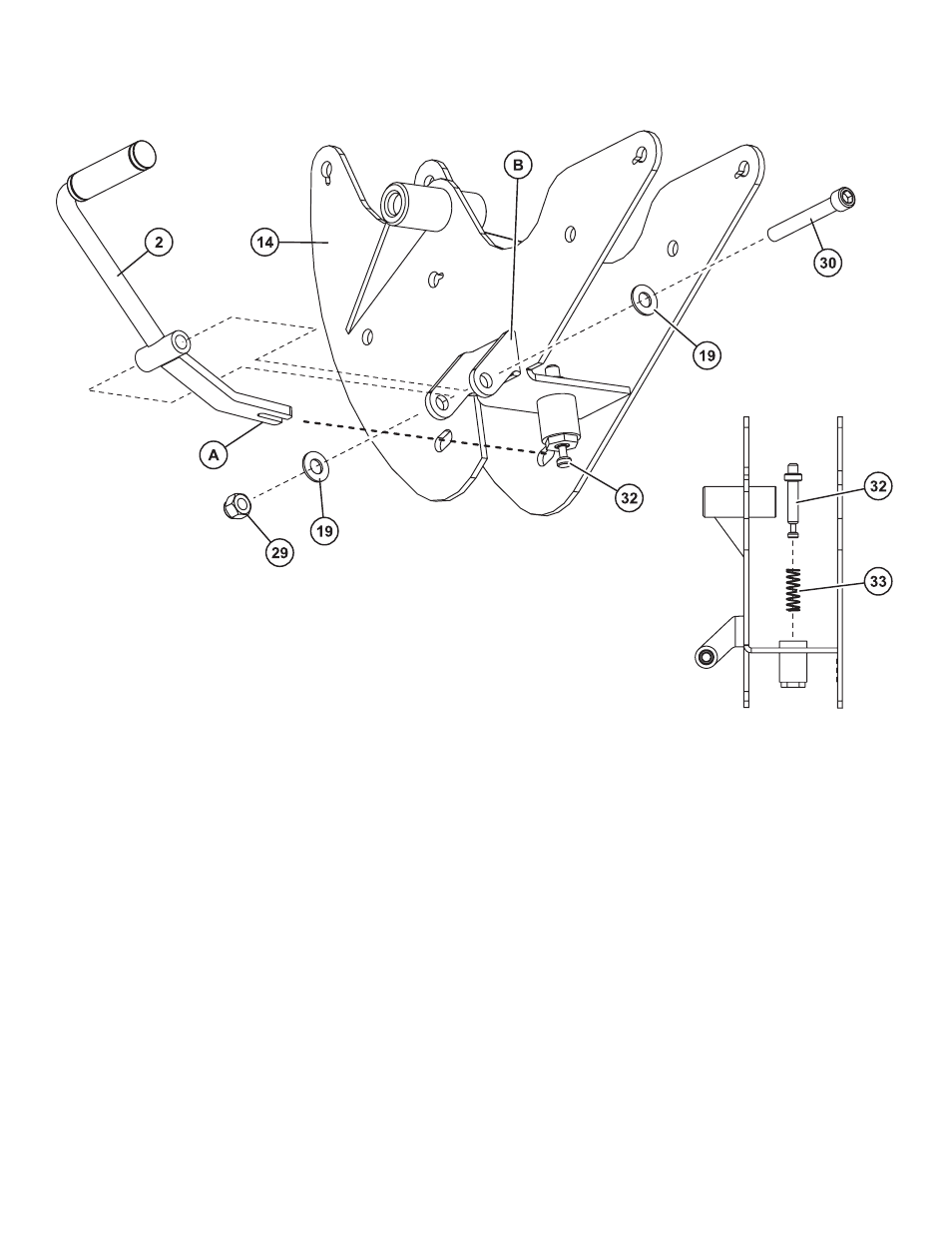

STEP 2:

‰ Insert the COMPRESSION SPRING (33) and SEAT ADJUSTMENT PIN (32) into the ROLLER CARRIAGE (14).

‰ With the SEAT ADJUSTMENT HANDLE (2) oriented as shown, press downward on the SEAT ADJUSTMENT PIN

(32) and insert the FORK END (A) of the SEAT ADJUSTMENT HANDLE (2) onto the SEAT ADJUSTMENT PIN (32).

NOTE: THE HANDLE ORIENTATION MUST BE POSITIONED AS SHOWN SO THE BEND IS IN THE CORRECT
POSITION.

‰ WIth the FORK END (A) of the SEAT ADJUSTMENT HANDLE (2) engaged with the SEAT ADJUSTMENT PIN (32),

align the mounting holes of the SEAT ADJUSTMENT HANDLE (2) to the BRACKET (B) on the ROLLER CARRIAGE
(14) and secure using one 3/8” X 2.75” HEX SOCKET SCREW (30), two FLAT 3/8” WASHERS (19), and one 3/8”
NYLOCK NUT (29).
