10

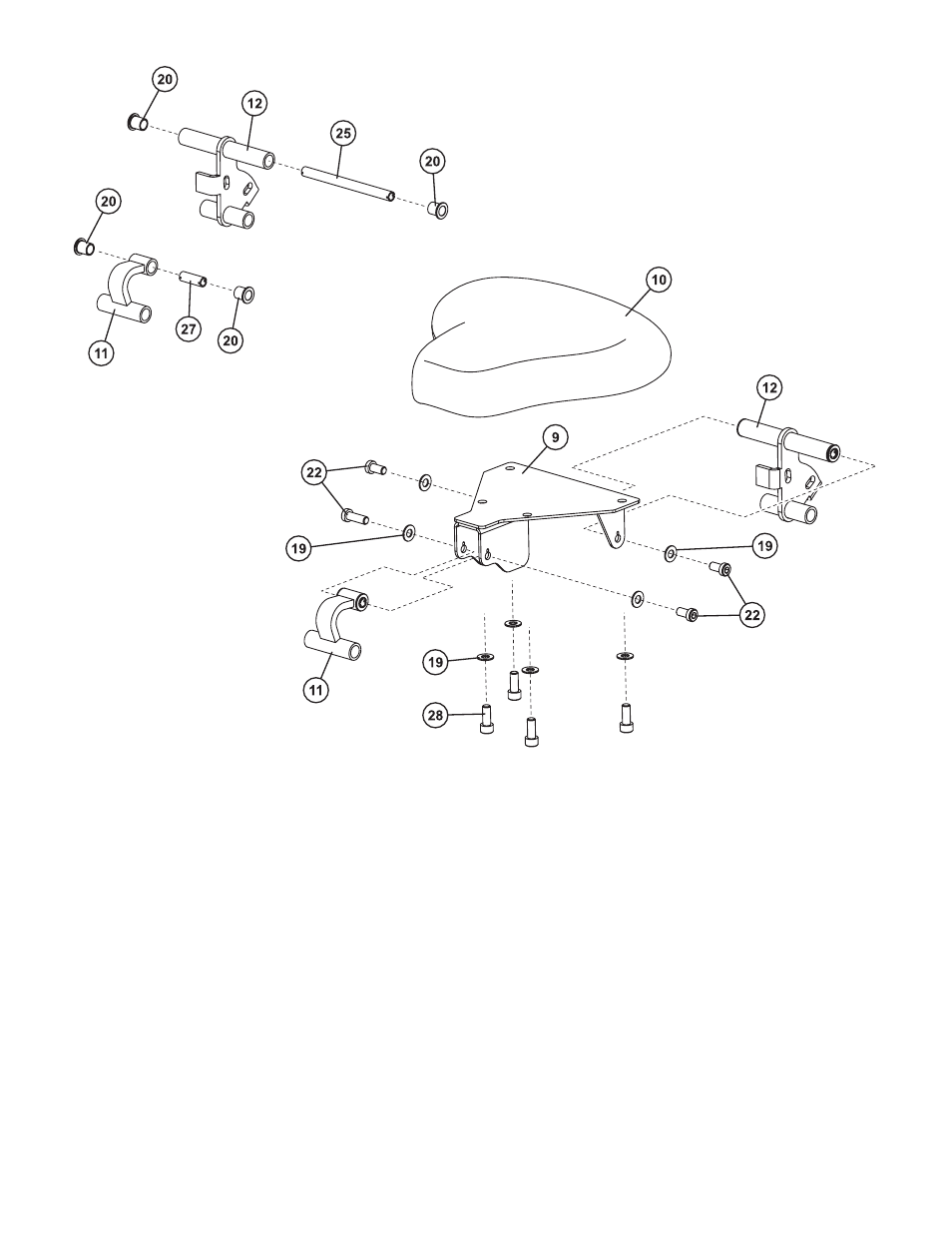

STEP 5:
‰ Insert two 1/2” x 1/2” BUSHINGS (20) into the top ends of the SEAT ADJUSTMENT ASSEMBLY (12). Insert the 1/2”
x 6” SLOTTED SHAFT (25) through the 1/2” x 1/2” BUSHINGS (20).
‰ Insert two 1/2” x 1/2” BUSHINGS (20) into the top ends of the SEAT PIVOT BAR (11). Insert the 1/2” x 1 1/2” SLOT-
TED SHAFT (27) through the 1/2” x 1/2” BUSHINGS (20).
‰ Attach the top of the SEAT ADJUSTMENT ASSEMBLY (12) to the SEAT SUPPORT PLATE (9) as shown using two
M10 x 20mm SCREWS (22) and two FLAT 3/8” WASHERS (19). Tighten the screws securely.
‰ Attach the top of the SEAT PIVOT BAR (11) to the SEAT SUPPORT PLATE (9) as shown using two M10 x 20mm
SCREWS (22) and two FLAT 3/8” WASHERS. Tighten the screws securely.
‰ Attach the SEAT PAD (10) to the SEAT SUPPORT PLATE (9) using four M10 x 25mm SCREWS (28) and four FLAT
3/8” WASHERS (19) as shown. Tighten the screws securely. Do not overtighten the screws.
