24
Installation
- This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

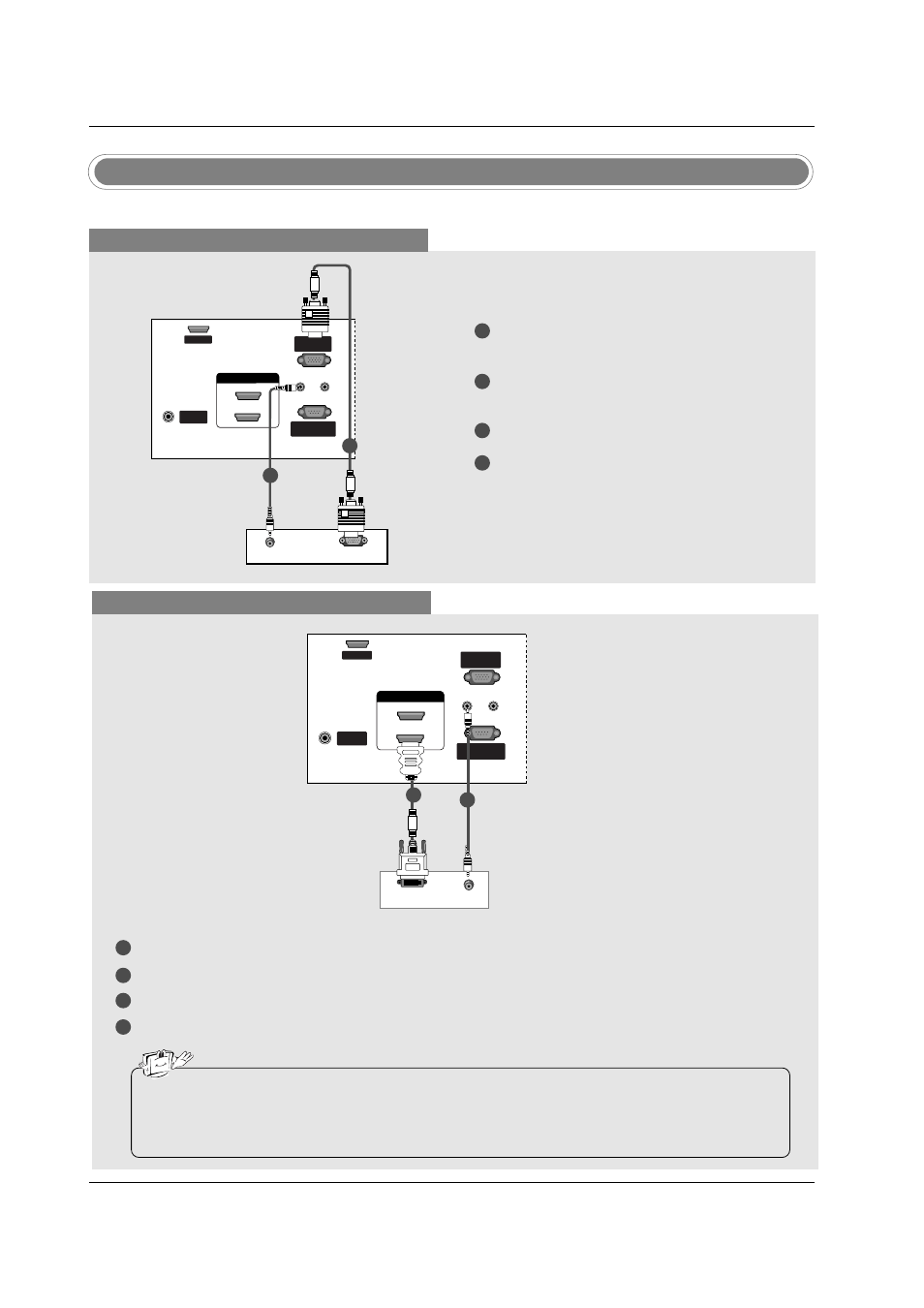

PC Setup
When connecting with a D-sub 15 pin cable
1
2
3
4
Connect the RGB output of the PC to the RGB IN
(PC) jack on the set.
Connect the PC audio outputs to the AUDIO IN
(RGB/DVI) jack on the set.
Turn on the PC and the set.
Select RGB-PC input source with using the
INPUT button on the remote control.
ANTENNA/
CABLE IN
REMOTE
CONTROL IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN
(PC)
AUDIO IN
(RGB/DVI) HDMI IN
1(DVI)
2
SERVICE
ANTENNA/ ANTENNA/
CABLE IN CABLE IN
REMOTE
CONTROL IN CONTROL IN
RS-232C IN
(CONTR (CONTROL & SER OL & SERVICE) VICE)
RGB IN RGB IN
(PC) (PC)
AUDIO IN
(RGB/DVI) HDMI IN HDMI IN
1(DVI)
2
SERVICE SERVICE
AUDIO RGB-PC OUTPUT
1
2
PC
When connecting with a HDMI to DVI cable
1
2
3
4
Connect the DVI output of the PC to the HDMI IN 1 (DVI) jack on the set.
Connect the audio outputs of the PC to the AUDIO IN (RGB/DVI) jack on the set.
Turn on the PC and the set.
Select HDMI1/DVI input source with using the INPUT button on the remote control.
ANTENNA/
CABLE IN
REMOTE REMOTE
CONTROL IN
RS-232C IN RS-232C IN
(CONTR (CONTROL & SER OL & SERVICE) VICE)
RGB IN
(PC) (PC)
AUDIO IN
(RGB/DVI) HDMI IN
1(DVI)
2
SERVICE SERVICE
AUDIO DVI-PC OUTPUT
ANTENNA/
CABLE IN
REMOTE
CONTROL IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN
(PC)
AUDIO IN
(RGB/DVI) HDMI IN
1(DVI)
2
SERVICE
PC
• If the PC has a DVI output and no HDMI output, a separated audio connection is necessary.
• If the PC does not support Auto DVI, you need to set the output resolution appropriately. To get the
best picture quality, adjust the output resolution of PC graphics card 1024x768, 60Hz.
1
2
