- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if
you do receive Digital signals from a digital set-top box or other digital external device, refer to the figure
as shown below.

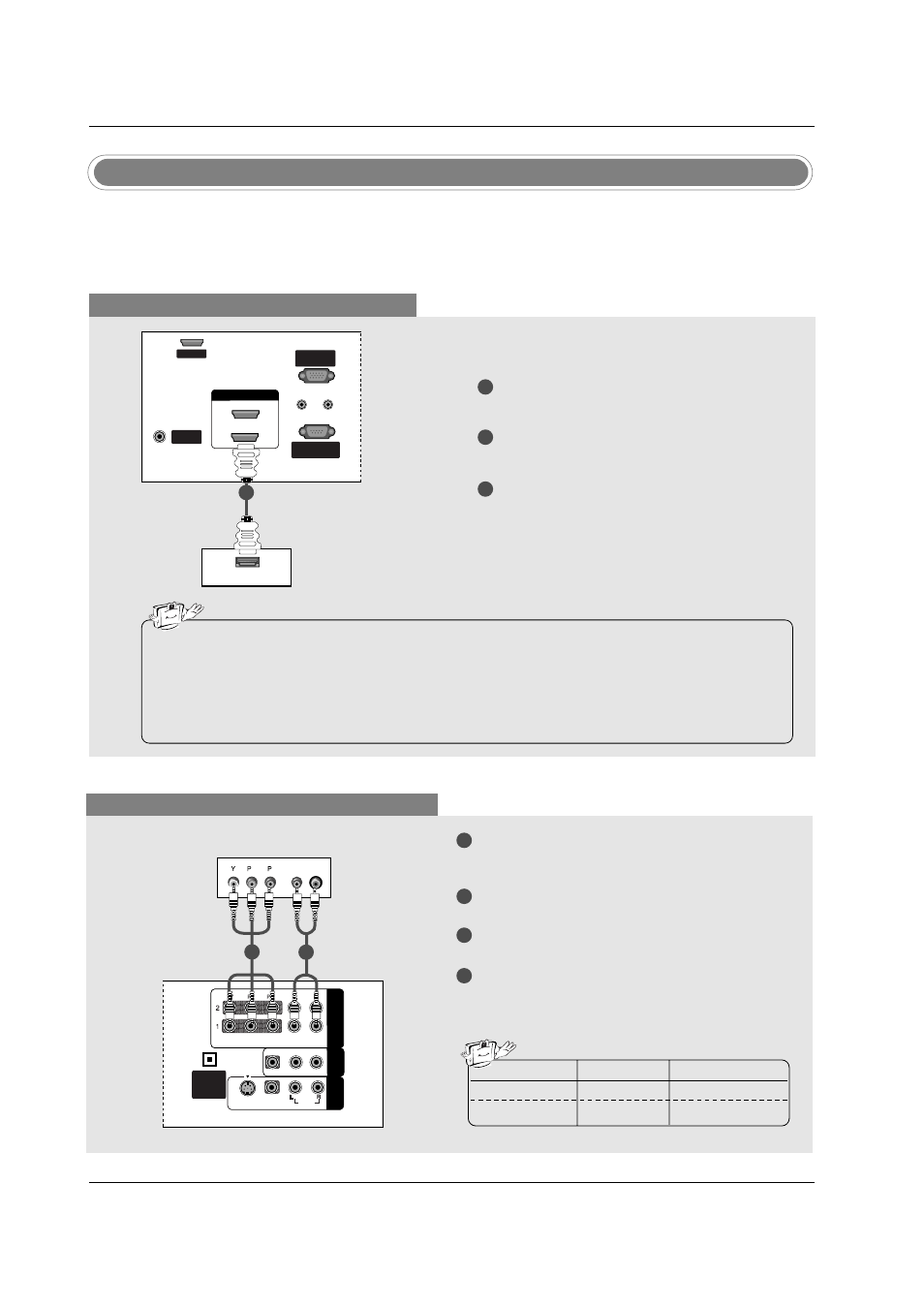

HDSTB Setup
When connecting with a HDMI cable
1
2
3
Connect the HDMI output of the digital set-top
box to the HDMI IN 1 (DVI) or 2 jack on the set.
Select HDMI1/DVI or HDMI2 input source with
using the INPUT button on the remote control.
Turn on the digital set-top box. (Refer to the
owner’s manual for the digital set-top box.)
Digital Set-top Box
• TV can receive the video and audio signal simultaneously using a HDMI cable.
• If the digital set-top box supports Auto HDMI function, output resolution of the digital set-top box will
be automatically set to 1280x720p.
• If the digital set-top box does not support Auto HDMI, you need to set the output resolution appro-
priately. To get the best picture quality, adjust the output resolution of the digital set-top box to
1280x720p.
RGB IN
REMOTE
CONTROL IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
VIDEO
AUDIO
VIDEO
AUDIO
( )
S-VIDEO
AV
IN 1
AV
OUT
COMPONENT
IN
DIGITAL
OPTICAL
AUDIO OUT
ANTENNA/
CABLE IN
REMOTE
REMOTE
CONTROL IN
RS-232C IN
RS-232C IN
(CONTR
(CONTROL & SER
OL & SERVICE)
VICE)
RGB IN
(PC)
(PC)
AUDIO IN
(RGB/DVI)
HDMI IN
1(DVI)
2
HDMI-DTV OUTPUT
SERVICE
SERVICE
ANTENNA/
CABLE IN
REMOTE
CONTROL IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
HDMI IN
1(DVI)
2
SERVICE
1
When connecting with a Component cable
1
2
3
4
Connect the video outputs (Y, P
B
, P
R
) of the digi-
tal set-top box to the COMPONENT IN VIDEO
1jacks on the set.
Connect the audio output of the digital set-top box
to the COMPONENT IN AUDIO1 jacks on the set.
Turn on the digital set-top box. (Refer to the
owner’s manual for the digital set-top box.)
Select Component 1 input source with using the
INPUT button on the remote control.
- If connected to COMPONENT IN 2, select
Component 2 input source.
RGB IN
REMOTE
CONTROL IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
VIDEO
AUDIO
VIDEO
AUDIO
UDIO
MONO
( )
S-VIDEO
S-VIDEO
A
V
IN 1
A
V
OUT
COMPONENT COMPONENT
IN
DIGITAL
OPTICAL
AUDIO OUT
B
R
(R) AUDIO (L)
ANTENNA/
CABLE IN
REMOTE
CONTROL IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
HDMI IN
1(DVI)
2
SERVICE
ANTENNA/
CABLE IN
REMOTE
CONTROL IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
HDMI IN
1(DVI)
2
SERVICE
Signal
480i
480p/720p/1080i
Component1/2
Yes
Yes
HDMI1/DVI, HDMI2
No
Yes
2
1
Digital Set-top Box
Installation
