19
Installation

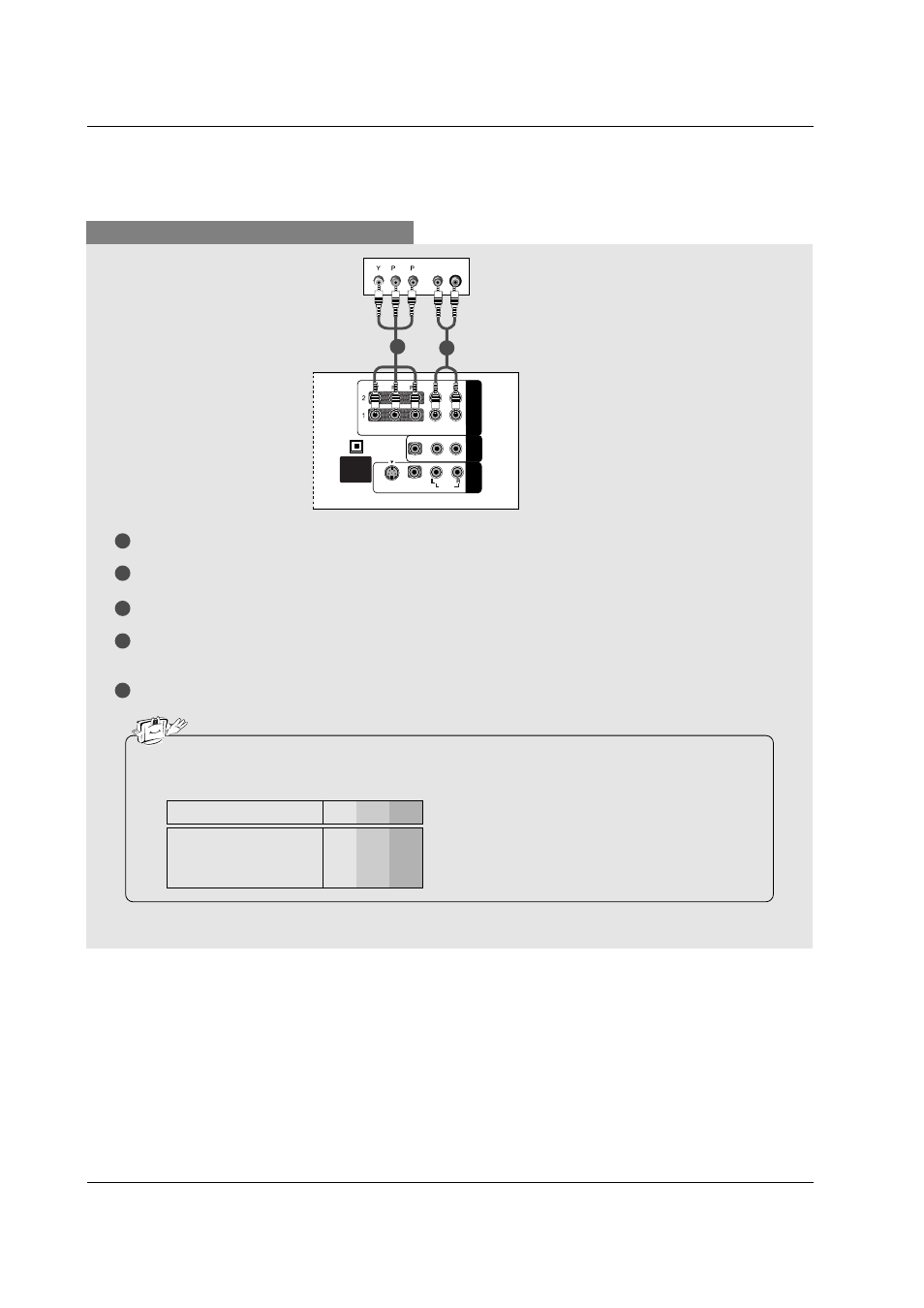

When connecting with a component cable
1
2
3
4
5
Connect the video outputs (Y, P B , P R ) of the DVD to the COMPONENT IN VIDEO1 jacks on the set.
Connect the audio outputs of the DVD to the COMPONENT IN AUDIO1 jacks on the set.
Turn on the DVD player, insert a DVD.
Select Component 1 input source with using the INPUT button on the remote control.
- If connected to COMPONENT IN 2, select Component 2 input source.
Refer to the DVD player's manual for operating instructions.
• Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Y P B
P
R Component ports on the TV
Y
Y
Y
Y Pb
B-Y
Cb
P B
Pr
R-Y
Cr
P R
Video output ports
on DVD player
ANTENNA/
CABLE IN
HDMI IN
1(DVI)
2
VIDEO AUDIO
VIDEO AUDIO
MONO ( )
S-VIDEO
A
V
IN 1
A
V
OUT
COMPONENT COMPONENT
IN
DIGITAL
OPTICAL
AUDIO OUT
VIDEO AUDIO
VIDEO AUDIO
( )
S-VIDEO
AV
IN 1
AV
OUT
COMPONENT
IN
DIGITAL
OPTICAL
AUDIO OUT
B R (R) AUDIO (L) DVD
1 2
