62 Appendix B: Configuring IPSec between a Windows 2000 or XP Computer and the Gateway
How to Establish a Secure IPSec Tunnel
ADSL2 Gateway with 4-Port Switch

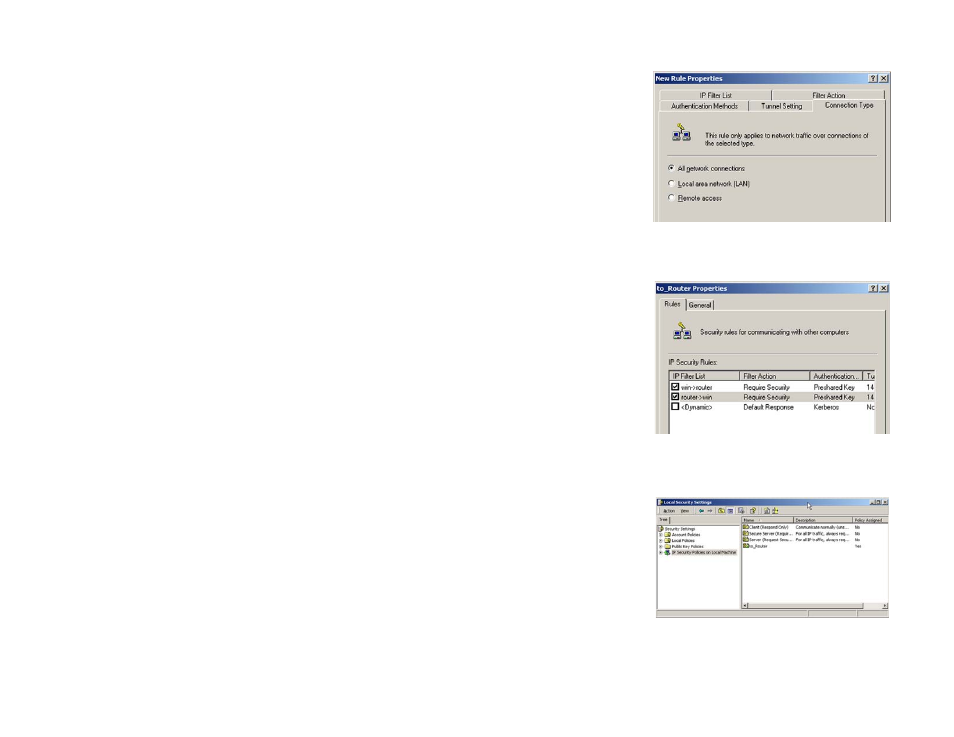

16. Click the Connection Type tab, shown in Figure C-25, and select All network connections. Then click the
OK or Close button to finish.
17. From the Rules tab, shown in Figure C-26, click the OK or Close button to return to the secpol screen.
Step 4: Assign New IPSec Policy
In the IP Security Policies on Local Computer window, shown in Figure C-27, right-click the policy named
to_Router, and click Assign. A green arrow appears in the folder icon.
Figure B-25: Connection Type
Figure B-26: Rules
Figure B-27: Local Computer
