9 Chapter 3: Getting to Know the ADSL2 Gateway with 4-Port Switch
The Front Panel
ADSL2 Gateway with 4-Port Switch
The Front Panel
The Gateway's LEDs, where information about network activity is displayed, are located on the front panel.
Power Green. The Power LED lights up when the Gateway is powered on.
Ethernet (1-4) Green. The LAN LED serves two purposes. If the LED is continuously lit, the Gateway is
successfully connected to a device through the LAN port. If the LED is blinking, it is an
indication of any network activity.
DSL Green. The DSL LED lights up whenever there is a successful DSL connection. The LED blinks
while establishing the ADSL connection.
Internet Green. The Internet LED lights up green when an Internet connection to the Internet Service
Provider (ISP) session is established. The Internet LED lights up red when the connection to
the ISP fails.

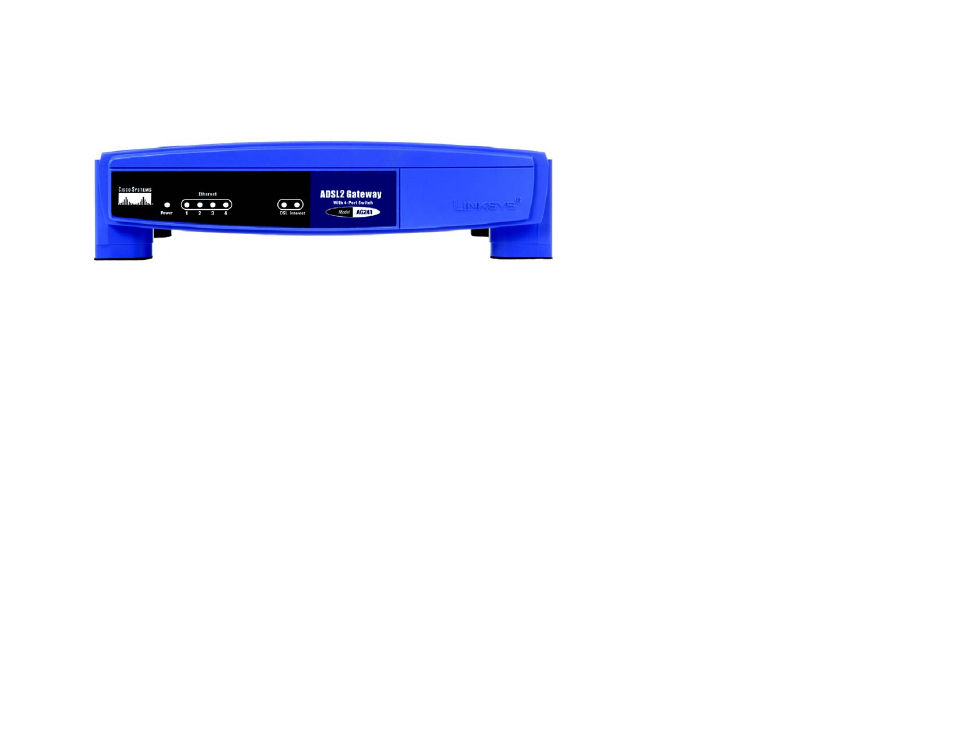

Figure 3-2: Front Panel
