NORMAL OPEN CIRCUIT VOLTAGE WAVEFORM (115VAC SUPPLY)
MACHINE LOADED TO 300 AMPS AT 27 VOLTS
TROUBLESHOOTING & REPAIR F-84 F-84
VANTAGE® 400

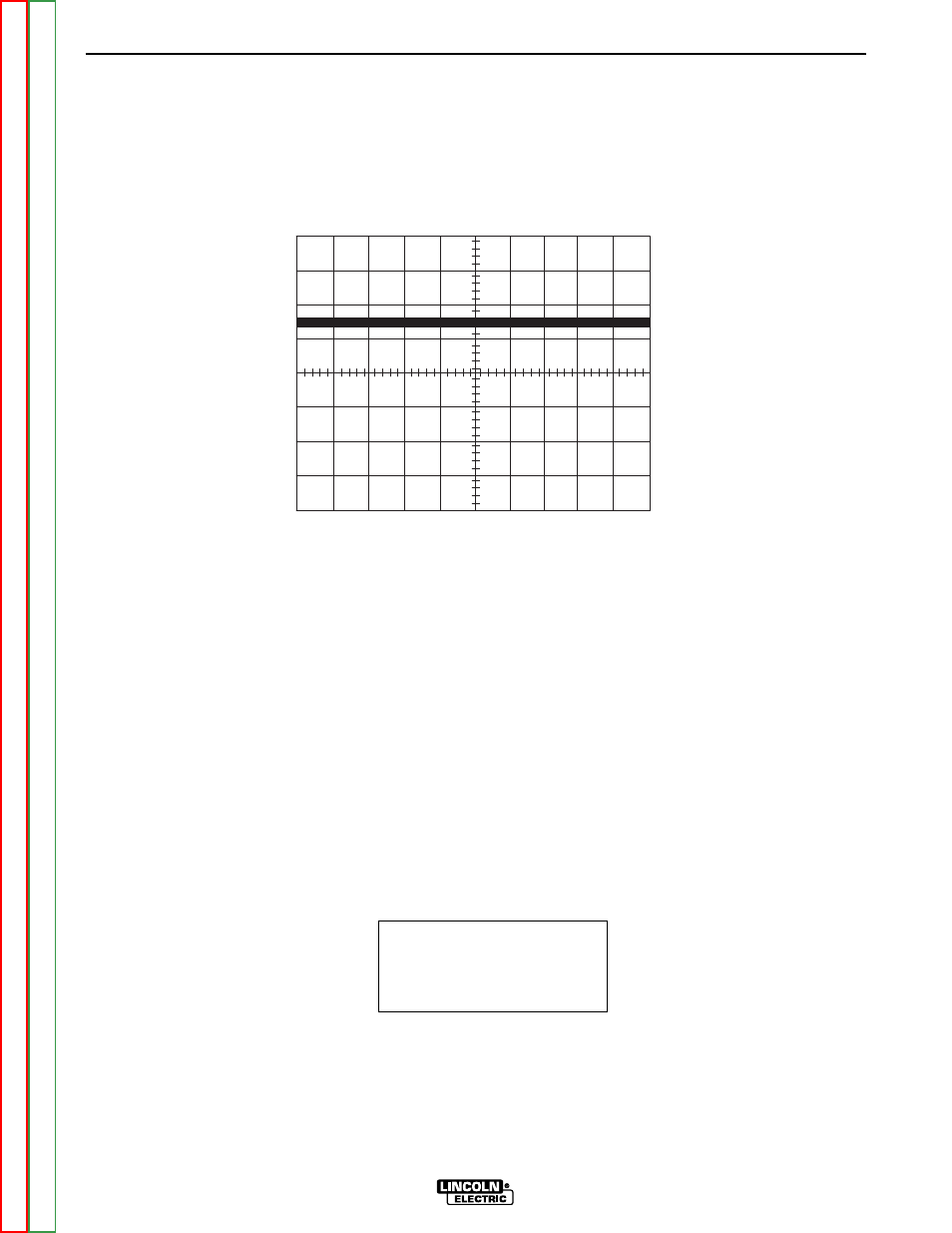

This is the typical DC output voltage
generated from a properly operating
machine. Note that each vertical divi-
sion represents 20 volts and that
each horizontal division represents 1
millisecond in time.
The machine was loaded with a resis-
tance grid bank to 300 amps at 27
volts.
NOTE: Scope probes are connected
at weld output terminals.
SCOPE SETTINGS
Volts/Div .....................20V/Div
Horizontal Sweep .....1 ms/Div.
Coupling.............................DC
Trigger.........................Internal
0 volts
20V 1ms
Trig +15V CH1
