2 2085454 7 2085454 Rev. A 9/07
Rev. A 9/07

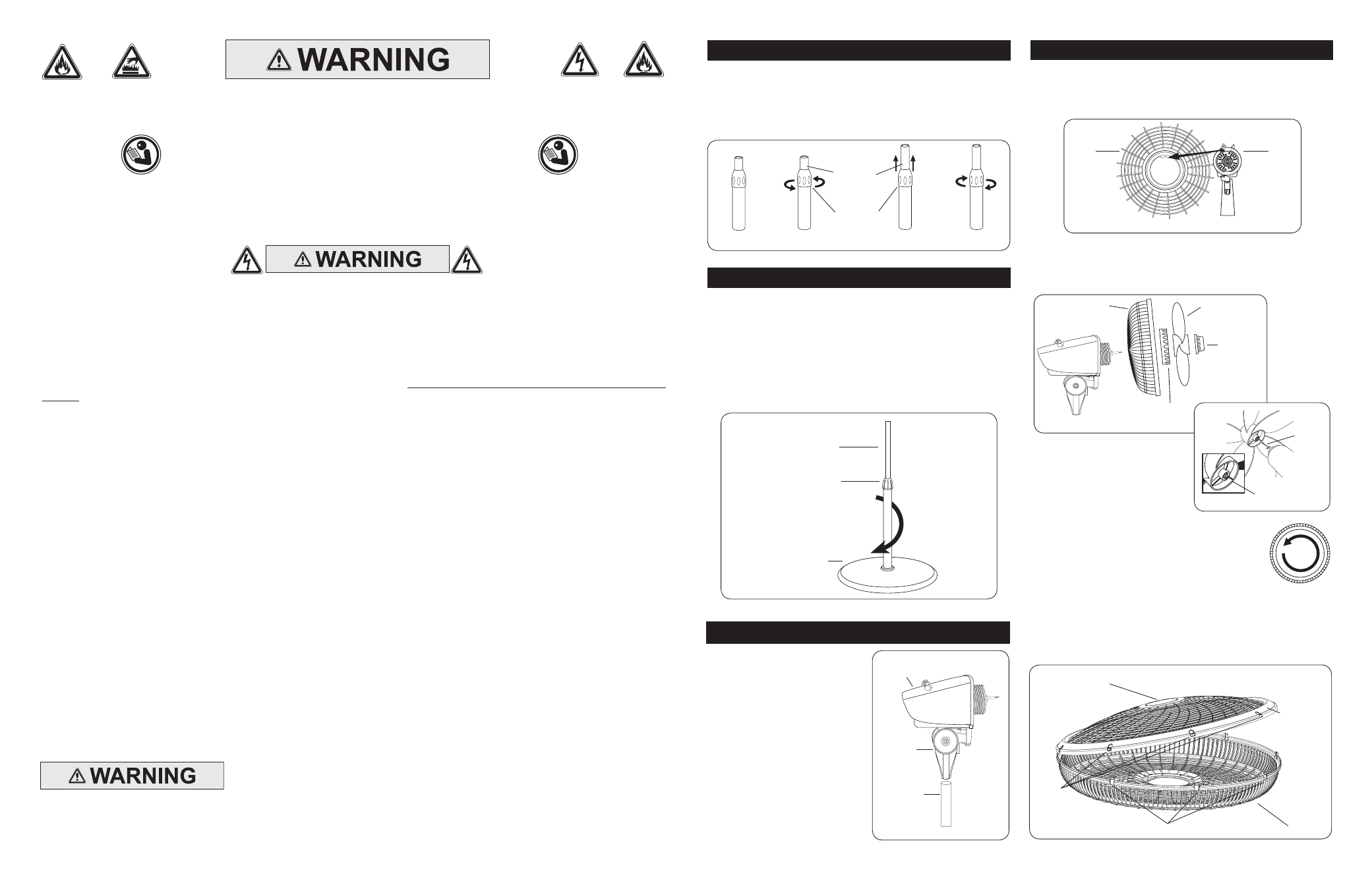

1. Inclinarla Cabeza del Ventilador hacia atrás. Coloque la Rejilla
Trasera en el Motor. (Figura 7)
2. Alinear la lengüeta de la Rejilla Trasera con la ranura en la parte
superior de la cubierta delantera del Motor.
PASO 4: ENSAMBLE DEL ASPAY REJILLA
PASO 2: ENSAMBLE DEL PIE
COLOQUE LA BASE EN EL PISO
1. Utilizando un movimiento giratorio, inserte el extremo del tubo de diámetro
grande en el agujero de la Base. (Figura 5) El girar el tubo
a medida que se lo empuja asegura que el tubo quede plenamente
asentado en la Base.
2. Para ajustar la altura:
a) Afloje la Tuerca de Ajuste de Altura.
b) Eleve o baje el Tubo de Extensión hasta obtener la altura
deseada.
c) Apriete la Tuerca de Ajuste de Altura.
1. Coloque el Conjunto de Cabezal
con el Collar en el Tubo de Ex-
tensión. (Figura 6)
2. Sostenga firmemente el Tubo de
Extensión y empuje el Conjunto
de Cabezal hacia abajo con un
movimiento giratorio hasta que
quede asentado en el Tubo de
Extensión.
PASO 3: CONJUNTO DE LA CABEZA
1. Saque el conjunto de la tubería del cartón como muestra. (Figura 1)
2. Desafloje la Tuerca de Ajuste de Altura, girando en sentido
contrahorario. (Figura 2)
3. Eleve la Extensión De La Tubería. (Figura 3)
4. Apriete la Tuerca de Ajuste de Altura, girando en sentido horario.
(Figura 4)
PASO 1: ARMADO DE LA TUBERÍA
3. Asiente la Parrilla Trasera y sujetela con la Tuerca de Plástico
hacia la Derecha. Deslice la Helice en el Eje del Motor. (Figura
8) Alinear la Ranura Del Cubo de la tapa con el Pasador del eje
del motor. (Figura 8A)
4. Para asegurar la Helice, enroscarla hasta que quede
apretada en el Cubo de la Tapa haciéndola girar
Hacia la Izuierda.
5. Con el cabezal del ventilador en posición vertical, alinee el Adorno
de la Parrilla Delantera de modo que quede horizontal y con el
lado debido hacia arriba. Empiece en la parte superior de la parrilla
y siga hacia abajo, insertando las Trabas de la Parrilla Trasera en
las Ranuras de la Parrilla Delantera. (Figura 9)
Conjunto de
Cabezal
Figura 2 Figura 4 Figura 3 Figura 1
Tuerca de
Ajuste de
Altura
Tubería de
Extension
Figura 5
Tubo de Extensión
Tuerca de Ajuste de
Altura
Base
Collar
Tubo de
Extensión
Figura 6
Rejilla
Trasera
Figura 7
Motor
Figura 8
Parrilla Trasera Helice
Tuerca de
Plastico
Tapa de
Ventilador
Figura 8A
Pasador
Ranura del
Cubo
Adorno
Ranuras
Trabas
Parrilla
Trasera
Parrilla
Delantera
Figura 9
MODEL 5132
GENERAL SAFETY INFORMATION
When using electrical appliances, basic precautions should always be followed to re-
duce the risk of fire, electrical shock and injury to persons, including the following:
SAVE THESE INSTRUCTIONS
Read all instructions before using this Fan.
1. Make certain the power source conforms to the electrical requirements of the Fan.
2. Make certain that the room is equipped with a working smoke detector.
3. Use this Fan only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or
injury to persons.
4. To reduce the risk of personal injury and electric shock, the Fan should not be played with or placed where small children can reach it.
5. Unplug power cord before installing, servicing, or moving the Fan.
DO NOT DEPEND ON THE ON/OFF SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER WHEN SERVICING
OR MOVING THE FAN. ALWAYS UNPLUG THE POWER CORD. ALWAYS TURN OFF AND UNPLUG FAN BEFORE
LEAVING THE AREA. NEVER LEAVE CHILDREN UNATTENDED WHEN THE FAN IS ON OR PLUGGED IN.
6. This Fan must NOT be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmospheres where
gasoline, paint or flammable liquids are used or stored.
7. DO NOT use Fan in or near a window. Rain may create an electrical hazard.
8. Completely assemble Fan, according to instructions, before connecting to power supply.
REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK - DO NOT USE THIS FAN
WITH ANY SOLID STATE SPEED CONTROL DEVICES.
9. Where possible, avoid the use of extension cords because the extension cord may overheat and cause a fire. If you must use an extension
cord, minimize the risk of overheating by using the shortest cord possible and ensuring that it is UL listed. NEVER use a single extension
cord to operate more than one Fan. Do not plug Fan into any other cord connected device, such as a power strip, cord reel, surge protec-
tor, multiple outlet adapters or outlet-type air fresheners. The use of such devices may create a fire hazard.
10. NEVER operate any Fan with a damaged cord or plug or after the Fan malfunctions, has been dropped or damaged in any manner.
11. NEVER insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock or fire, or
damage the Fan. To reduce the risk of fire, DO NOT block or tamper with the Fan in any manner while it is in operation.
12. Always place the Fan on a stable, flat, level surface when operating, to avoid the chance of the Fan overturning. Locate the Power Cord
so the Fan or other objects are not resting on it. DO NOT run Power Cord under carpeting. DO NOT cover Power Cord with throw rugs,
runners or the like. Arrange Power Cord away from room traffic and where it will not be tripped over.
13. This Fan is not intended for use in wet or damp locations. Never locate a Fan where it may fall into a bathtub or other water container.
NEVER use Fan where flammable liquids are used or stored.
14. NEVER use Fan outdoors.
15. This Fan is not suitable for use in agricultural facilities including areas where livestock, poultry or other animals are confined. Please refer
to National Electric Code (NEC) Article 547-7 (2002), or applicable state or local codes or standards relating to electrical requirements for
Agricultural Buildings. THIS FAN DOES NOT MEET THE REQUIRMENTS OF NEC ARTICLE 547-7 (2002).
16. This Fan is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local
codes or standards relating to electrical requirements for Hazardous locations. THIS FAN DOES NOT MEET THE REQUIRMENTS OF
NEC ARTICLE 500 (2002).
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock,
this plug is intended to fit in a polarized outlet only one way. Match wide blade of plug to wide slot. Fully
insert. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician. DO NOT attempt to defeat this safety feature.
This plug is a safety feature, to reduce the risk of fire, electric shock and personal injury. DO NOT remove,
replace, repair or tamper with the originally supplied plug. If the Fan does not function properly, it may be due
to the safety device incorporated in this plug. Return to an authorized service center or call 800-233-0268,
Monday - Friday, between 8:00 a.m. and 5:00 p.m. EST. If the plug warning label is missing or damaged, call
the toll free number for a replacement label.
