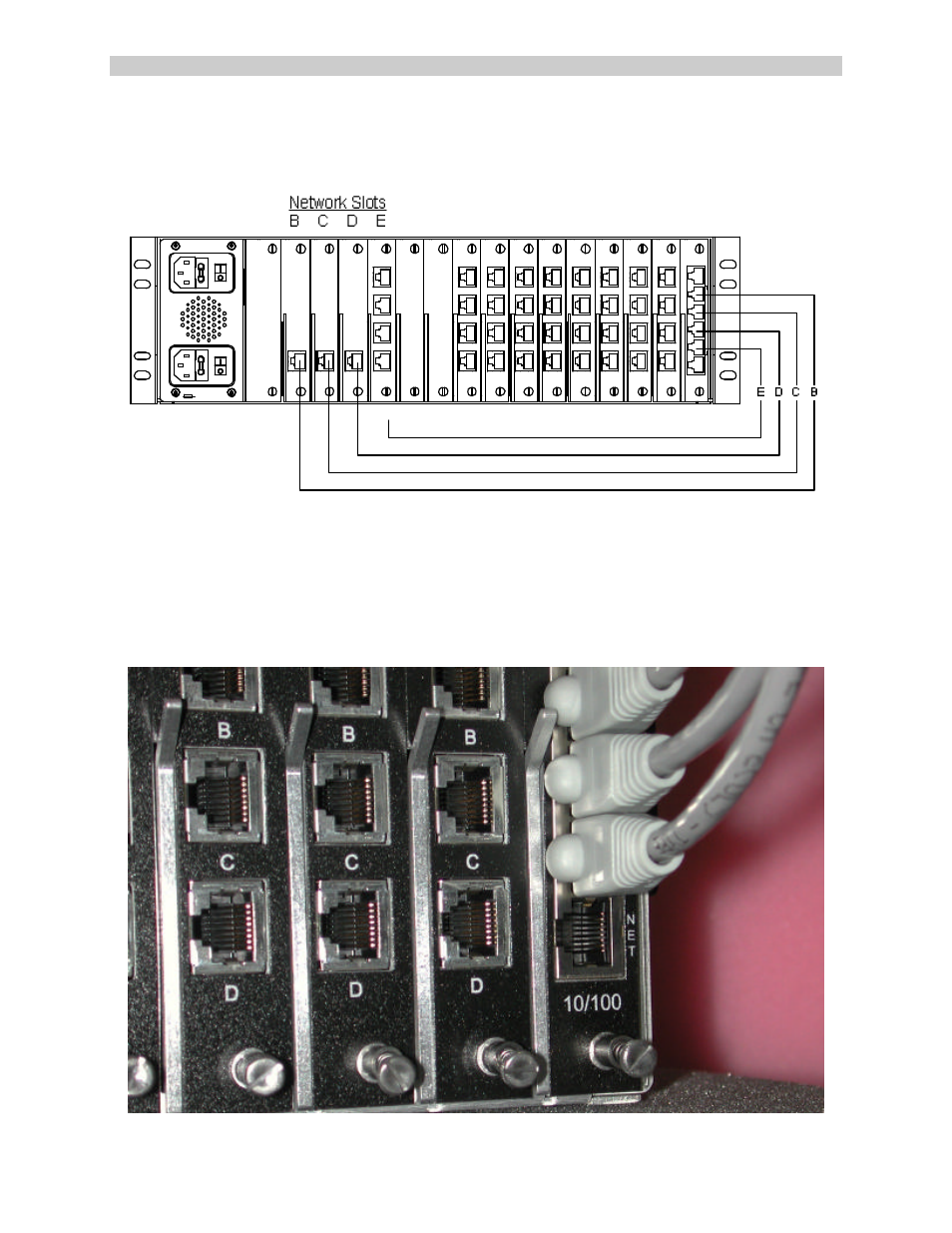

Four (4) 24-inch long CAT5 cables (PN 200.1061; straight-through, fully pinned) are used
between the Channel Extenders and the NETWORK / CONTROL card. One cable is used to
connect each of the Channel Extenders in Slots B through E to the corresponding port (see
below) on the new Network/Control Card.
If a Terminal Card remains in the 3230 system, that Channel Extender port of the Network /
Control Card is not used. Shown above, Network Slot E's Channel Extender position is
"unused"; and this unnecessary cable would not be installed in that position.
1.5.1 10/100 Port (Network)
The 10/100 BaseT Network connection is accessible on the bottom RJ45 connector on the
NETWORK / CONTROL card.
