B-4 OPERATION B-4
J. WIRE FEEDER VOLTMETER SWITCH
-This switch selects the polarity of the wire
feeder voltmeter, if so equipped. When weld-
ing electrode positive (MIG, Outershield and
some Innershield processes) set the switch
to "+".
-When welding electrode negative (most
Innershield electrodes) set the switch to "-".
-This switch has no effect on the welding
polarity. In fact, if the wire feeder being used
does not have a voltmeter, the setting of this
switch has no effect.
CV-400-I

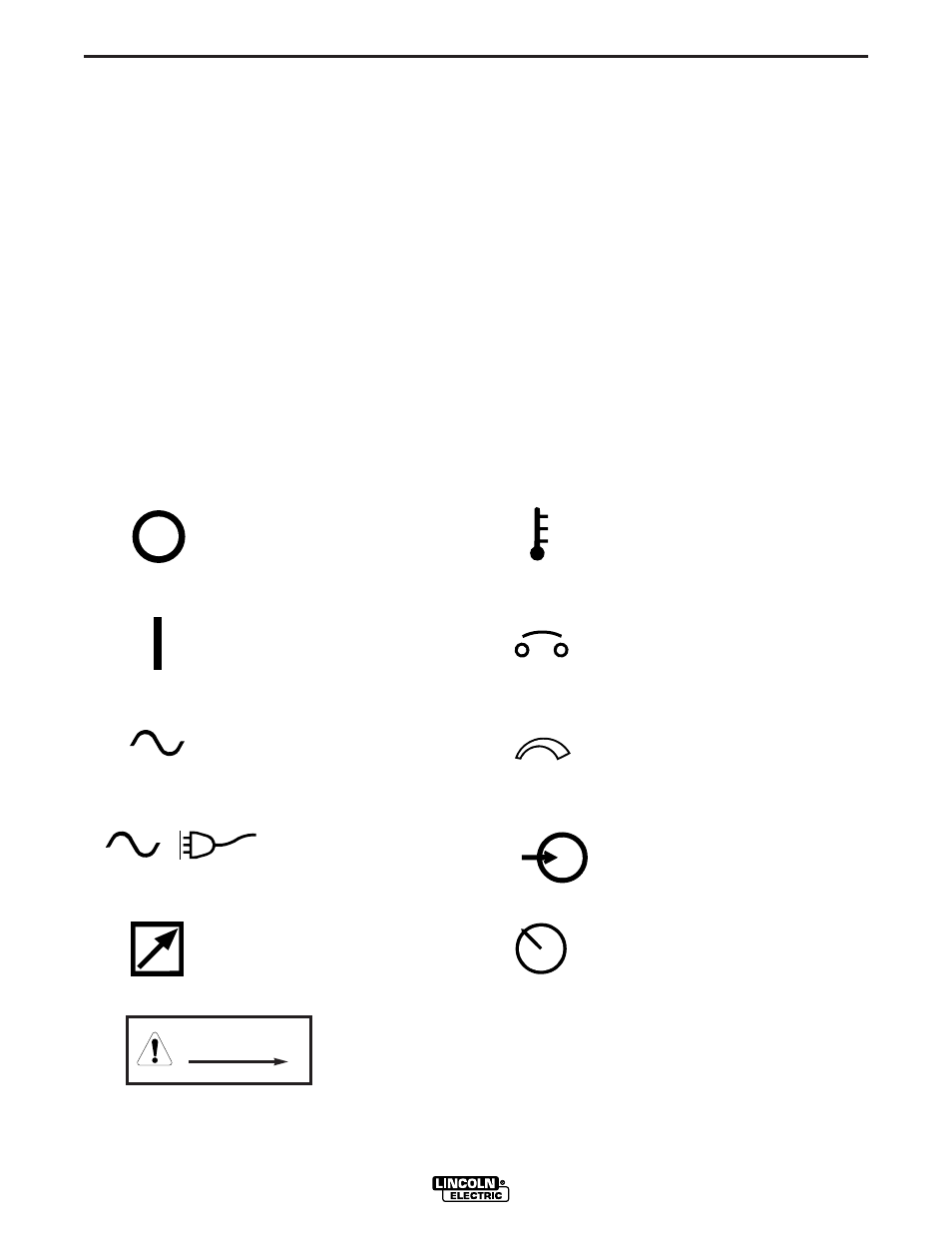

GRAPHIC SYMBOLS THAT APPEAR ON
THIS MACHINE OR IN THIS MANUAL
OFF
ON
AC
POWER
REMOTE OUTPUT
VOLTAGE CONTROL
INDICATES WARNING INFORMATION
LOCATED ON RIGHT CASE SIDE
LOCAL OUTPUT
VOLTAGE CONTROL
CIRCUIT
BREAKER
THERMAL PROTEC-
TION INDICATOR
LIGHT
CLOCKWISE ROTA-
TION INCREASES
VOLTAGE
AC AUXILIARY
POWER INPUT
WARNING
