8
S
TEP
6

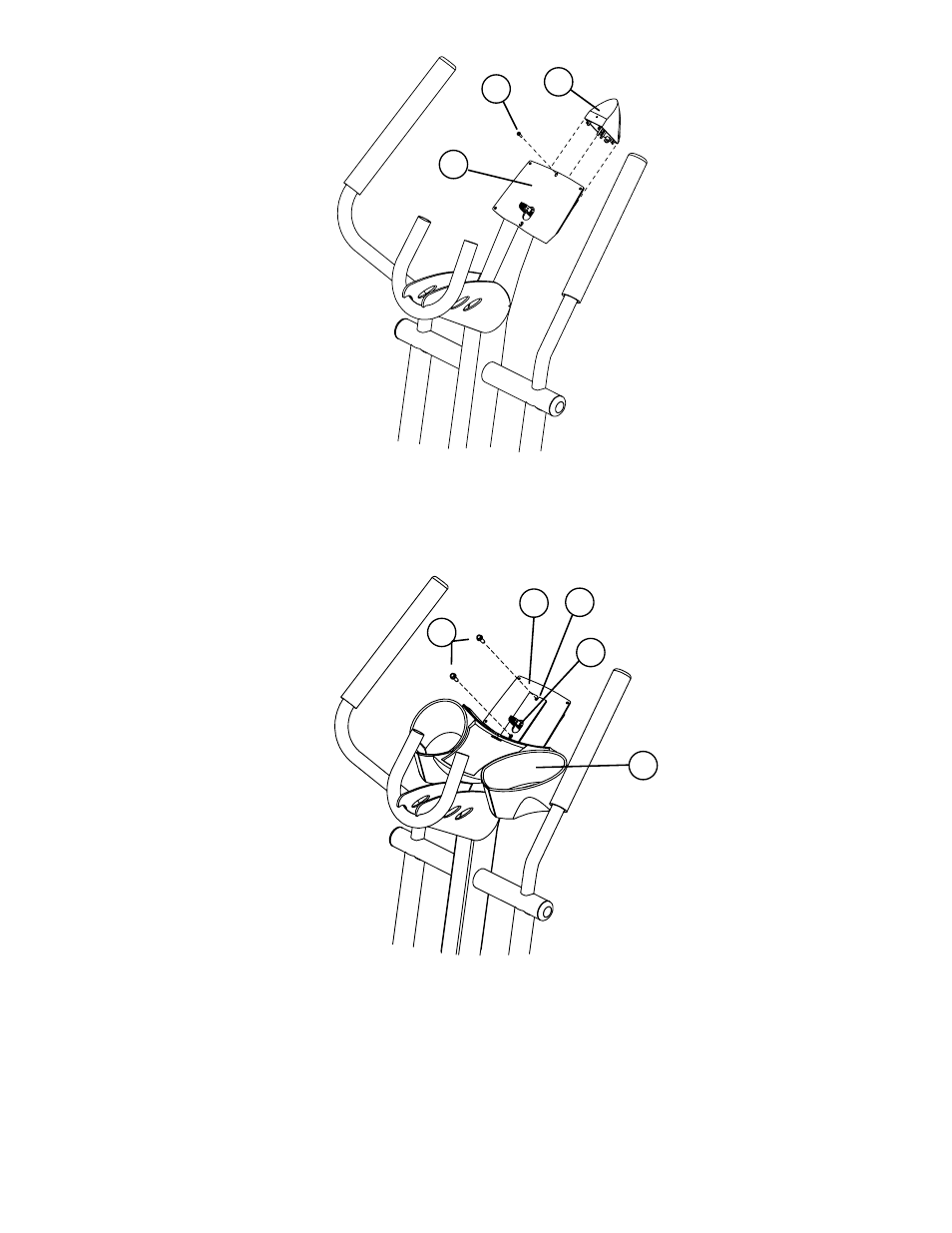

Attach heart rate accessory tray to upright assembly:
NOTE: This step applies to model X5i only.
1. It is helpful to form the threads in the console plate (H) before attaching the accessory tray (G). Using a #3 Phillips screwdriver,
start the (#0) self-tapping screws into the holes. When threads have formed, remove the screws.
2. Feed the upper wire harness (J) through the slot in the accessory tray bracket (K).
3. Line up the holes on the accessory tray bracket (K) with the holes on the console plate (H), and then secure the accessory tray
with the two (#0) self-tapping screws using a #3 Phillips screwdriver.
1.4 S
ETUP
( CONTINUED )
S
TEP
5
Attach Plastic Upright Cap to upright assembly:
1. Push the Plastic Upright Cap (E) into the open end of the tube at the top of the upright tube assembly (A).
2. Line up the hole in Plastic Upright Cap (E) with hole in upright tube assembly and fasten with a (#3) screw.
E
3
A
G
J
K H
O
