10
S
TEP
10
Attach the clevis covers to the clevis brackets:
1. Secure one clevis cover (P) to the clevis bracket (N) using two (#1) phillips tapping screws.
NOTE: Threads are formed in the holes as the screw goes in. A power screw-driver is recommended if available.
2. Repeat procedure for opposite side.
1.4 S
ETUP
( CONTINUED )
S
TEP
9

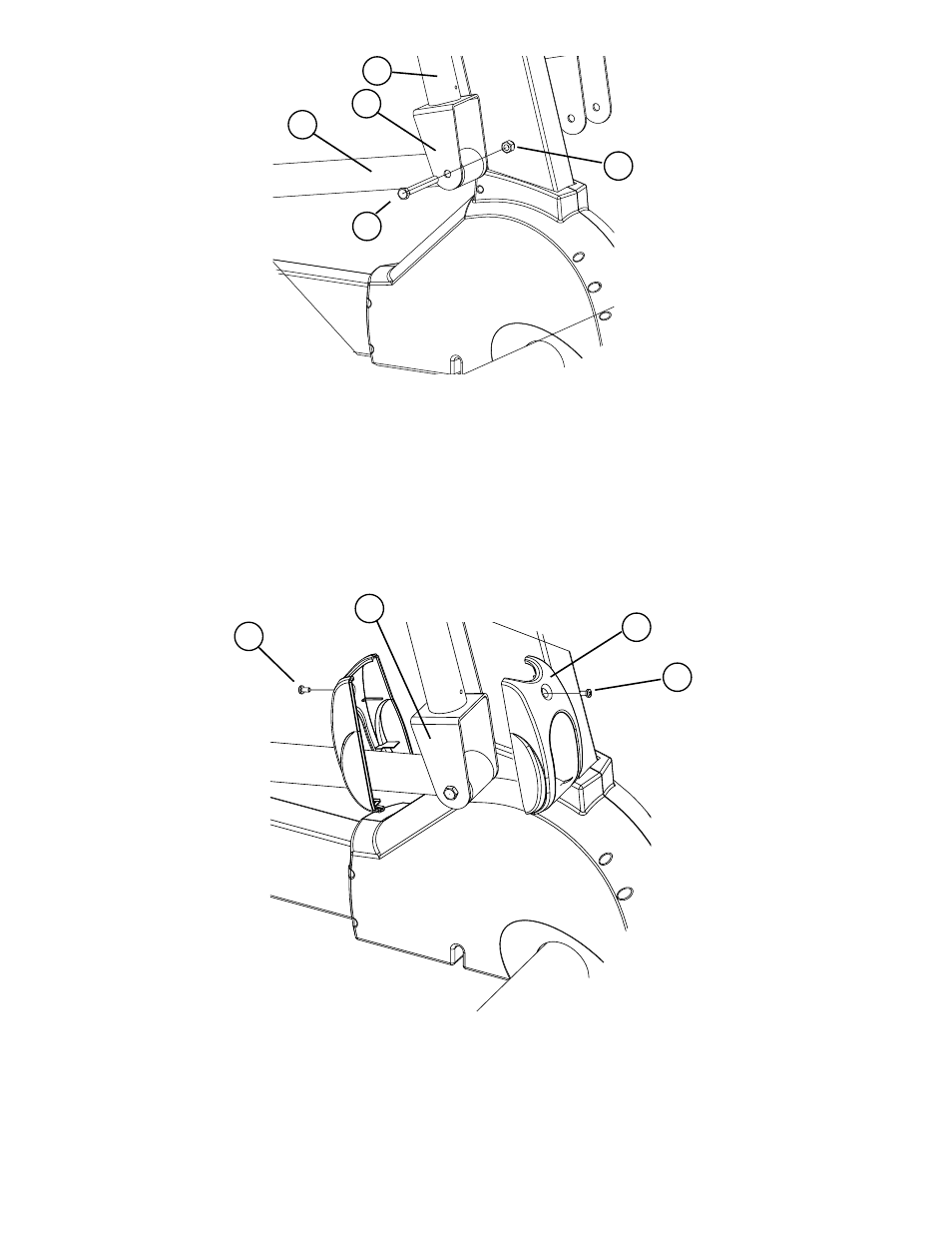

Connect the pedal levers to the upper arms:
1. Insert pedal lever (M) into the clevis bracket (N) of the upper arm (O).
2. Connect the pedal lever (M) to the upper arm (O) using one (#5) 3 1/4" bolt and one (#6) high profile nylock nut. Using a 9/16"
socket wrench, and a 9/16" open ended wrench, tighten securely.
3. Repeat procedure for the opposite side.
M
N
O
5
6
P
1
N
1
