1.4 S
ETUP
( CONTINUED )
S
TEP
3

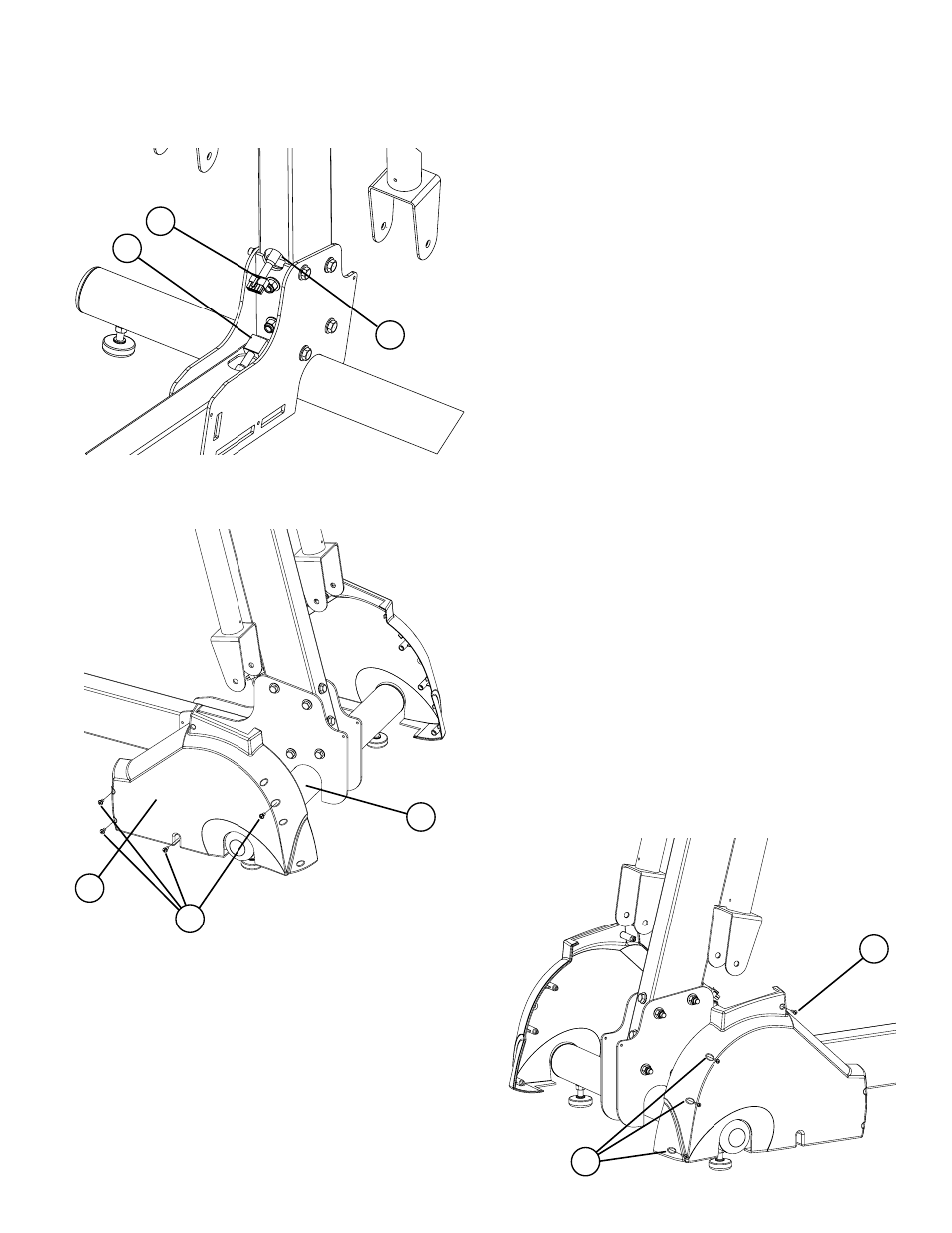

1. Connect the upper wire harness (C) to the lower
wire harness (D). Insert connected plugs of the
wire harnesses into wiring hole on upright tube
assembly (A).
S
TEP
4
1. Attach front shroud (A) to base-frame (B) using
eight (#1) phillips pan head screws (4 on each
side). Using a phillips screwdriver, secure the
shrouds to the base frame (B). Repeat for the
opposite side (same four locations).
2. Using a phillips screwdriver, complete
assembly of front shroud by securing
shroud with four phillips plastic screws
(#3) in the areas indicated by the drawing.
C
D
A
A
1
B
3
3
