5
1.2 P
ARTS
L
IST

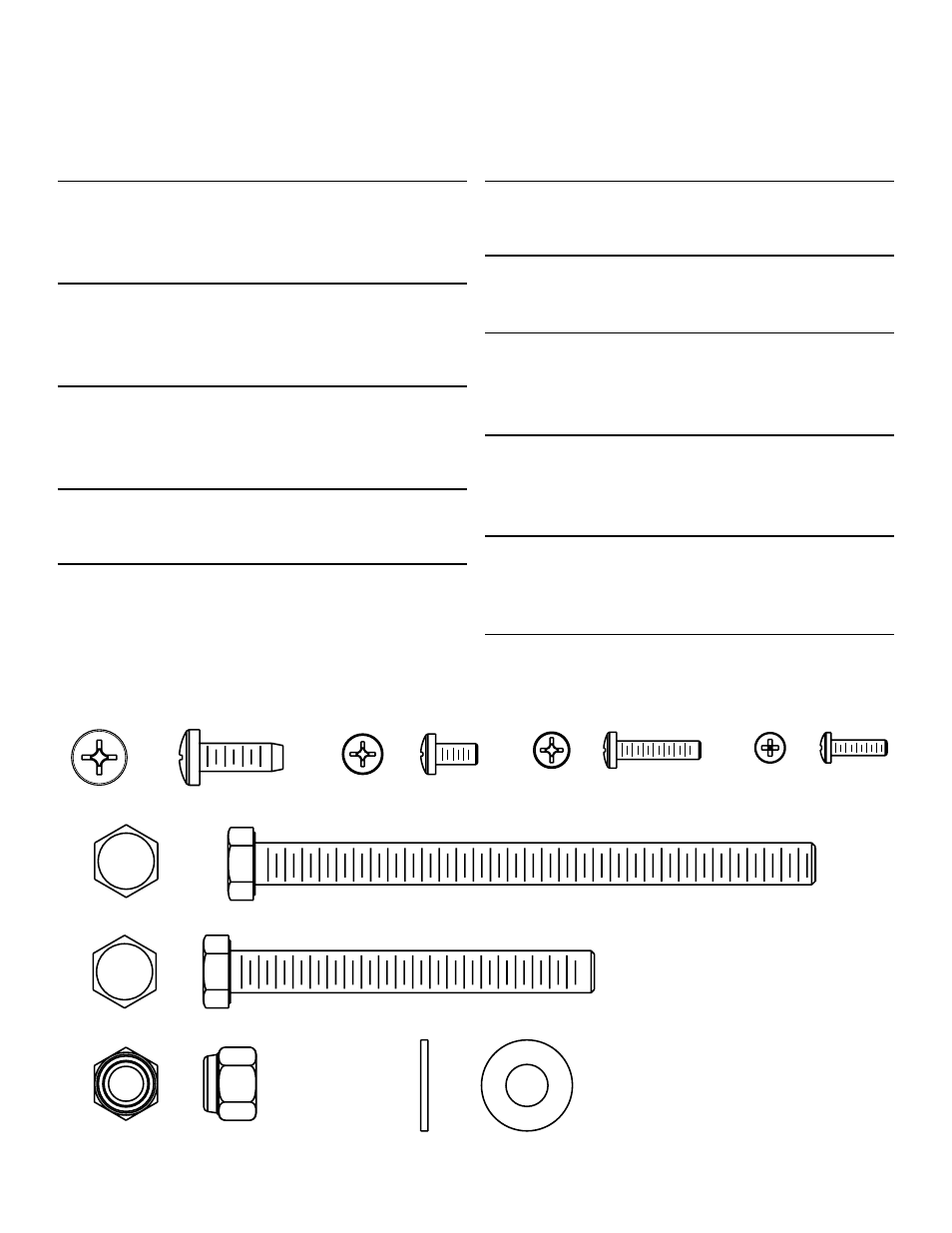

The following parts are illustrated in actual size.
1.3 P
ARTS
D
ESCRIPTION
4.
5.
6. 7.
0.
Accessory Bracket Fastener Qty: 2
1/4"-20 x 3/4" LONG 3234101
1.
Phillips Pan Head Screw – Clevis Cover & Front Shroud
Fastener
Qty: 12
10-32 x 3/8" LONG 3223401
2.
Electronics Console Mounting Fastener
Qty: 4
8-18 x 3/4" LONG Phillips Pan PLT ST 3225905
3.
Upright Cap & Front Shroud Mounting Fastener
Qty: 5
6-20 x 1/2" LONG Phillips Pan PLT ST 3226003
4.
Upright Mounting Bolt Qty: 2
3/8 – 16 x 5" LONG 3223301
5.
Front Clevis/Pedal Lever & Upright Mounting BoltQty: 6
3/8 – 16 x 3-1/4" LONG 3223310
6.
Nylock Nut – High Profile Qty: 8
3/8 - 16 3102802
7.
3/8" Washer Qty: 12
3102514
Not illustrated
Plastic Upright Cap – Black
Qty: 1
Cap, Tube 2 x 4 Custom 6961001
Not illustrated
Front upright shroud – Gray
6997201 – Left (1)
6997301 – Right (1)
Not illustrated
Cover, Clevis 1.75" Top/Bottom – Black
6914901 – Top (2)
6915001 – Bottom (2)
0. 1. 2. 3.
