11
Section 1: Assembly & Set-Up
6/12/13 PR1660, PR1672 & PR1690 Powered Rakes 314-216M
Table of Contents

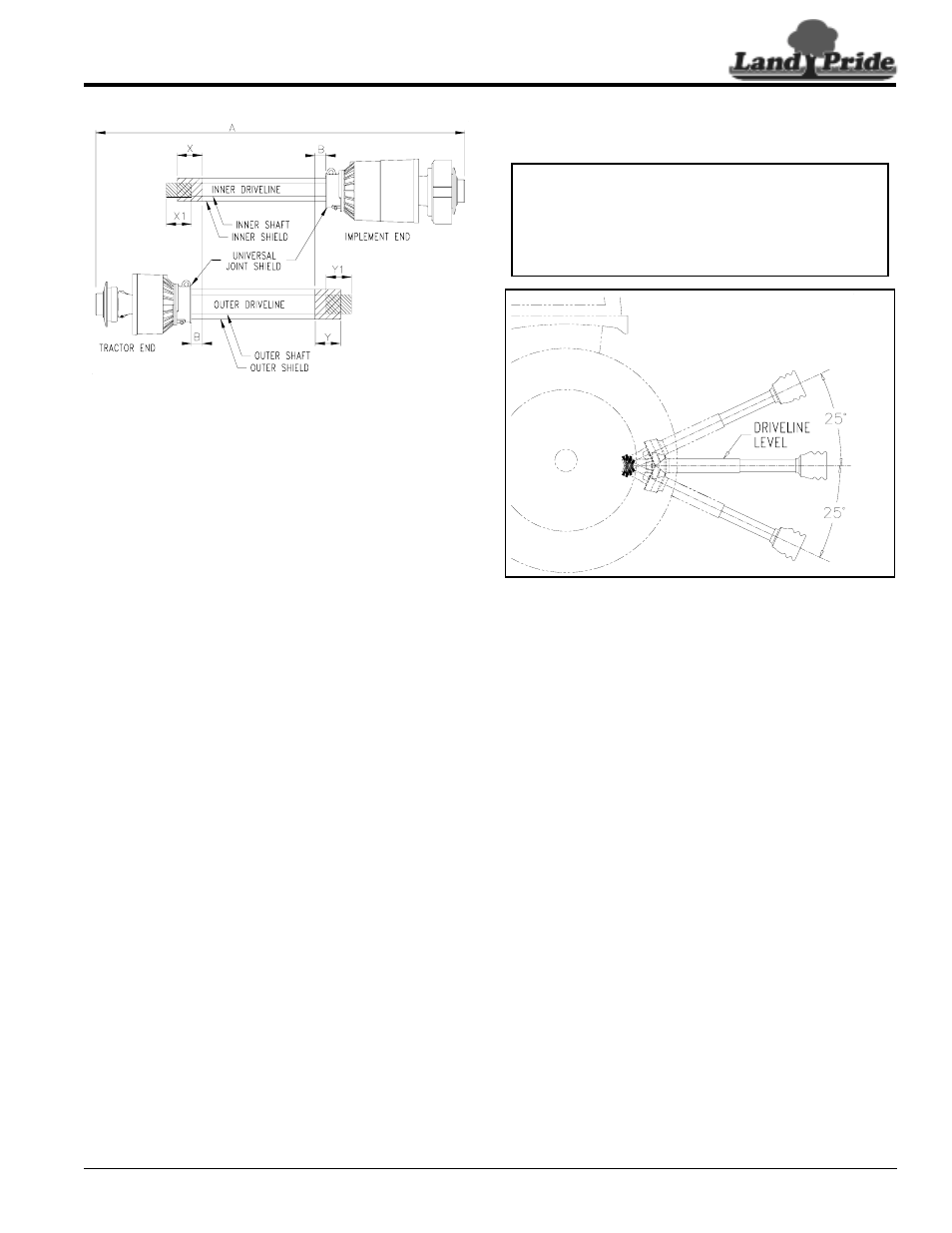

Driveline Shortening
Figure 1-2
8. Remove all burrs and cuttings.
9. Apply multi-purpose grease to the inside of the outer
shaft and reassemble driveline.
10. Attach driveline to splitter gearbox input shaft and
tractor PTO shaft. Make sure driveline safety chains
are properly hooked. Refer “Driveline Installation”
on page 10 for detailed instructions.
11. Start tractor and raise rake just enough to remove
support blocks.
22227
Check Driveline Interference
Refer to Figure 1-3:
Maximum PTO Driveline Movement During Operation
Figure 1-3
1. Slowly engage tractor hydraulic 3-Point control lever
to lower rake while checking for sufficient drawbar
clearance. Move drawbar ahead, aside, or remove if
required.
2. Raise and lower implement to find maximum
extended driveline length. Check to make certain the
driveline does not exceed the maximum allowable
length and 25
o
up or down.
3. If needed, set tractor 3-Point lift height to keep
driveline from exceeding the maximum allowable
length and 25
o
up.
IMPORTANT: Avoid premature driveline breakdown.
A driveline that is operating must not exceed an
angle of 25 degrees up or down while operating
3-Point lift. See Figure 1-3 below. If needed, set
tractor 3-Point hitch lift height so that the driveline
does not exceed 25
o
up.
24872
