Section 4: Maintenance & Lubrication
PR1660, PR1672 & PR1690 Powered Rakes 314-216M
6/12/13

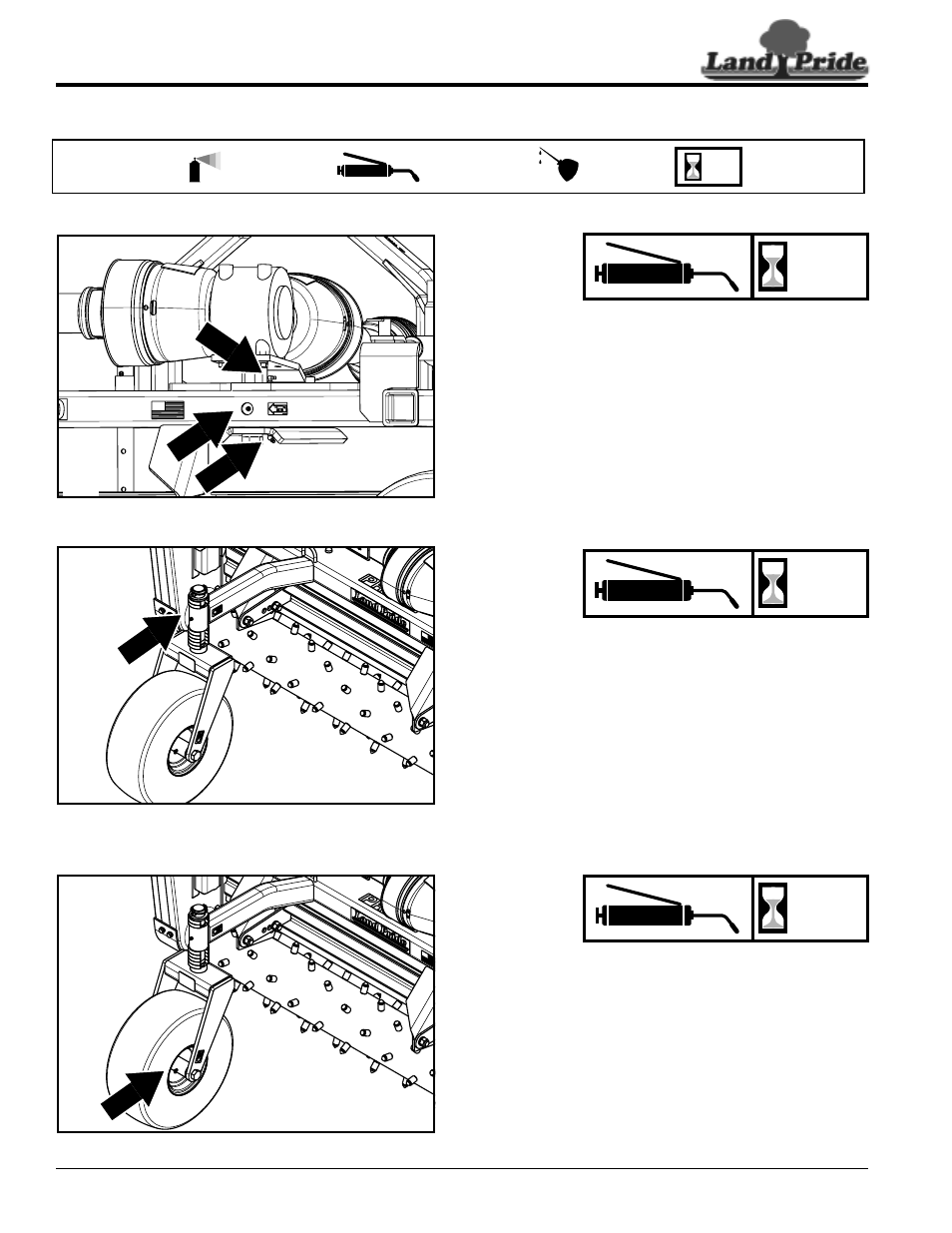

Lubrication Points
Pivot
Grease pivot point every 25 hours
Three grease zerks
Type of Lubrication: Multi-Purpose Grease
Quantity: Add grease until grease begin to emerge from
either top or bottom bushings
Gauge Wheel Spindle
Grease gauge wheel spindle every 25 hours
One grease zerk for each gauge wheel
Type of Lubrication: Multi-Purpose Grease
Quantity: Add grease until grease begin to emerge from
either top or bottom bushings.
24505
Gauge Wheel Axle
Grease gauge wheel axle every 25 hours
One grease zerk for each gauge wheel
Type of Lubrication: Multi-Purpose Grease
Quantity: Add grease until grease begins to emerge from
either side of the axle hub.
50
Multi-purpose
spray lube
Multi-purpose
grease lube
Intervals in hours
at which lubrication
is required
Lubrication
Legend
Multi-purpose
oil lube
25
Hours
25
Hours
25
Hours
24504
24504
