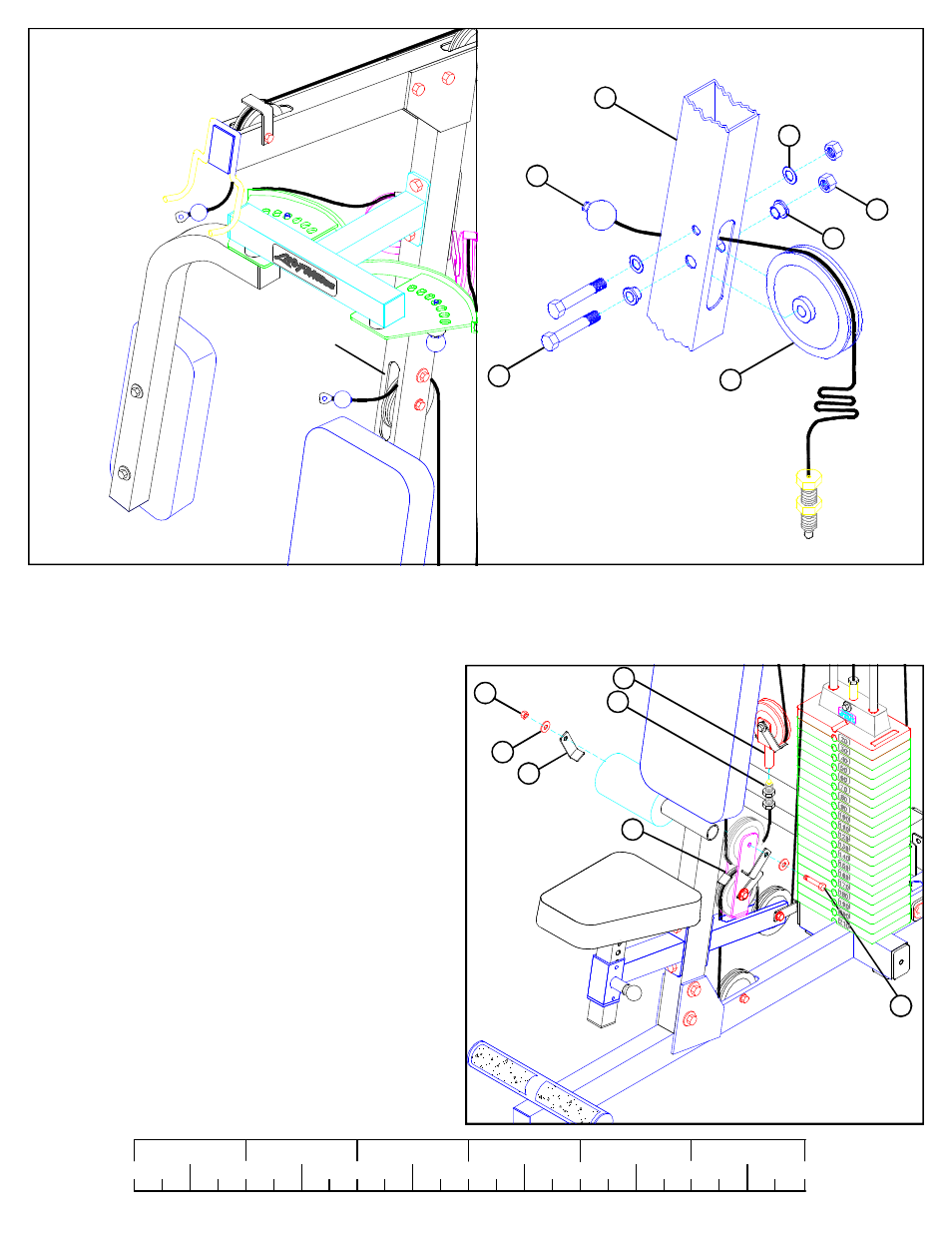

STEP 31:
FIGURE 31
26
0 1 2 3 4 5 6
1/2 1/2 1/2 1/2 1/2 1/2
STEP 32:
FIGURE 32
DETAIL 31
45 AB CABLE
90 3/8 X 2-3/4”
50
69
82
48
SEE DETAIL 31
• Securely assemble the ball end of the AB CABLE (45) and one 4-1/2” PULLEY (48) to the FRONT UPRIGHT (29) using two 3/8 X 2-3/4”
BOLTS (90), two 3/8” FLANGE SPACERS (69), two 3/8” WASHERS (80), and two 3/8” LOCKNUTS (82). (NOTE: The AB CABLE (45)
should be routed underneath the retaining bolt as shown in DETAIL 31.)
29
• Screw the threaded end of AB CABLE (45) approximately 1” into
the end of the PULLEY BRACKET (26) and tighten jam nut se-
curely as shown in FIGURE 32.
IMPORTANT! Make sure the cables are running
in the grooves of all pulleys.
3/8 X 2” 89
80
82
AB CABLE 45
26
• Route the AB CABLE (45) around the FLOATING PULLEY
BRACKET (55) using one 4-1/2” PULLEY (48), one 3/8 X 2”
BOLT (89), two 2-7/8 X 1” CABLE CLIPS (67), two 3/8” WASH-
ERS (80), and two 3/8” LOCK NUTS (82). See FIGURE 32.
55
67
