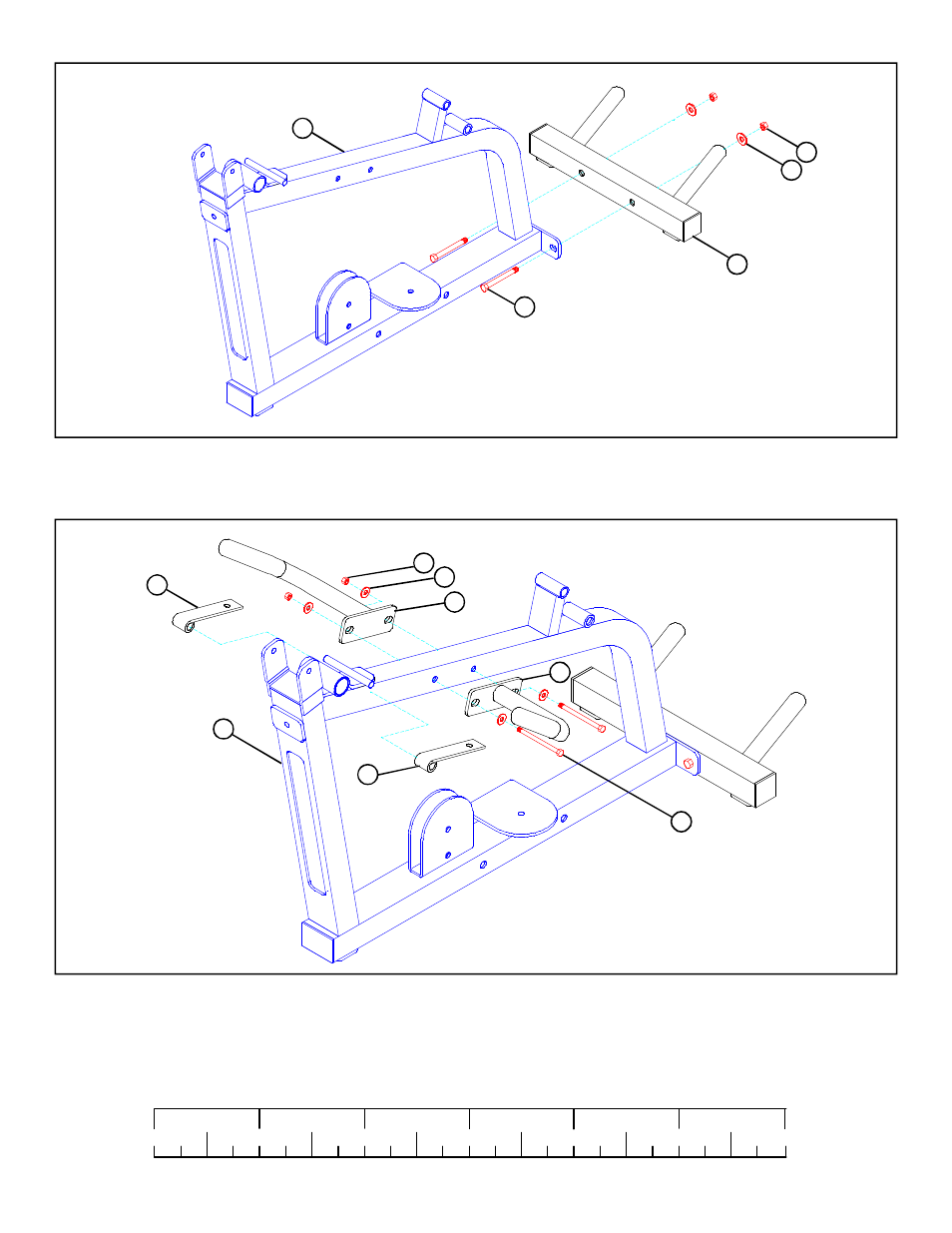

STEP 11:
FIGURE 11
14
• SECURELY assemble the REAR BASE LEG (31) to the LEG FRAME (34) using two 1/2 X 3” BOLTS (94), two 1/2” WASHERS (84), and
two 1/2” LOCK NUTS (85) as shown in FIGURE 11.
0 1 2 3 4 5 6
1/2 1/2 1/2 1/2 1/2 1/2
STEP 12:
FIGURE 12
• SECURELY assemble the LEFT & RIGHT LEG EXTENSION HANDLES (16 & 15) to the LEG FRAME (34) using two 3/8 X 3-1/4”
BOLTS (91), four 3/8” WASHERS (80), and two 3/8” LOCK NUTS (82). See FIGURE 12.
• Slide two HINGE TABS (76) onto the LEG FRAME (34) as shown in FIGURE 12. (NOTE: The “hinge” part of the HINGE TAB should
face downward.)
85
86
31
34
94 1/2 X 3”
95 3/8 X 3-1/4”
15
76
34
76
16
80
82
