STEP 10:
13
• SECURELY assemble one 1/2 X 3-1/2” SPRING PIN (63) to the PRESS ARM (8) as shown in FIGURE 10.

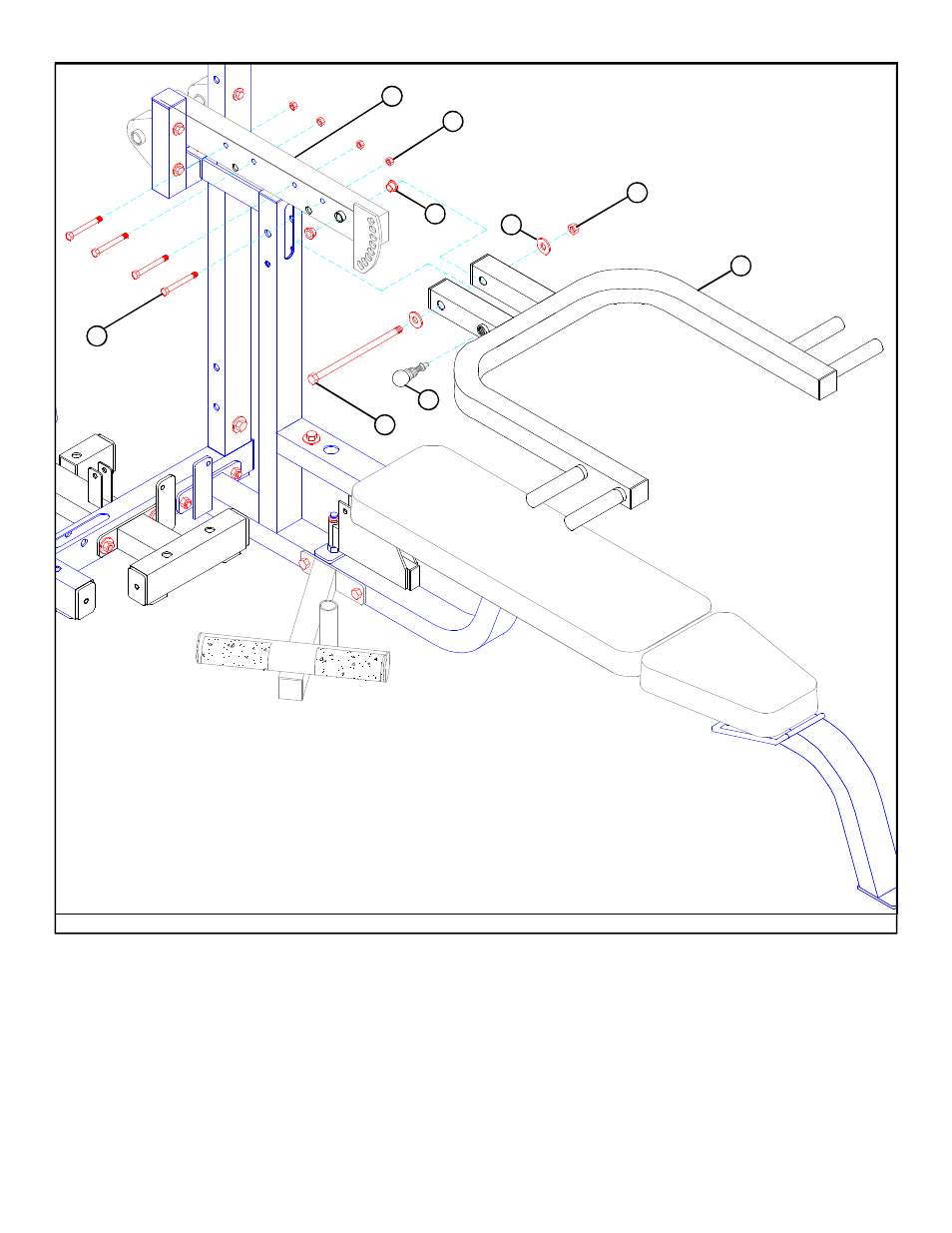

FIGURE 10
• SECURELY assemble the PRESS ARM (8) to the PRESS ARM ADJUST (36) using one 1/2 X 7-1/2” BOLT (98), two 1/2” WASHERS (84),
two 1/2” FLANGE BEARINGS (70), and one 1/2” LOW HEIGHT LOCK NUT (86). (NOTE: SECURELY tighten, then back nut off 1/4
to allow the PRESS ARM to rotate freely.)
63
8
70
36
86 1/2” LOW HEIGHT
98 1/2 X 7-1/2”
84
82
90 3/8 X 2-3/4”
• SECURELY assemble four 3/8 X 2-3/4” BOLTS (90) and four 3/8” LOCK NUTS (82) to the PRESS ARM ADJUST (36) as sjown in FIGURE 10.
