LTRx-512 Installer’s Guide

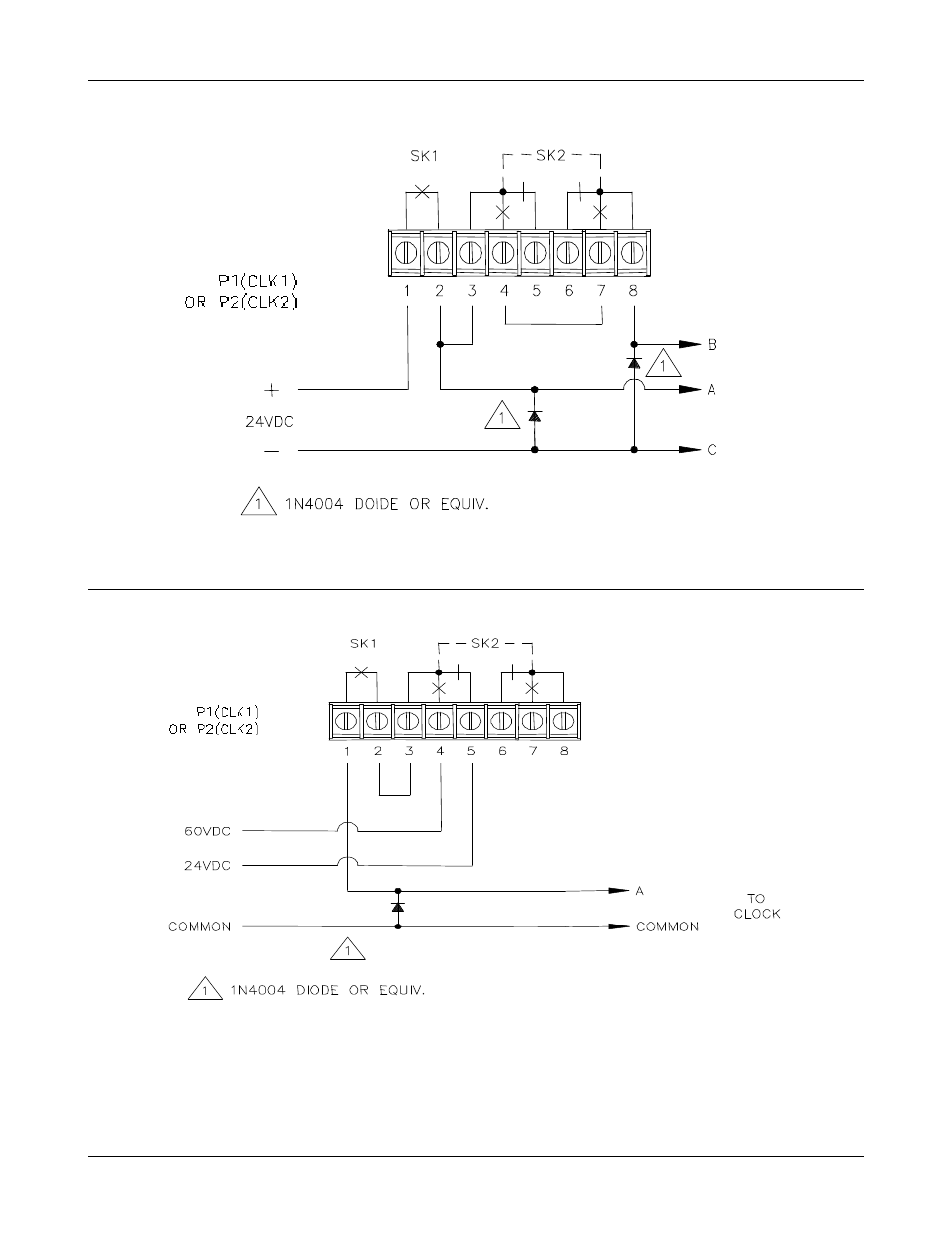

Wiring Diagrams
37
TYPE 20 -
THREE WIRE MINUTE IMPULSE (44
TH
MIN.)
All circuits should be fused or protected by a circuit breaker (10Amp maximum)
TYPE 21 -
CINCINNATI ‘D1’
All circuits should be fused or protected by a circuit breaker (10Amp maximum)
