LTRx-512 Installer’s Guide
6
Rack Mount
The LTR8-512 and LTR8-512M come with two L-shaped brackets (optional on the
LTR4-512) so you can install your Master in a standard 19-inch rack
To install the Master in a 19-inch rack
• Place the Master on its back with the display unit facing up and the keypad to the right
• Remove the two screws from just above the display unit
• Lift the display unit up and away from you. Note that two rivets at the bottom of the
cover prevent you from lifting it straight up
• Unplug the ribbon power cable from the back of the display unit
• Set the display unit aside
• Detach the display unit from the wall mount cover by removing the 4 screws on the back
of the display unit (IMPORTANT: These screws are the correct length so they do not
interfere with the circuit board inside the display unit. Using any other screws voids any
warranty)
• Remove the rectangular knockout near the top of the power supply
• Using the 4 screws that you removed from the display unit, attach the display unit to the
side of the power supply. You can fit a #1 Philips screwdriver with an 8 inch blade
through the holes opposite the 4 screw holes
• Plug the ribbon cable from the power supply into the display unit
• Remove the two screws from the side of the display unit

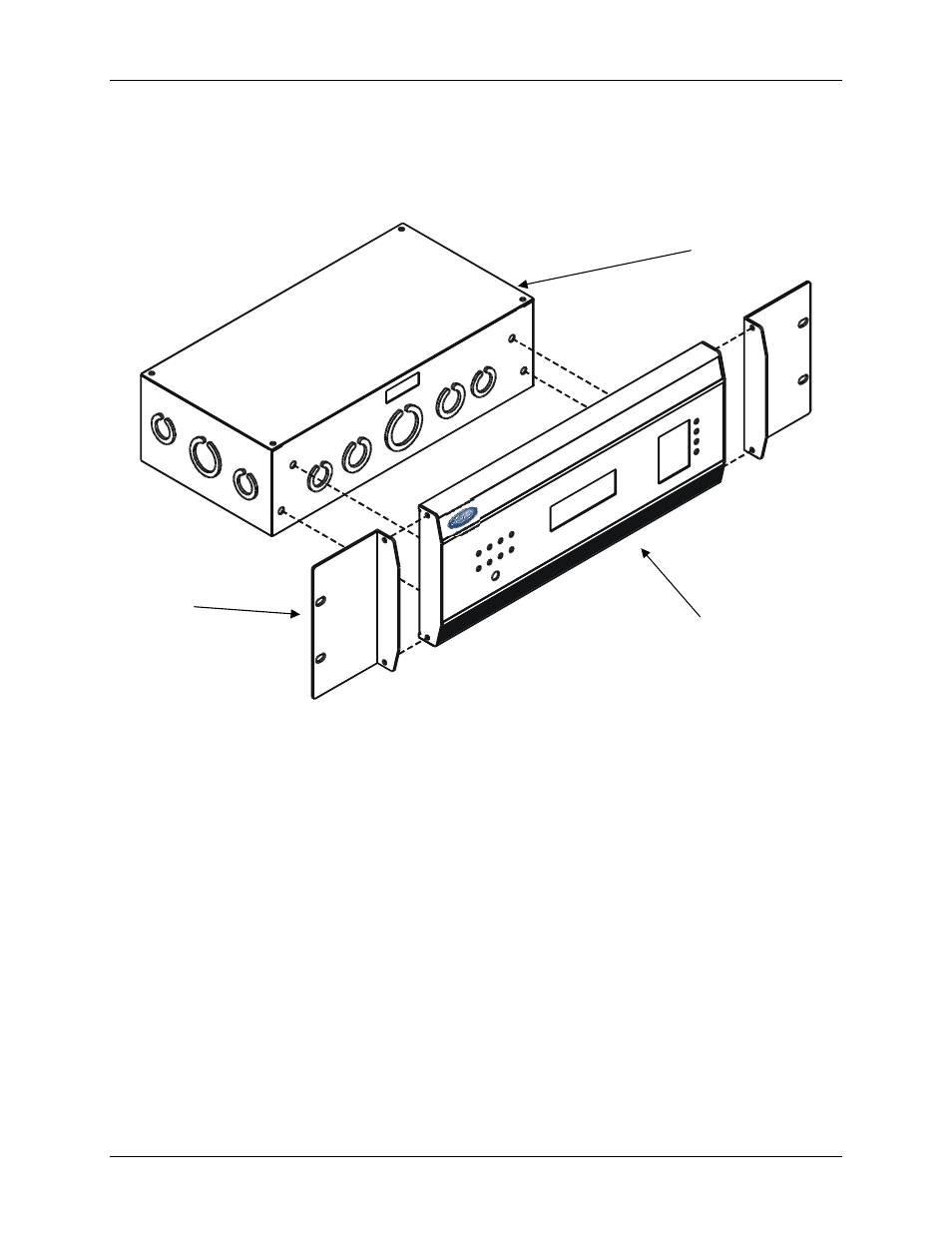

Power Supply Box
Display Unit
Brackets
