LTRx-512 Installer’s Guide

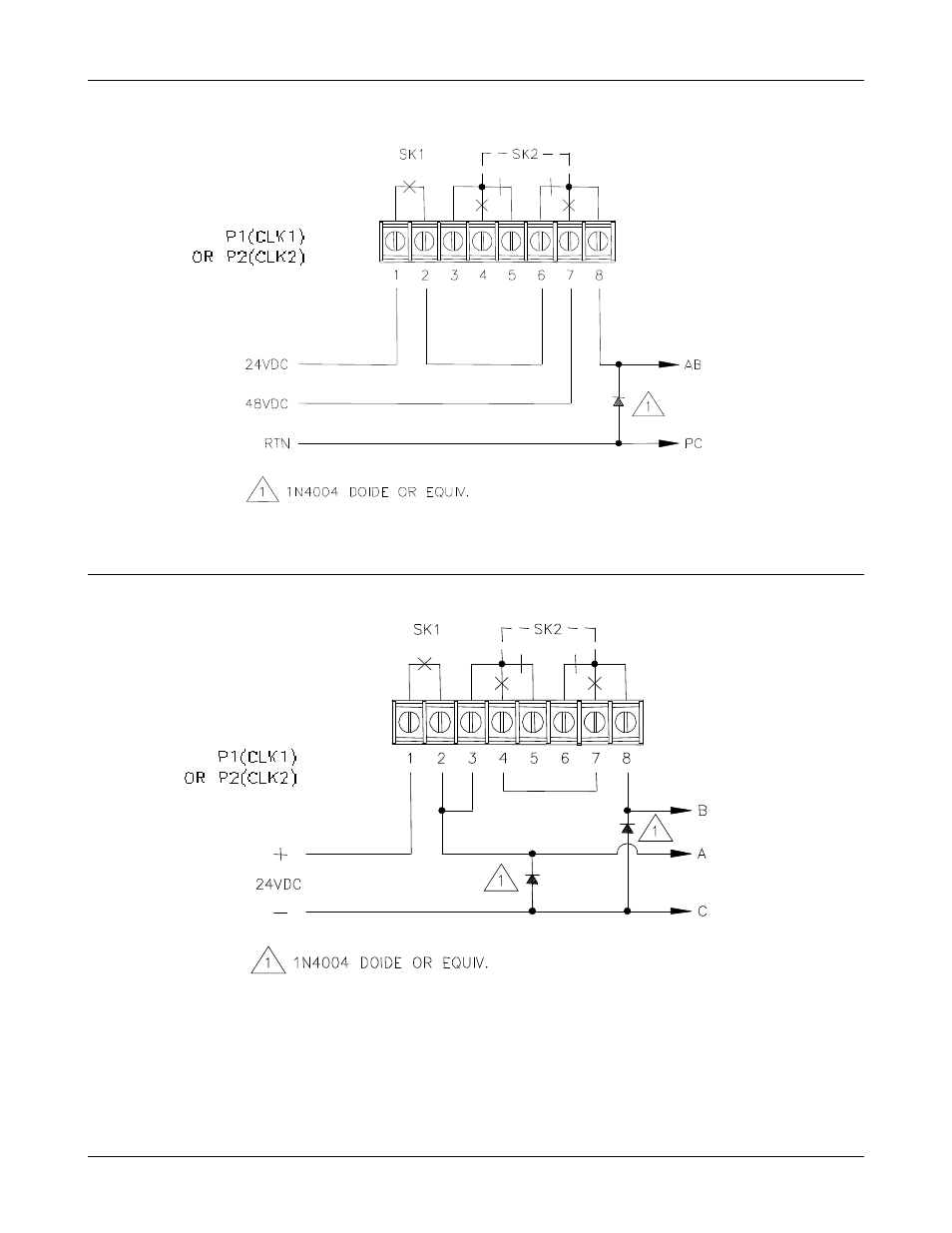

Wiring Diagrams
28
TYPE 04 -
STANDARD ELECTRIC TIME AR-2A TWO WIRE DUAL VOLTAGE
All circuits should be fused or protected by a circuit breaker (10Amp maximum)
TYPE 05 -
THREE WIRE MINUTE IMPULSE (58
TH
MIN.)
All circuits should be fused or protected by a circuit breaker (10Amp maximum)
