LTRx-512 Installer’s Guide

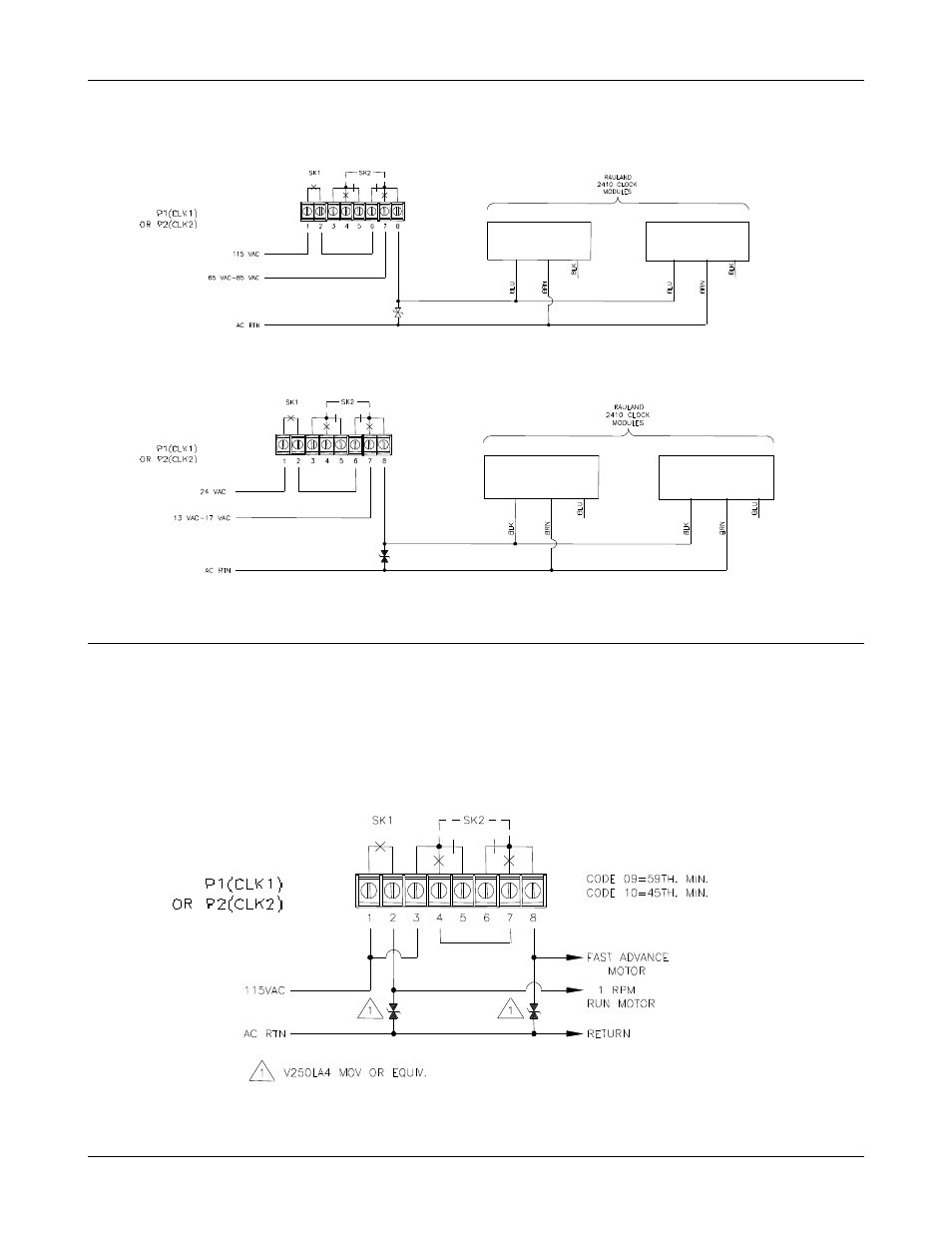

Wiring Diagrams
30
TYPE 08 -
RAULAND 2410 DIGITAL CLOCKS (24VAC and 115VAC)
115VAC TYPE
All circuits should be fused or protected by a circuit breaker (10Amp maximum)
24VAC TYPE
All circuits should be fused or protected by a circuit breaker (10Amp maximum)
TYPE 09 -
SIMPLEX 59
TH
MINUTE DUAL MOTOR
TYPE 10 -
SIMPLEX 45
TH
MINUTE DUAL MOTOR
TYPE 27 -
SIMPLEX 2310 DUAL MOTOR
Same hourly corrections as Type 09, but with addition of 12-hour corrections, as for
Type 03.
All circuits should be fused or protected by a circuit breaker (10Amp maximum)
