8 5 0 i R U s e r M a n u a l
850iR User Manual | 4
SPEAKER OUTPUTS
250 400 700 1K 1K4 2K5 4K 6K
+10
0
-10
OFF OFF OFF OFF ON ON ON ON
VOL.
ADJ. ALD OUT AUX OUT
VOL.
ADJ.
COMPUTER
AUDIO INPUTS
TV/VCR CD/DVD
800iX
INPUT
PAGING INPUT
ADJ
DC POWER CHARGERS
24VDC
L L R R SENSOR INPUTS
SENSOR
SHORT
1 2 3 4

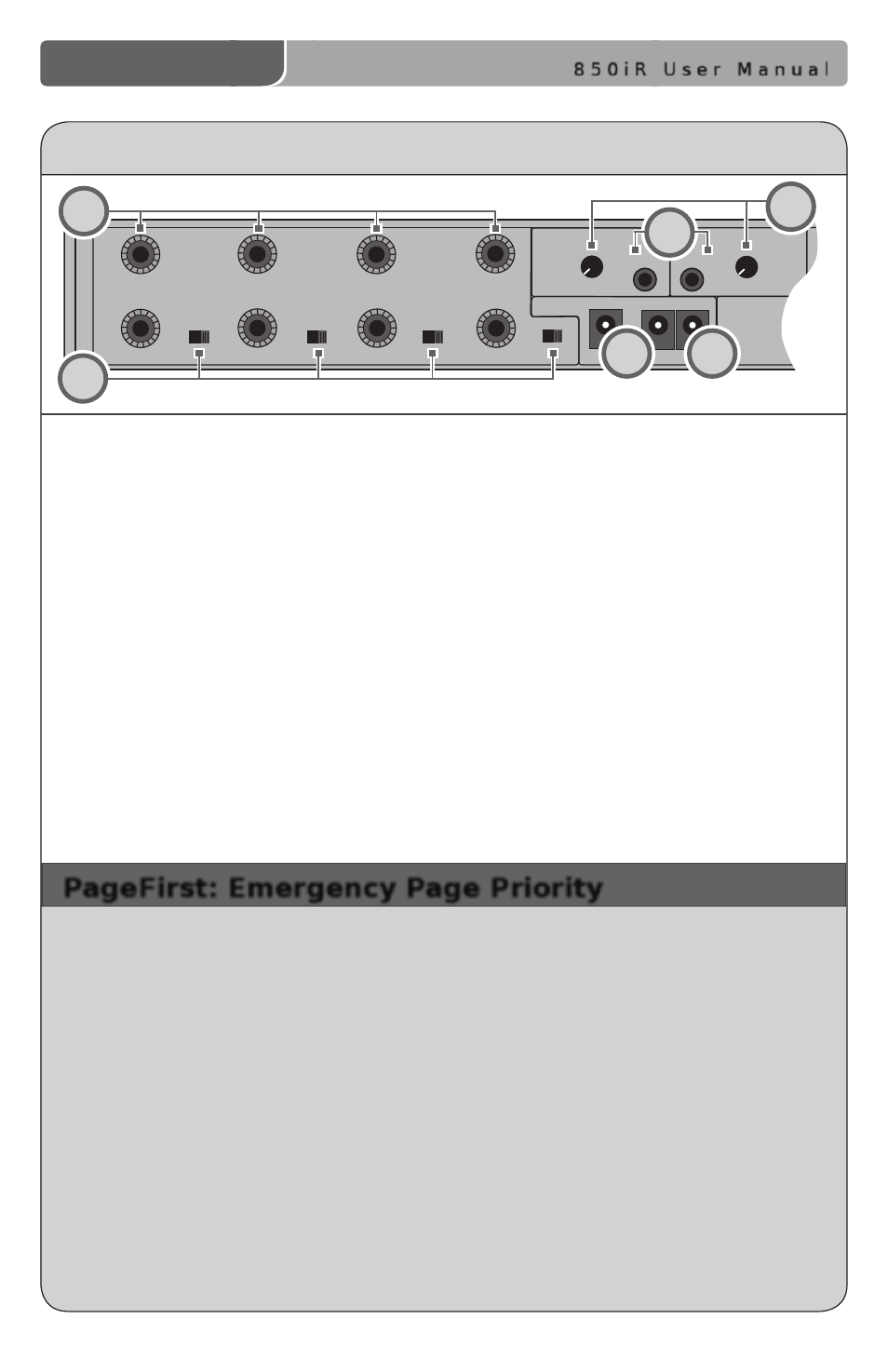

REAR PANEL CONTROLS
1. SPEAKER OUTPUTS (1-4): These
binding post connectors are used to
connect the 850iR to the loudspeakers.
Depending on the speaker package, all
the outputs may not be used.
2. SPEAKER ON/OFF: These individual
speaker switches can be used to turn
off the audio in a specific area of the
classroom where there may be a
learning group or quiet time.
3. DC POWER: Plug the 24 V power
supply into this jack.
4. CHARGERS: These jacks can be used
to charge the optional LightMic or
handheld mic as an alternative to
connecting them to the REDMIKE
cradle charger.
5. ALD/AUX AUDIO OUT: These output
jacks send audio signal to external
equipment such as a recorder or an
assistive listening device like the
LES-370 Personal FM System.
6. ADJ: These controls adjust the output
evel of the audio being sent out of
the receiver/amplifier via the
ALD/AUX AUDIO OUT jacks.
PageFirst: Emergency Page Priority
This optional feature interfaces with an independent classroom paging
system. When the page is broadcast, the system is muted, ensuring important
and emergency school-wide messages are never missed.
How it works:
1. PageFirst sensor clip is hung around the lead wires attached to the in-room
paging speaker.
2. The clip is hard-wired to the 850iR.
3. As a page is broadcast, the sensor clip detects the audio signal though
induction and immediately mutes the 850iR.
4. When the page is over, the audio to the 850iR returns to normal.
(For full installation instructions refer to the install sheet included with the
optional PageFirst sensor.)
2
3 4
5
1
6
