LES 850iR Classroom Amplification System

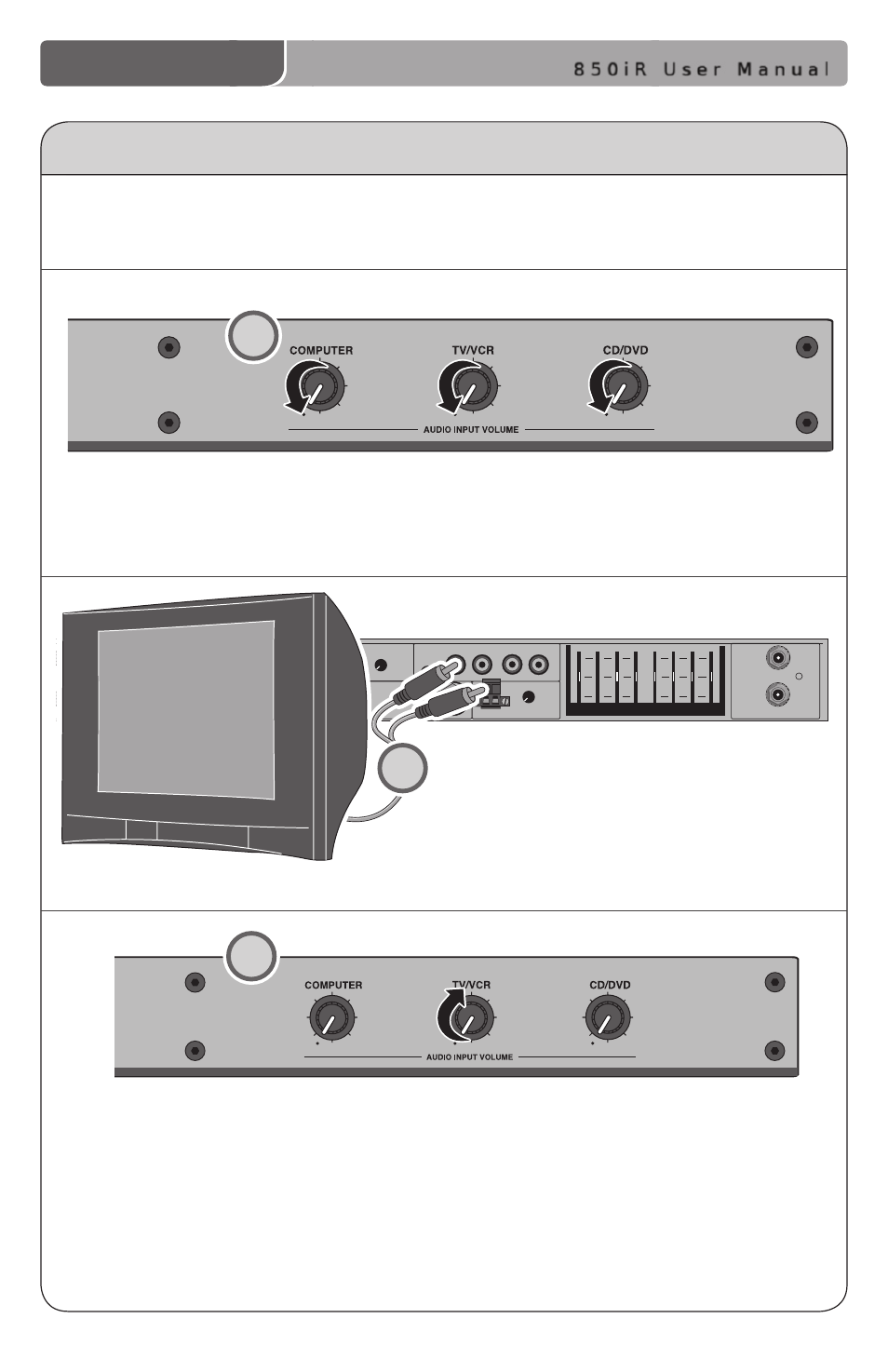

Below are instructions on how to connect an external audio device
like a TV/VCR, CD/DVD or computer directly into the 850iR.
AUDIO INTEGRATION (cont’d)
1
2
1. Turn
the audio input volume controls on the front panel all the
way down.
2. Connect
a patch cable (not included)
from the audio source into the
corresponding input jack on the rear
panel of the 850iR.
3. With
both the 850iR and audio source power on, adjust
the corresponding volume control until the desired level is
achieved. NOTE! Be careful to not to set the volume too high,
as this can distort the speaker and potentially cause damage.
LES 850iR Classroom Amplification System
3
