8 Manual No. 357-178M 7/18/08
Land Pride
Assembly Instructions
■
Final Assembly
Refer to Figure 1 on page 1:
1.
Reconnect ground cable to negative battery post.
2. Turn ignition switch on without starting engine.
!
CAUTION
Headlights become extremely hot while on and can burn a
person’s skin upon contact. Never touch headlights while they
are hot. Always allow headlights to cool before making any
adjustments.
Refer to Figure 22:
3.
Test headlight switch by pushing in at the bottom of
switch actuator. Headlights should turn on. Push in at
the top to turn lights off.
Refer to Figure 3 on page 3:
4.
Reverse wiring at the switch actuator terminals (#2) if
lights work in reverse.
Headlight Beam Adjustment
!
CAUTION
Headlights become extremely hot while on and can burn a
person’s skin upon contact. Never touch headlights while they
are hot. Always allow headlights to cool before making any
adjustments.
Refer to Figure 22:
The headlight beams can be adjusted left or right and up
or down to the operator’s preference.
1. Loosen screws (#1) and adjust beams left or right.
Retighten screws when finished.
2. Loosen screws (#2) on both sides of headlights and
adjust beams up or down. Retighten screws when
finished.

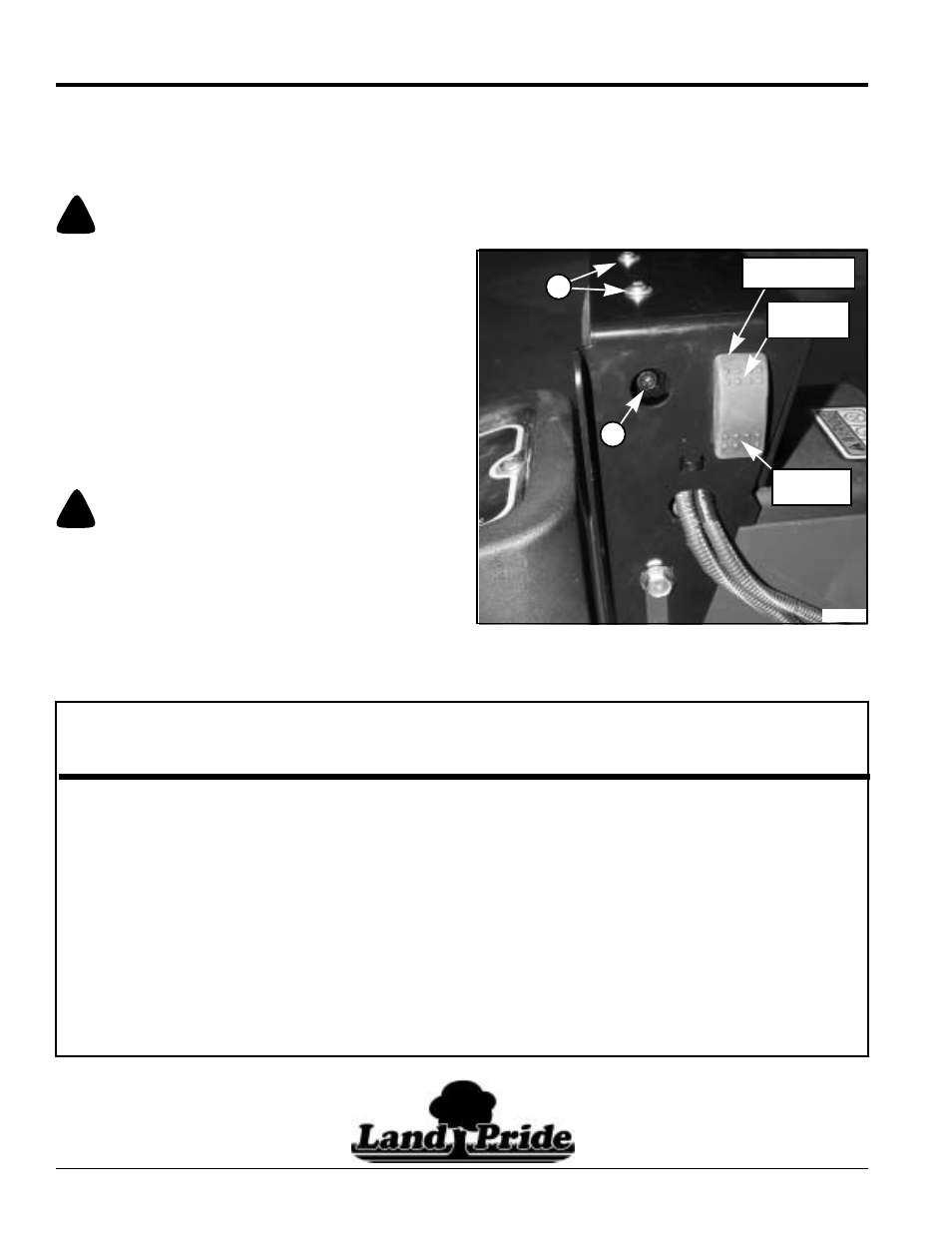

Headlight Adjustments
Figure 22
2
1
Push Here
To Turn On
Headlight
Switch Actuator
Push Here
To Turn Off
24960
Kit No. 357-160A Headlight Kit, Z-Mowers
Qty. Part No. Part Description
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
1 357-178M MANUAL LIGHT KIT Z-MOWERS
1 357-450D LIGHT BRCKT RH, Z MOWER
1 357-461D LIGHT BRCKT LH, Z MOWER
2 357-634D ADAPTER PLATE LIGHT KIT
16 800-060C CABLE TIE .19" X 14.25" 3" DIA 50 LB.
2 800-241C CLAMP WRM DRV #48SS (1.63-3.5)
4 801-218C CRPHMS 10-24 x 1/2" SS BLACK
4 802-149C RHSNB 3/8-16X3/4 GR5
4 802-185C HFSS 3/8-16X3/4 LG
4 803-001C NUT HEX 10-24 PLT
4 803-209C NUT FLANGE LOCK 3/8-16 PLT
8 804-046C WASHER FLAT #10 SAE PLT
4 804-054C WASHER LOCK #10
1 833-269C SWITCH ROCKER SPST
1 833-271C SWITCH ACTUATOR
2 833-275C HEADLIGHT
1 833-444C WIRE HARNESS, LIGHT KIT Z-MOWER
