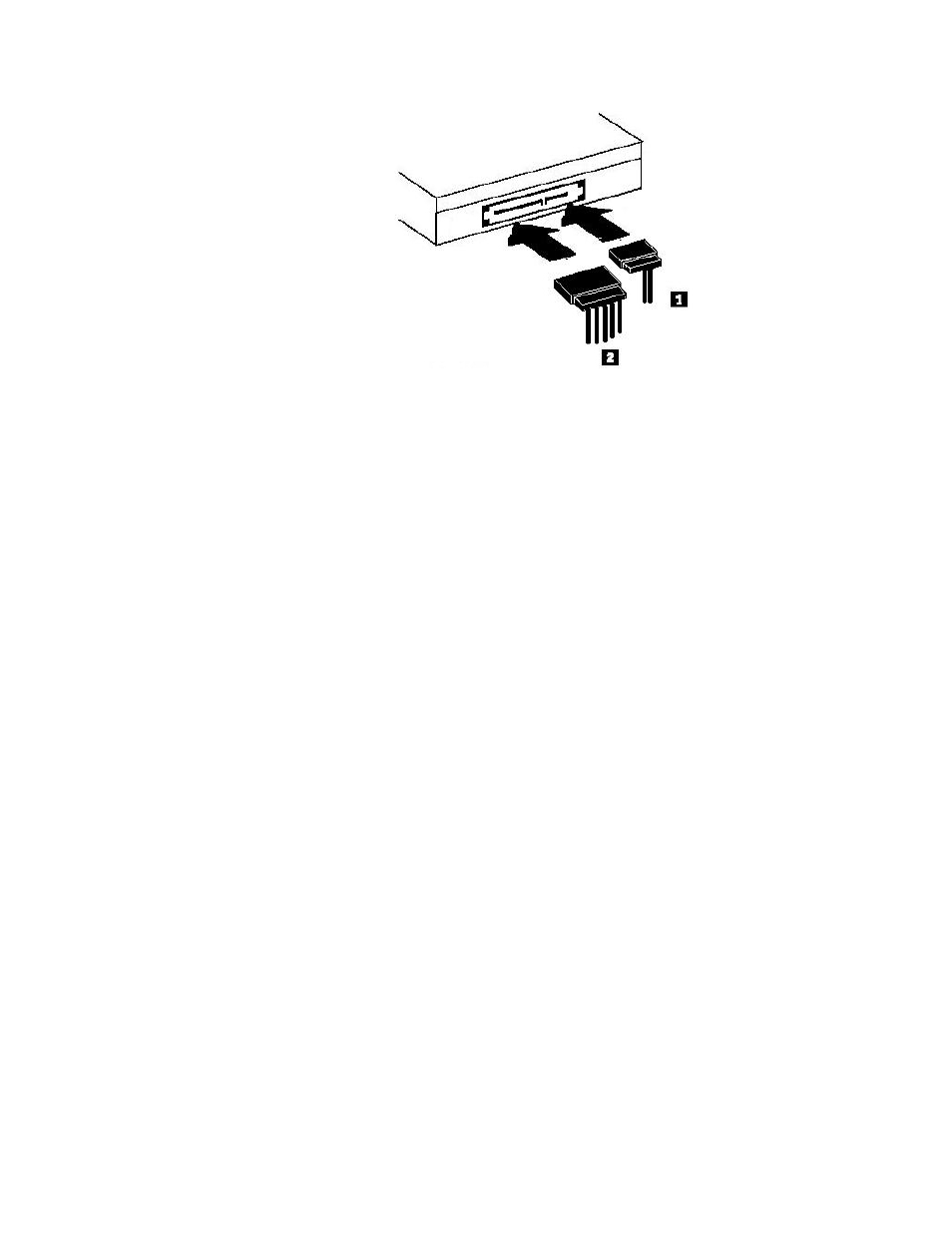

To

attach

the

cables

to

the

drive,

do

the

following:

1.

Attach

a

7-pin

Serial

ATA

data

cable

connector

1

to

the

Serial

connector

on

the

drive.

2.

Attach

a

15-pin

power

cable

2

to

the

power

connector

on

the

drive.

If

your

computer

has

more

than

two

Serial

ATA

connectors

on

the

main

board,

use

the

second

or

third

connector

to

connect

the

drive.

For

more

information

on

detailed

hardware

installation,

refer

to

your

system

documentation.

Be

sure

that

the

cables

will

not

be

pinched

or

crowded

by

the

computer

cover

and

that

all

other

cable

and

power

connections

are

secure.
