5
GETTING ACQUAINTED
■

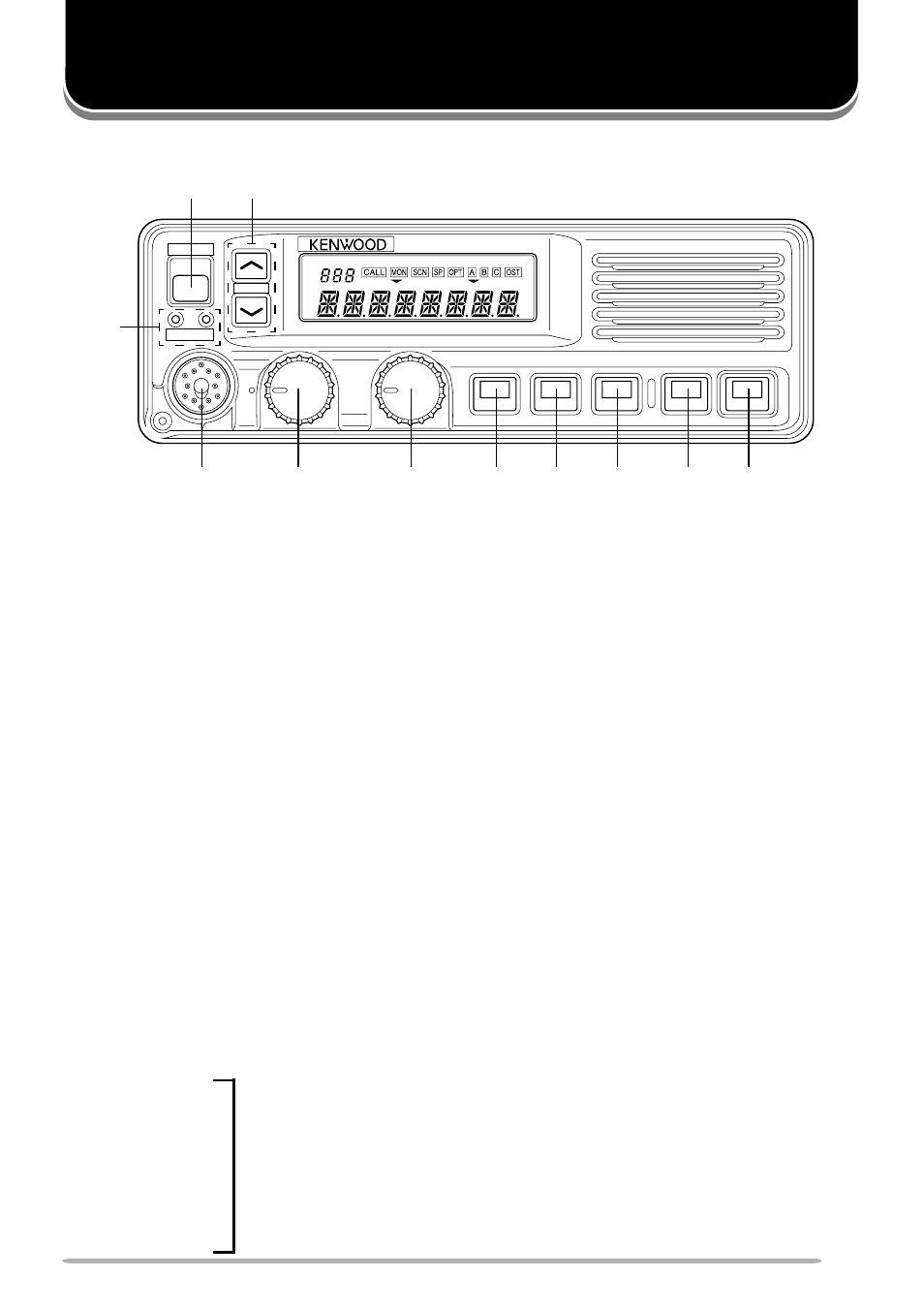

Basic Front Panel (KCH-10)
q
q
q
q
q POWER switch
Press to switch the power ON (or OFF).
w
w
w
w
w GRP (Group) keys
Press GRP Up to increase the group selection by one step. Press GRP
Down to decrease the group selection by one step. (See page 11 for
other programmable functions for these keys.)
e
e
e
e
e TX, BUSY indicators
The TX (red) indicator lights while transmitting. The BUSY (green)
indicator lights while the selected channel is in use.
r
r
r
r
r Microphone connector
Insert the microphone plug into this connector and secure it using the
attached screw. To remove the microphone, release the screw, then turn
the connector clockwise until it becomes free.
t
t
t
t
t VOL (Volume) control
Turn clockwise to increase the volume, and counterclockwise to decrease
it.
y
y
y
y
y CH (Channel) control
Turn clockwise to increase the channel selection (default setting), and
counterclockwise to decrease it. (Alternatively, this control can be
programmed with group up/down.)
u
u
u
u
u PF1 key
i
i
i
i
i PF2 key
o
o
o
o
o PF3 key
!0
!0
!0
!0
!0 PF4 key
!1
!1
!1
!1
!1 PF5 key
Press these PF (programmable function) keys to activate
their programmable functions {page 11}. The default is set
as No Function.
