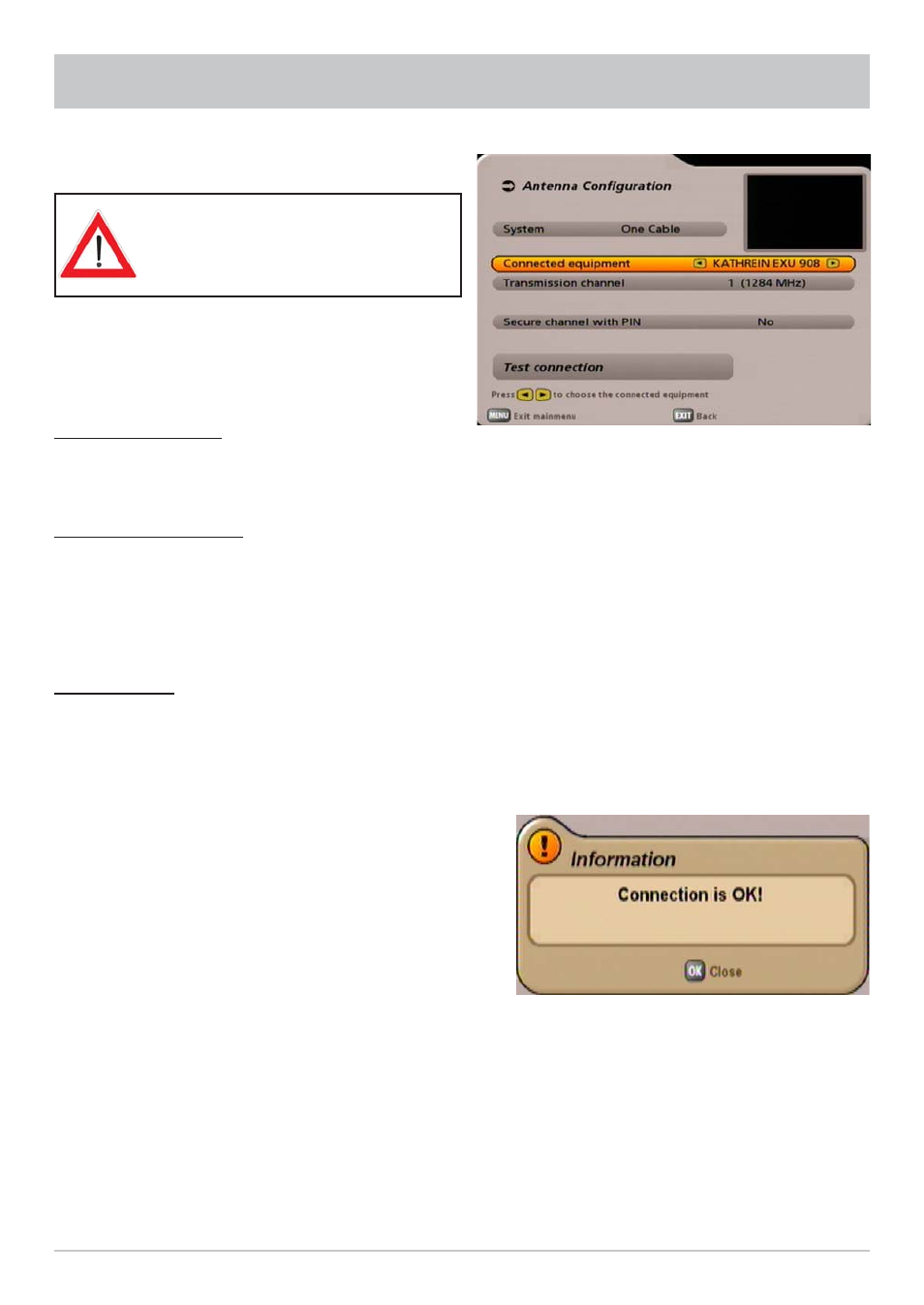

FIRST INSTALLATION: Single-cable system (Manual)
Selection “EXU 908”
Transmission channel
Use the buttons to select a free available transmission channel. A maximum of eight transmission
channels are available (1284, 1400, 1516, 1632, 1748, 1864, 1980 and 2096 MHz).
Secure channel with PIN
The EXU 908 single-cable matrix allows the transmission frequency to be protected by inputting a PIN.
No other receiver can then use that transmission frequency unless the PIN is input.
Use the buttons to select the setting “Yes”. A line with the text “Password PIN” is then displayed.
Press the buttons to select this line. You can now use the numeric pad to input a PIN (0-255).
Test connection
When you have set a free transmission channel, press the
buttons to switch to the “Test connection”
selection fi eld and press the button. The receiver now tests whether a connection to the single-cable
system can be established or not. As soon as the receiver has established a connection to the single-cable
system, you will see the following display:
Press the button to acknowledge this display.
Then press the button. You will be asked whether
you wish to save the changes. Use the buttons
to select “Yes, save changes” and confi rm by pressing
the button. Now press the
!
(green) button.
The receiver will automatically display the selection menu for the channel search. Continue by selecting
the item (Execute Channel search).
If no connection to the single-cable system could be established, you will receive the message
“Registration was abortive!”.
Check your settings and if necessary call for expert help.
When the “EXU 908” single-cable
matrix is being used, it is essential
that the LNB is set to “Universal”!
