15
FIRST INSTALLATION: General
- Y/C – S-Video signal (luminance/chrominance)
Press the
!
(green) button to move to the next menu.

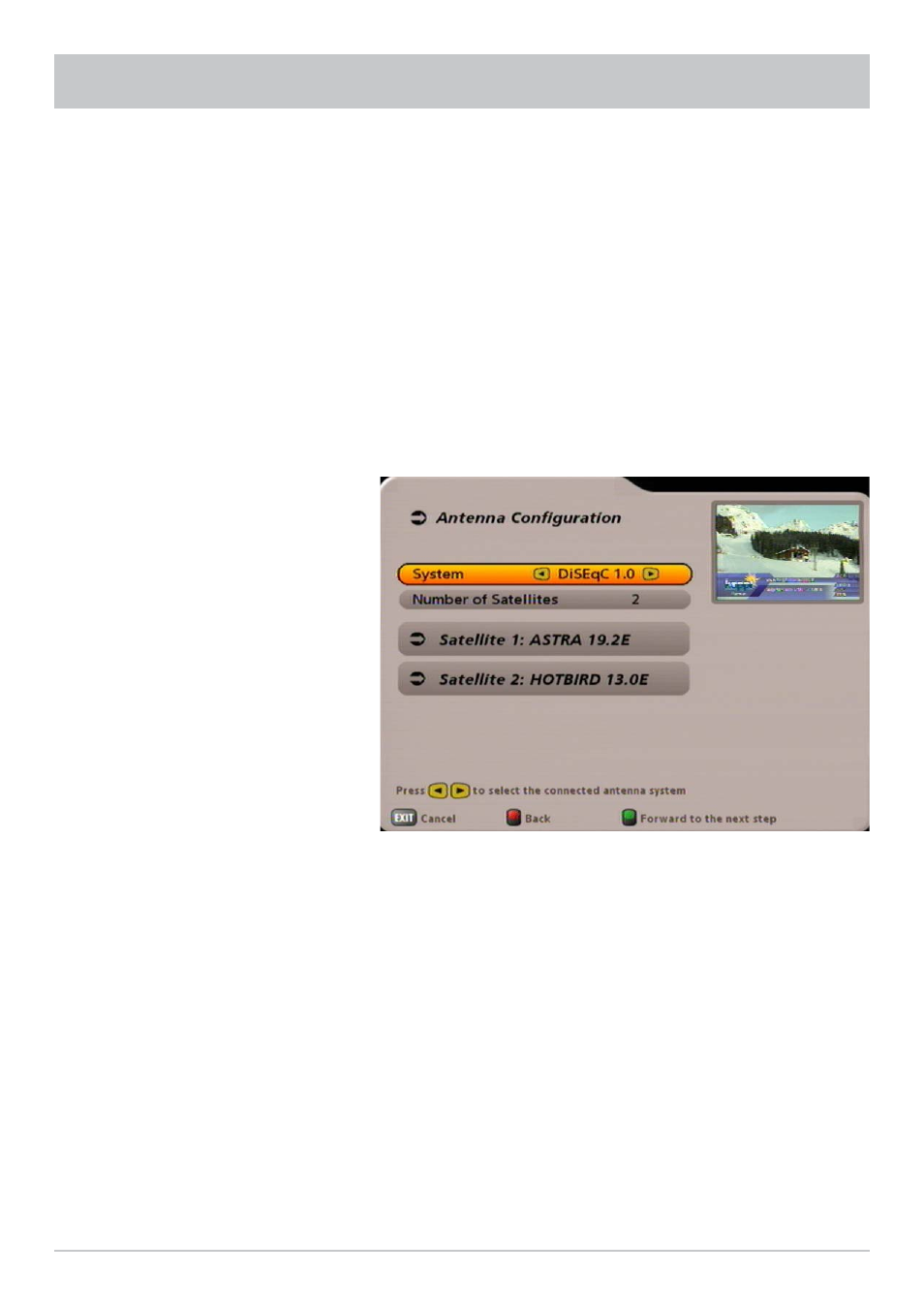

The following display appears:
System
Select the setting here to match your reception system using the buttons. You have the following
options:
- DiSEqC™1.0
- One
Cable
- Simple LNB
If your reception system is DiSEqC™-capable, at “System” select “DiSEqC™1.0” (allows switch-over
from receiving one satellite to receiving another one). If your reception system is not DiSEqC™-capable,
select the setting “Simple LNB”. If your receiver is connected to a single-cable system, select “One Cable”.
Press the button to move to the next menu item.
Continue with the relevant section of First Installation
Picture format
Here you select the type of screen display, depending on the setting of your TV format:
- TV format “4:3”: Pan & Scan or Letterbox
- TV format “16:9”: Always 16:9 or automatic
TV-SCART-Output
Select the type of video signal at the TV Scart socket here. Select the signal that your TV set can process.
- CVBS – Colour Video Baseband Signal
- RGB – Red/Green/Blue signal or
