Cintel International Ltd. diTTo User Guide
Issue 3 23

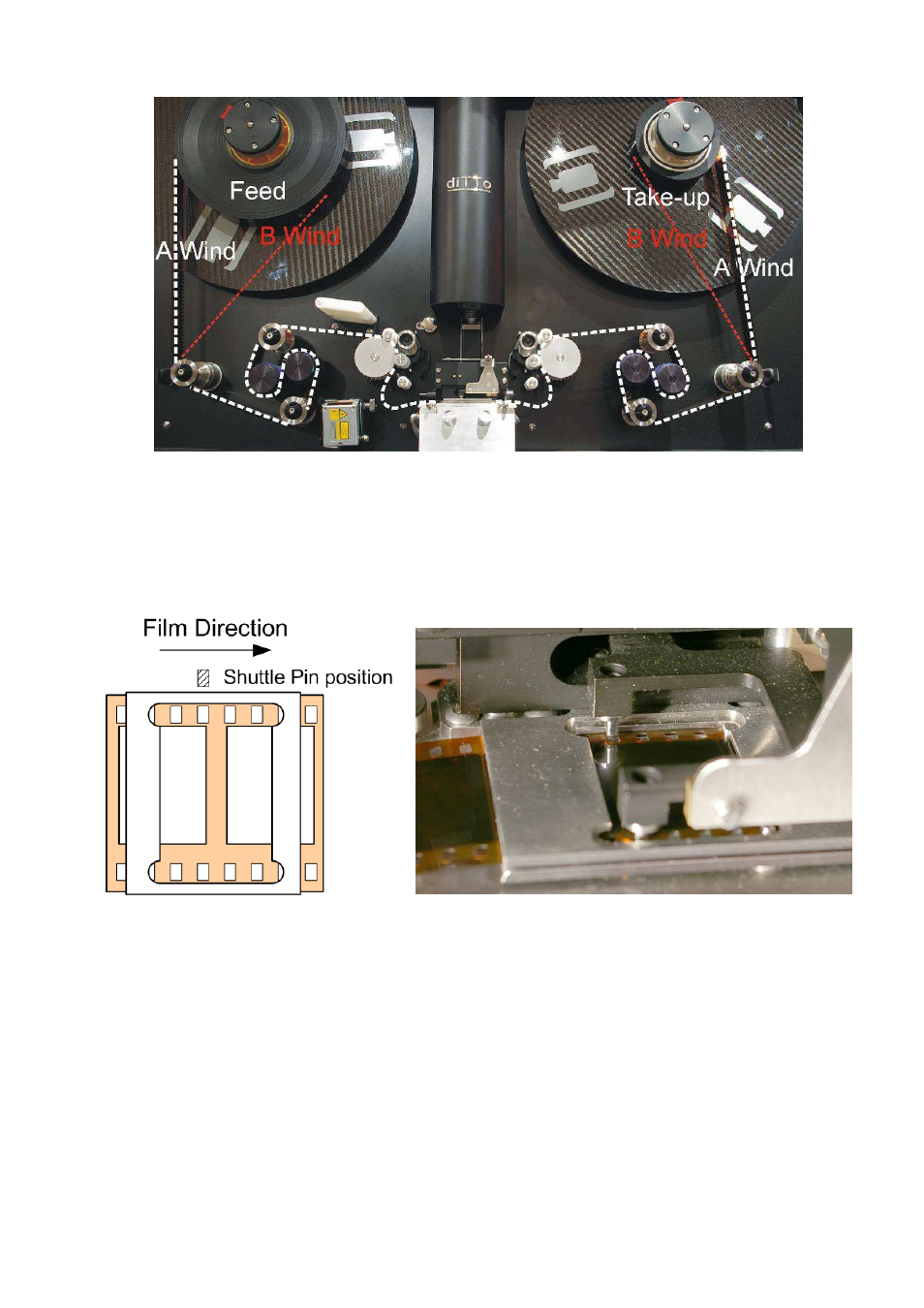

Fig 39 Final lacing path
4. Lace Feed sprocket. In a similar way to the take-up sprocket (See Fig 42)
5
Centre the film loop between the sprockets and align the film frame bar in the centre of the aperture plate just to
the right of the shuttle pins (as in Fig 40/41 below) Release the gate lace latch (Fig 36) gently lowering the shuttle
pins into the film’s perforations. Lightly rock the film to verify that the pins are fully located in the film perforation.
(See Gate Lacing below for more details)
Fig 40 Shuttle pin position Fig 41 Shuttle pins over film
