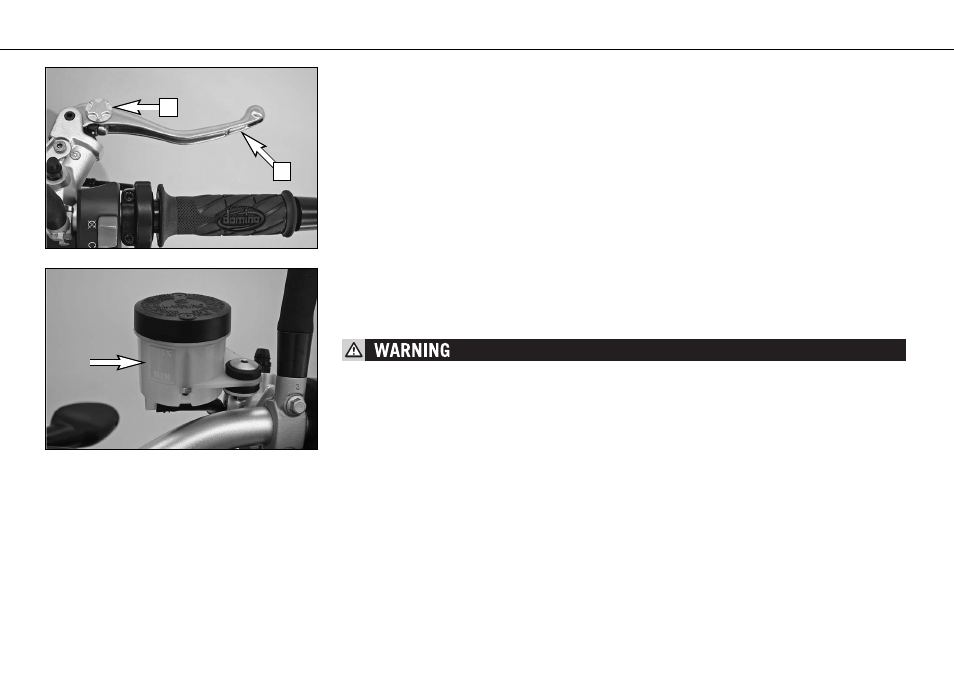

MAINTENANCE WORK ON CHASSIS AND ENGINE
»
43
Changing the basic position of the handbrake lever
The adjusting screw
[1] allows you to change the basic position of the handbrake lever [2].
Press the handbrake lever's outer end forward, and, at the same time, turn the adjusting
screw.
Checking the front brake fluid level
The brake fluid reservoir for the front brake is located on the right side of the handlebar and
has a "MIN" and a "MAX" mark. The brake fluid level may not fall below the "MIN" mark
when the vehicle is parked in a vertical position.
– If the brake fluid level drops below the minimum either the brake system has a leak or
the brake pads are completely worn down. In this case, consult an authorized KTM dealer
immediately.
– Have the brake fluid changed at an authorized KTM workshop every 2 years.
